Specialized LEVO 2022 - Adjustable Geometry Guide

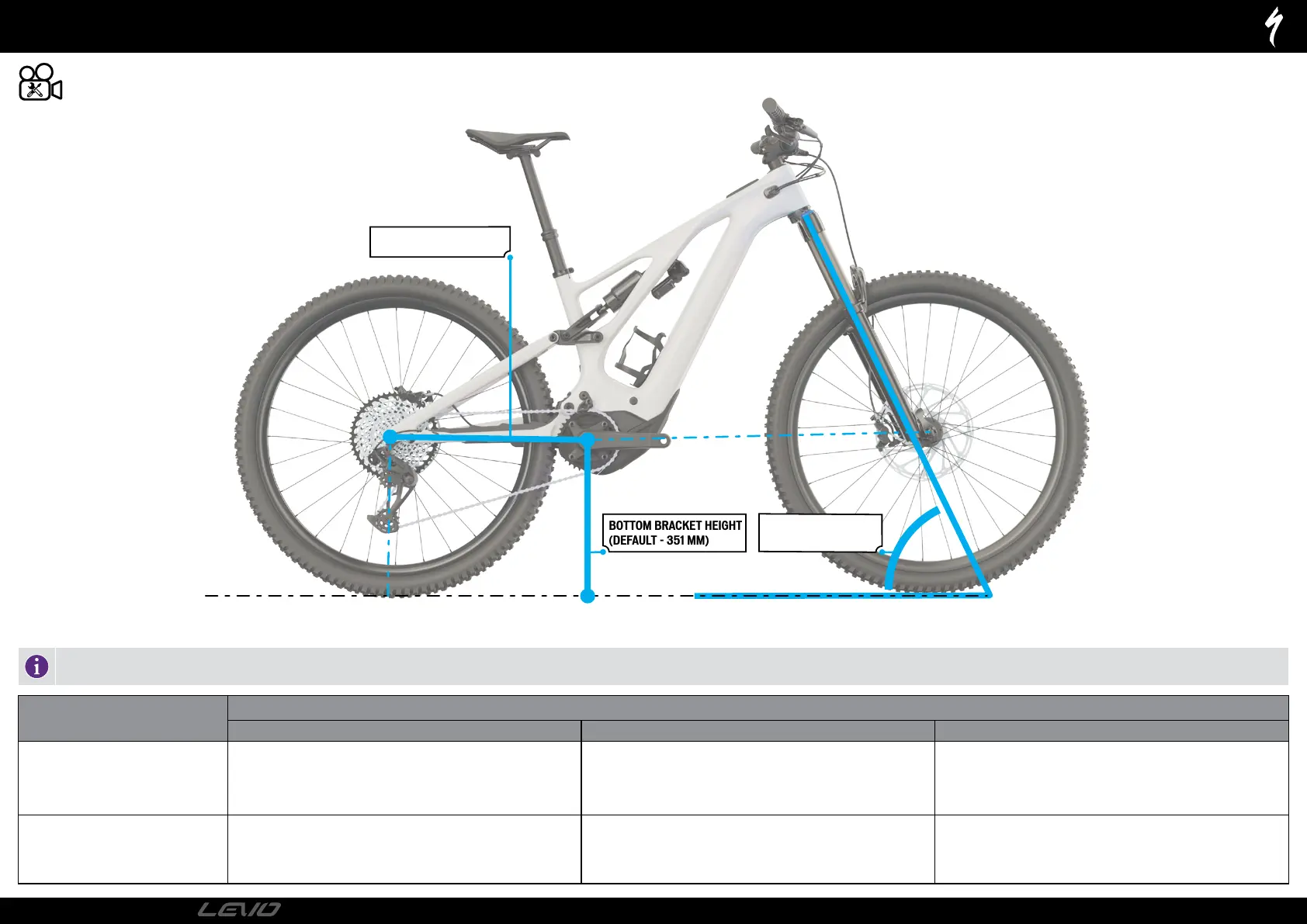

BOTTOM BRACKET HEIGHT
(DEFAULT - 351 MM)
HEAD TUBE ANGLE
(DEFAULT S2-6 - 64.5°)
CHAINSTAY LENGTH
(DEFAULT HIGH = 441 MM)
ADJUSTABLE GEOMETRY GUIDE
This table reflects head angle values and bottom bracket heights, as a result of different flip chip/head set cup(s) configurations. Note that these are rounded values which vary slightly with frame size.
FLIP CHIP @ HORST LINK /DROPOUT
HEADSET CUP
NEUTRAL (+) 1° (-) 1°
High / Short (WB)
Head Tube Angle:
Approx. 64.5° (Default)
Bottom Bracket Height:
Approx. 350 Mm (Default)
Head Tube Angle:
Approx. 65.5°
Bottom Bracket Height:
Approx. 352 Mm
Head Tube Angle:
Approx. 63.5°
Bottom Bracket Height:
Approx. 348 Mm
Low / Long (WB) (- 0.5° Head Tube Angle)
Head Tube Angle:
Approx. 64° (Default)
Bottom Bracket Height:
Approx. 343 Mm (Default)
Head Tube Angle:
Approx. 65.5°
Bottom Bracket Height:
Approx. 352 Mm
Head Tube Angle:
Approx. 63.5°
Bottom Bracket Height:
Approx. 348 Mm
