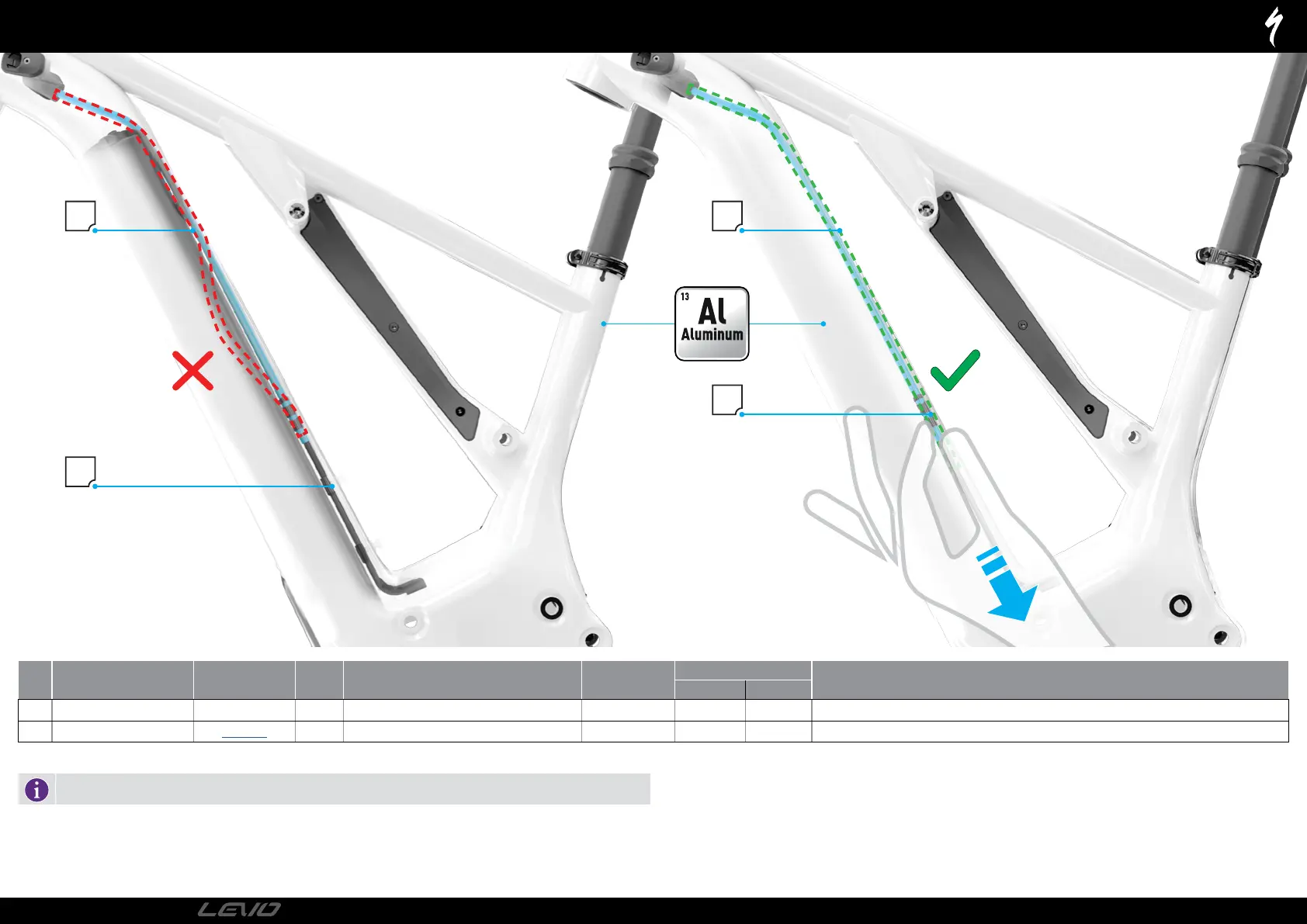

DROPPER HOUSING GUIDE ALIGNMENT- ALLOY FRAME
Alloy frames: If the housing guide tube is loose in the down tube it could cause the battery to snag.
Always ensure the housing guide tube runs parallel in the down tube and is tight, if not pull the excess guide tube through the top of the
dropper housing mount.
NOTE: For ease of assembly the dropper housing guide (B) may need to be removed.
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Nylon Guide Tube Different lengths per size N/A N/A N/A S1 - 385 mm | S2 - 395 mm | S3 - 410 mm | S4 - 430 mm | S5 - 465 mm | S6 - 480 mm
B Dropper Guide
S216500005 1 N/A N/A N/A
