A
I
E
D B
I B A
F I I
3
2
5
4
1
6
CE D

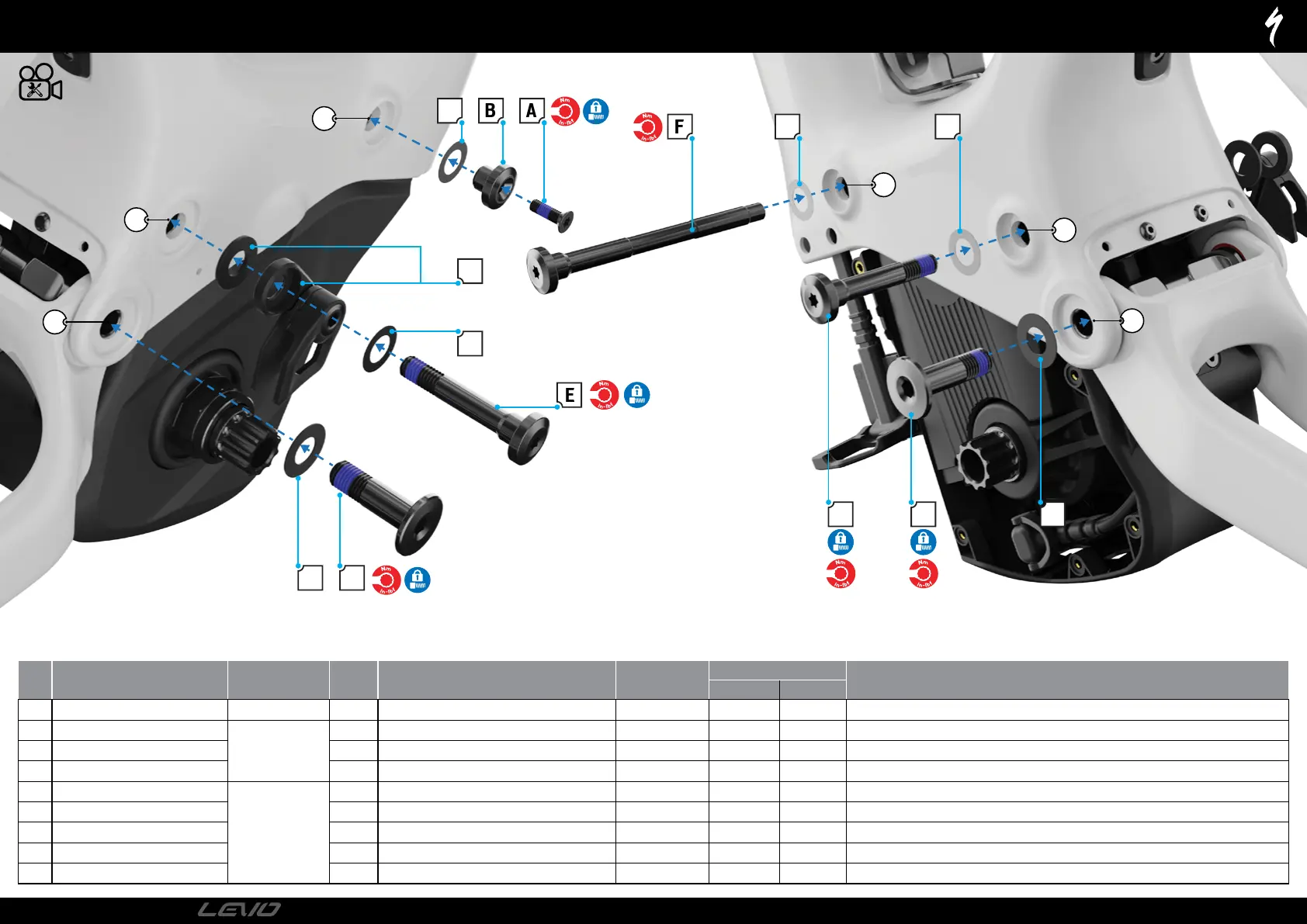

MOTOR BOLTS
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Chain Guide S211200004 1 N/A N/A
B DS - Main Pivot Bolt
Part of Suspension
Bolt Kit
S210500012
2 M10 mm x 35 mm x I .25 mm P - S Steel 24 210 Custom left-hand thread
C NDS - Main Pivot Bolt 2 M10 mm x 35 mm x I .25 mm P - S Steel 24 210 Custom right-hand thread
D Main Pivot Washers 2 10.6 mm ID x 21 mm OD x 0.5 THK - S Steel N/A N/A
E Center Mounting Bolt
Part of Motor
Mounting Bolt Kit
S210500010
2 M8 x 50 mm x 1.25 mm P - S Steel 18 160
F NDS Front Motor Axle Bolt 1 M8 x 100 mm - S Steel 6 53
G DS Front Motor Bolt 1 M5 x 16 mm - S Steel 6 53
H DS Front Motor Spacer 1 7.4 mm ID x 10.2 mm OD x 12.5 mm - Aluminium N/A N/A
I Motor Bolt Mounting Washer 4 10.6 mm ID X 18 mm OD x 0.2 THK - S Steel N/A N/A
PAGE 13
2022
TECHNICAL GUIDE
