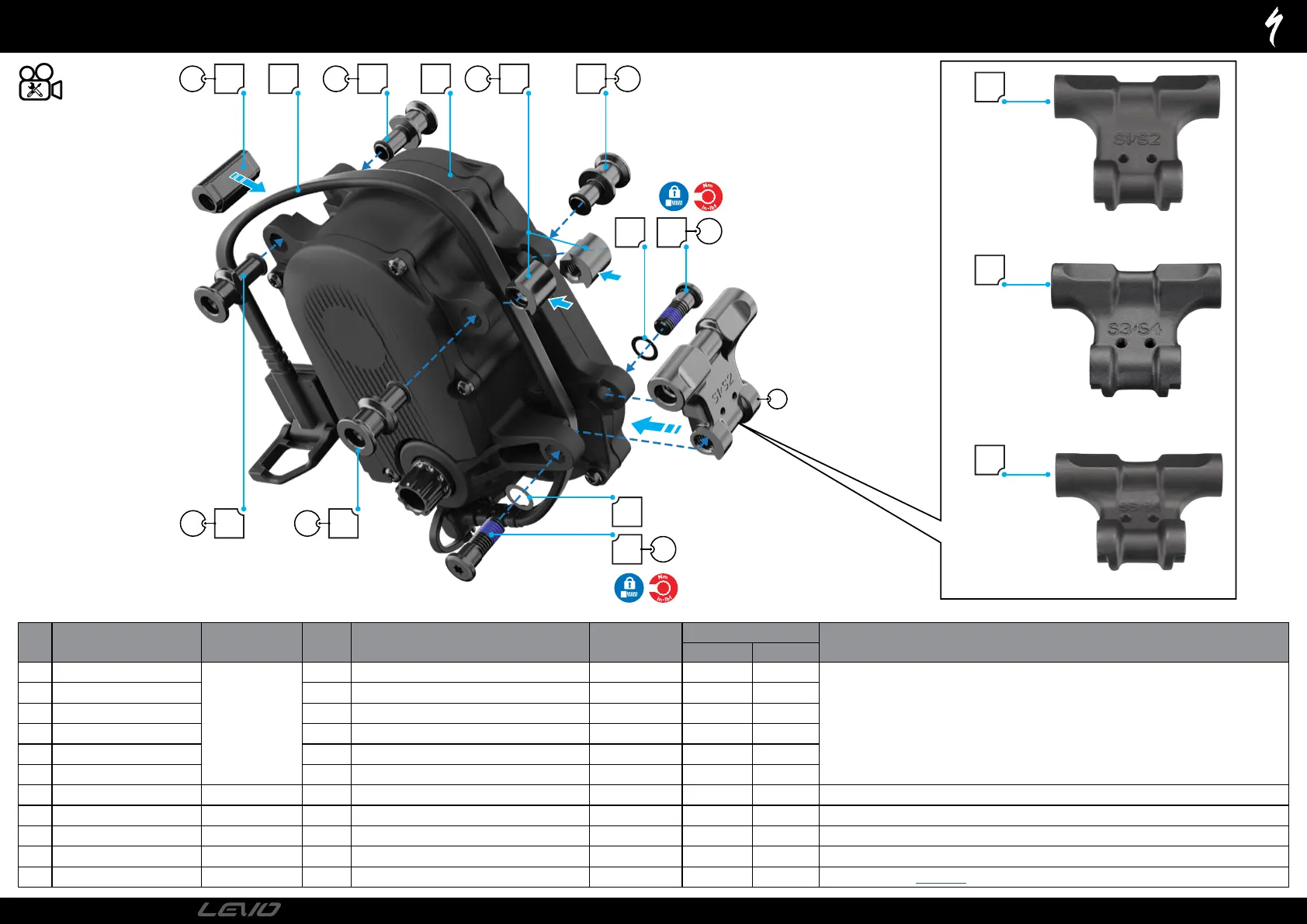

Specialized LEVO 2022 - Motor Mounting Hardware

A K J
B D
E
F
B DC
F E
I
H
G
1
2 4
6
2
6
4
5
3
S1/S2
S3/S4
S5/S6
MOTOR MOUNTING HARDWARE
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Motor Wedge
Part Of Motor
Mounting Bolt Kit
S210500010
1 N/A N/A N/A
 This mounting hardware is reusable and does not need to be replaced if sending out a new
motor.
 Motor battery cable must run under the custom nut in the center mount and the carrier.
B Custom Spacer Nylon 2 8.2 mm ID x 20 mm OD x 17.6 mm W - Nylon N/A N/A N/A
C Custom Motor Nut 2 M8 x 1.25 mm P N/A N/A N/A
D Custom Spacer 2 8.2 mm ID x 20 mm OD X 17.6 mm W - Aluminium N/A N/A N/A
E Motor Carrier Mounting Bolt 2 M10 x 28 mm x 1.5 mm P T30 Torx 18 160
F Motor Carrier Mounting washer 2 10.6 mm ID x 15 mm OD x 0.2 mm THK - S Steel N/A N/A N/A
G Motor Carrier S1 - S2 S219900031 1 N/A N/A N/A For use on S1 and S2 Frames Only
H Motor Carrier S3 - S4 S219900032 1 N/A N/A N/A For use on S3 and S4 Frames Only
I Motor Carrier S5 - S6 S219900033 1 N/A N/A N/A For use on S5 and S6 Frames Only
J Motor S196800005 1 Specialized 2.2, Custom RX trail tuned N/A N/A N/A This is a shared motor part# between Levo Gen. 2 and Gen. 3.
K Main Harness S216800018 1 N/A N/A N/A
Spare lever available S216800045
PAGE 10
2022
TECHNICAL GUIDE
