MOTOR COVER
BC
B
AC
FLEX
2
2
1
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A DS Motor Cover mounting screws
Part Of Motor
Cover Kit
S219900034
2 Countersunk Bolt - M4 x 10 mm x 0.7 mm p - S-Steel 2.5 mm hex 2 18
B DS Motor Cover mounting screws 2 Countersunk Bolt - M4 x 10 mm x 0.7 mm p - S-Steel 2.5 mm hex 2 18
C DS Motor Cover 1 N/A N/A N/A

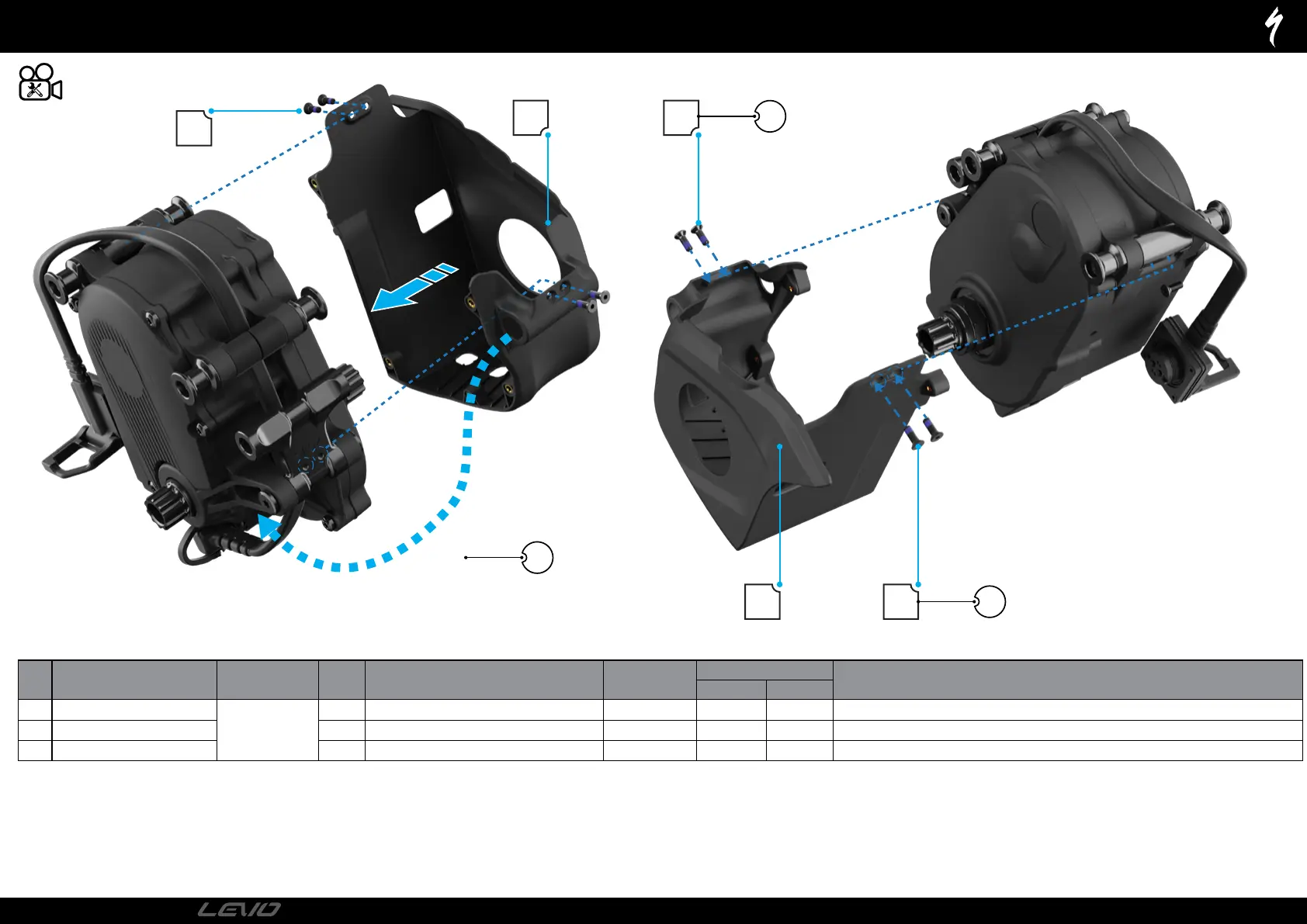

DRIVE SIDE MOTOR COVER ASSEMBLY
 1: Flex the drive side motor cover (C) over the motor and align the cover with the forward and rear motor cover mounting screw holes on the
motor mounts.
 2: Insert the motor cover bolts (A-B) and torque to specification.
