Specialized LEVO 2022 - S P E E D S E N S O R C a B L

Speed sensor
A CB
SPEED SENSOR CABLE
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Speed Sensor Cable S216800025 1 N/A N/A N/A
B Speed Sensor Grommet
S216800021
1 N/A N/A N/A
C Speed Sensor Bolt 1 M4 x 8 mm x 0.7mm p 3 mm hex 1 9

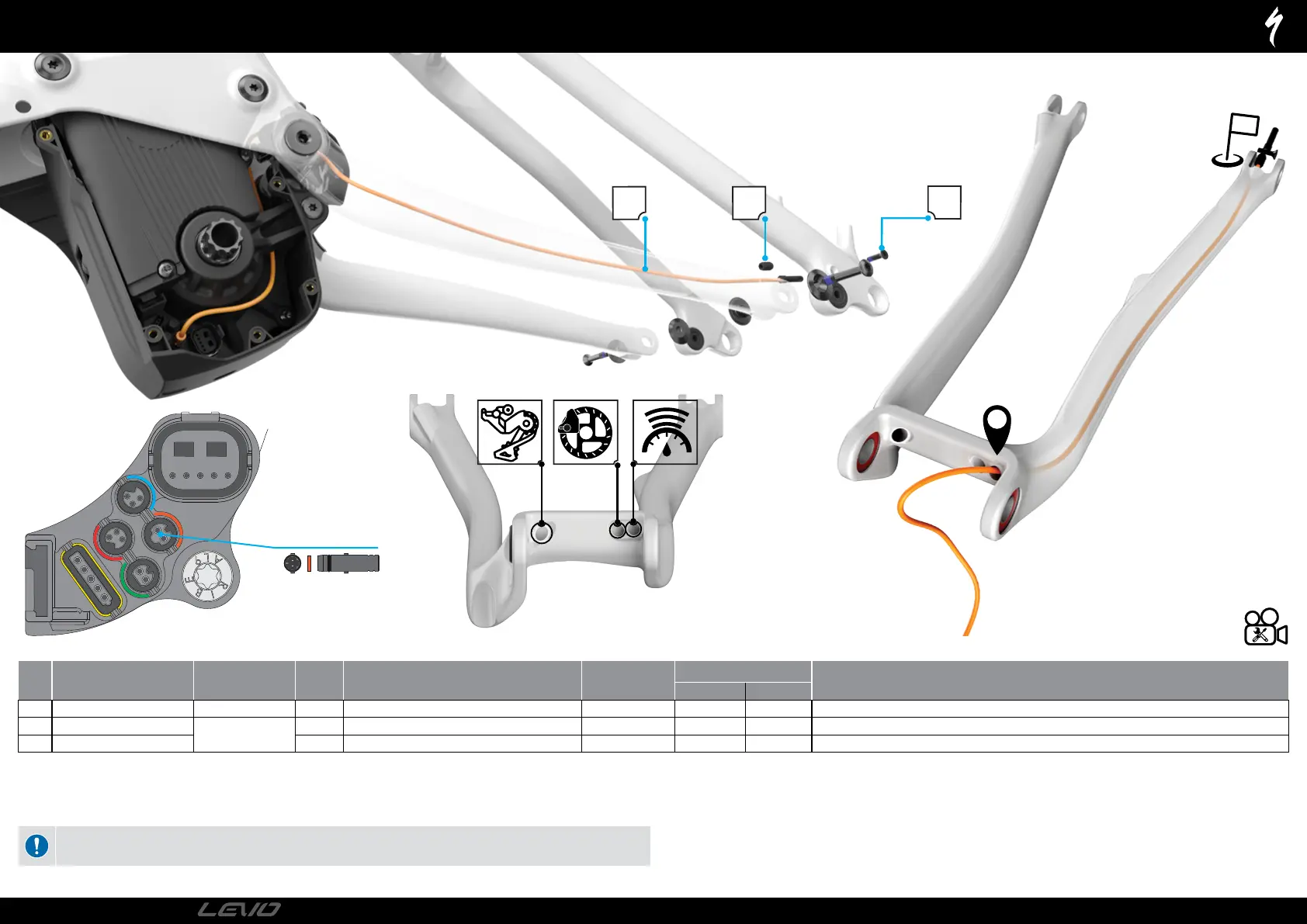

 Thread the speed sensor cable from the main pivot end of the chainstay through the outer hole on the non-drive side, exiting the chainstay
behind the horst pivot.
 When assembling the rear triangle to the front triangle, thread the speed sensor cable through the motor area and connect the speed sensor
into the port on the motor.
CAUTION! When assembling the horst pivot, make sure not to pinch the speed sensor cable as this could damage the speed
sensor causing it to malfunction.
