Specialized LEVO 2022 - B at T E R y E X P a N D E

LABEL
SIDE
B
C
A
D
1
D
E
3
1
2
4
A

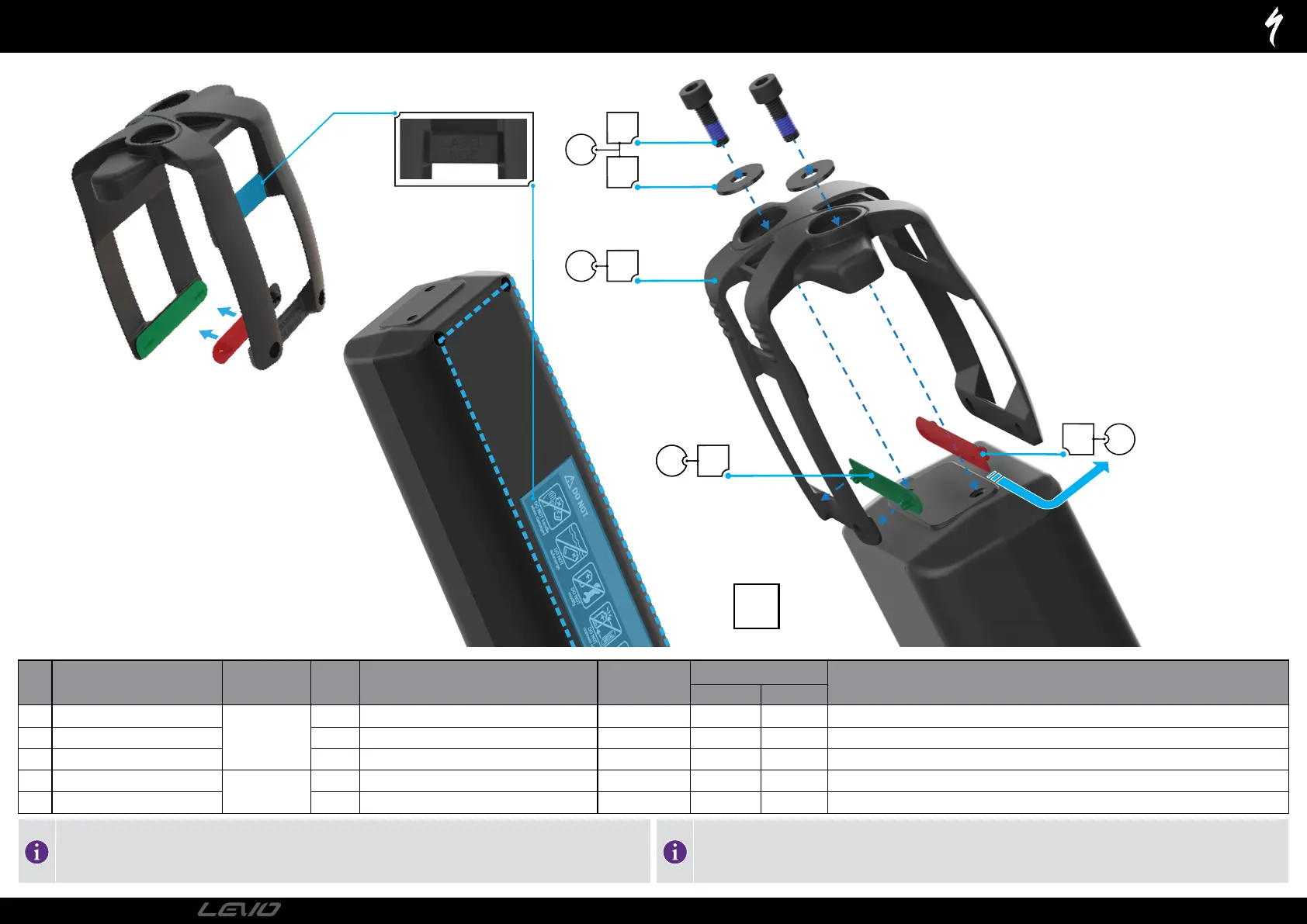

BATTERY EXPANDER
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Battery Expander
S214200032
2 N/A N/A N/A
B Battery Expander Bolt 2
M5 x 14 mm x 0.8 mm alu 
4 mm hex 4 35
C Battery Expander Washer 1
M5 x 5.2 mm ID x15 mm OD x 1.25 thk alu 
N/A N/A N/A
D Battery Expander Spacer Lower
S224200009
1 N/A N/A N/A SEE BELOW
E Battery Expander Spacer Upper 1 N/A N/A N/A SEE BELOW
The spacers (D & E) are used to ensure a good fit inside the frame. The Levo is supplied standard with the lower spacer (D)
installed in the factory. Frame thicknesses may vary, and the second spacer (E) can be used to ensure a tighter fit in the
frame. The upper spacer (E) can be found in the small parts box supplied with your bicycle.
Make sure to reinstall the expander correctly positioned with the lable side of the expander on the lable side of the battery.
PAGE
33
2022
TECHNICAL GUIDE
