Specialized LEVO 2022 - C H a I N S Tay - G U I D E T U B E a S S E M B Ly

A
NYLON ICR TUBE
30
sec
<
3
4
3
1
2
CHAINSTAY - GUIDE TUBE ASSEMBLY: CARBON FRAME
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
Nm in-lbf
A
Chainstay Carbon (Gloss Carbon)
S211500003
1 N/A N/A N/A
B
Bearing
2
12 mm ID x 24 mm OD x 6 mm W,DBL SLD
N/A N/A N/A

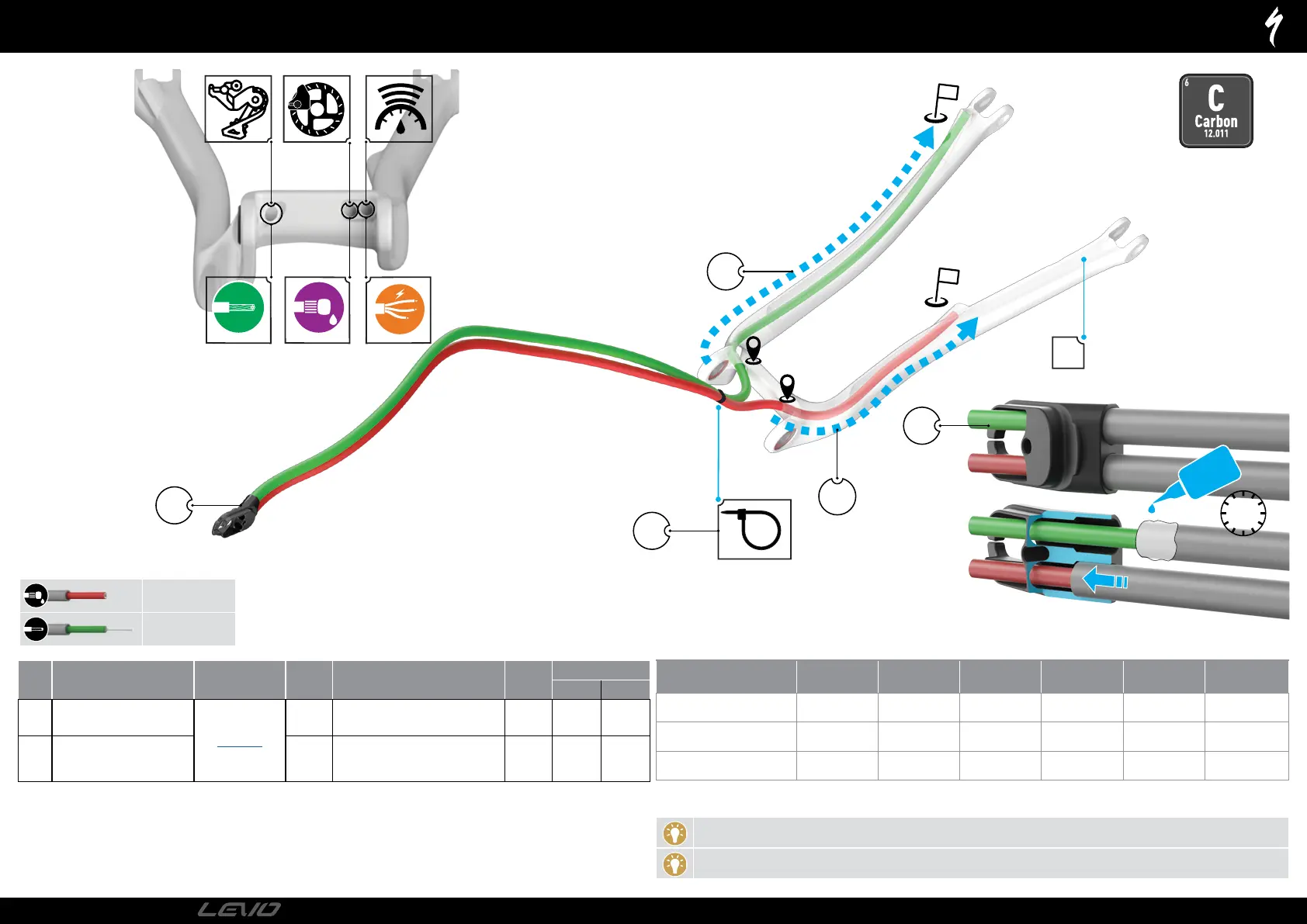

CARBON FRAME CHAINSTAY GUIDE TUBE ASSEMBLY PROCESS:
Before assembling the rear triangle, insert the guide tubes for the rear brake and the derailleur.
 1: Insert the derailleur guide tube through the ICR port located in the drive side of the chainstay and route it to the rear port on the chainstay.
 2: Insert the brake guide tube through the inner ICR port located in the non-drive side of the chainstay and route it to the mid port on the
chainstay.
 3: Glue one end of the guide tubes into the ICR guide base with a small drop of glue (Loctite 416). Briefly allow the glue to spread around the
guide tube, then quickly insert them into the ICR guide hole.
TECH TIP: Loctite 416 has a 20-30 second work time. Ensure the guide tube is completely inserted into the ICR guide. Failure
to do so will cause housings to snag.
TECH TIP: Secure the guide tubes 10 cm from the ICR ports on the chainstay with a cable tie.
GUIDE TUBE LENGTH S1 S2 S3 S4 S5 S6
REAR DERAILLEUER TUBE 1070 mm 1105 mm 1125 mm 1145 mm 1190 mm 1205 mm
REAR BRAKE TUBE 925 mm 960 mm 980 mm 1000 mm 1045 mm 1060 mm
DROPPER GUIDE TUBE 385 mm 395 mm 410 mm 430 mm 465 mm 480 mm
