Specialized LEVO 2022 - S E at P O S T C L a M

B
A
2
1
1
MAX

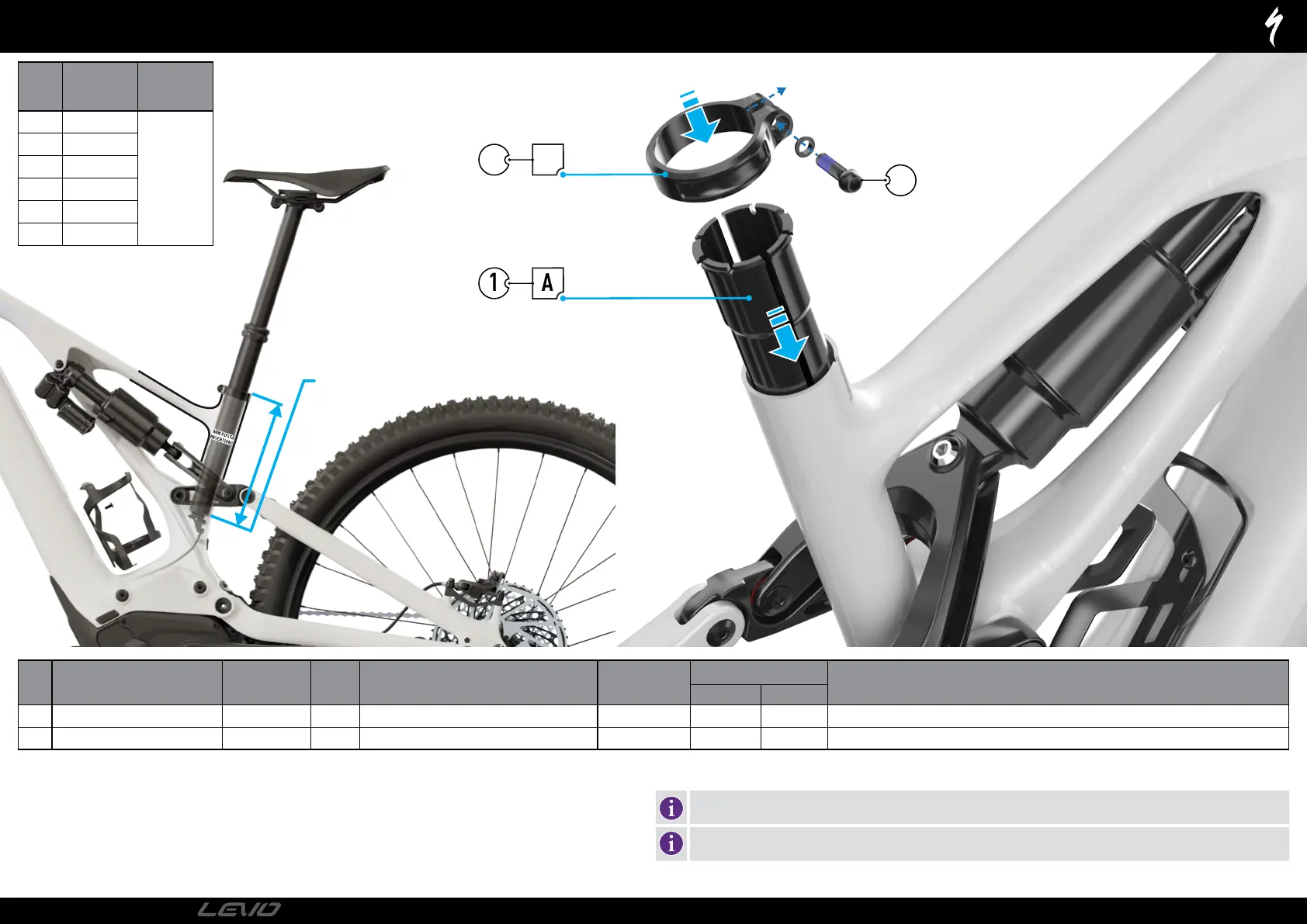

# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
Seatpost Shim S174900001 1 34.9 mm / 30.9 mm Seatpost Shim N/A N/A N/A
Seatpost Collar S184700004 1 38.6 mm Seatpost Collar 4 mm 6.2 55
Align with the bolt facing forwards
SEATPOST MINIMUM INSERTION:
Both the frame and seatpost have minimum insertion requirements. In addition, the frame has a maximum insertion requirement to prevent
damage to the frame and seatpost.
 MINIMUM INSERTION: The seatpost must be inserted into the frame deep enough so the minimum insertion/maximum extension (min/max)
mark on the seatpost is not visible. The frame requires a minimum of 100 mm of insertion.
 MAXIMUM INSERTION: The seat tube is reamed to a specified maximum insertion depth for each frame size. This ream depth limits the
insertion depth of the seatpost. Please refer to the table in Fig.6.1.
 If the desired seat height cannot be achieved within the minimum and maximum insertion requirements, the seatpost should be replaced for a
shorter or longer one.
The Levo is equipped with a seat post stopper located on the rear of the seat tube. The stopper is designed to stop the seatpost
from being inserted too far and impacting the motor.
The seat tube is designed for a 34.9 mm post but a smaller diameter seatpost can be used with a shim.
SIZE
MAX
INSERTION
MIN
INSERTION
S1 210 mm
100 mm
S2 220 mm
S3 240 mm
S4 260 mm
S5 280 mm
S6 295 mm
SEATPOST CLAMP
PAGE 37
