Specialized LEVO 2022 - H E a D S E

0°
+/-1°
-1°
+1°
H
A
B
C
D
H
G
E
F
I

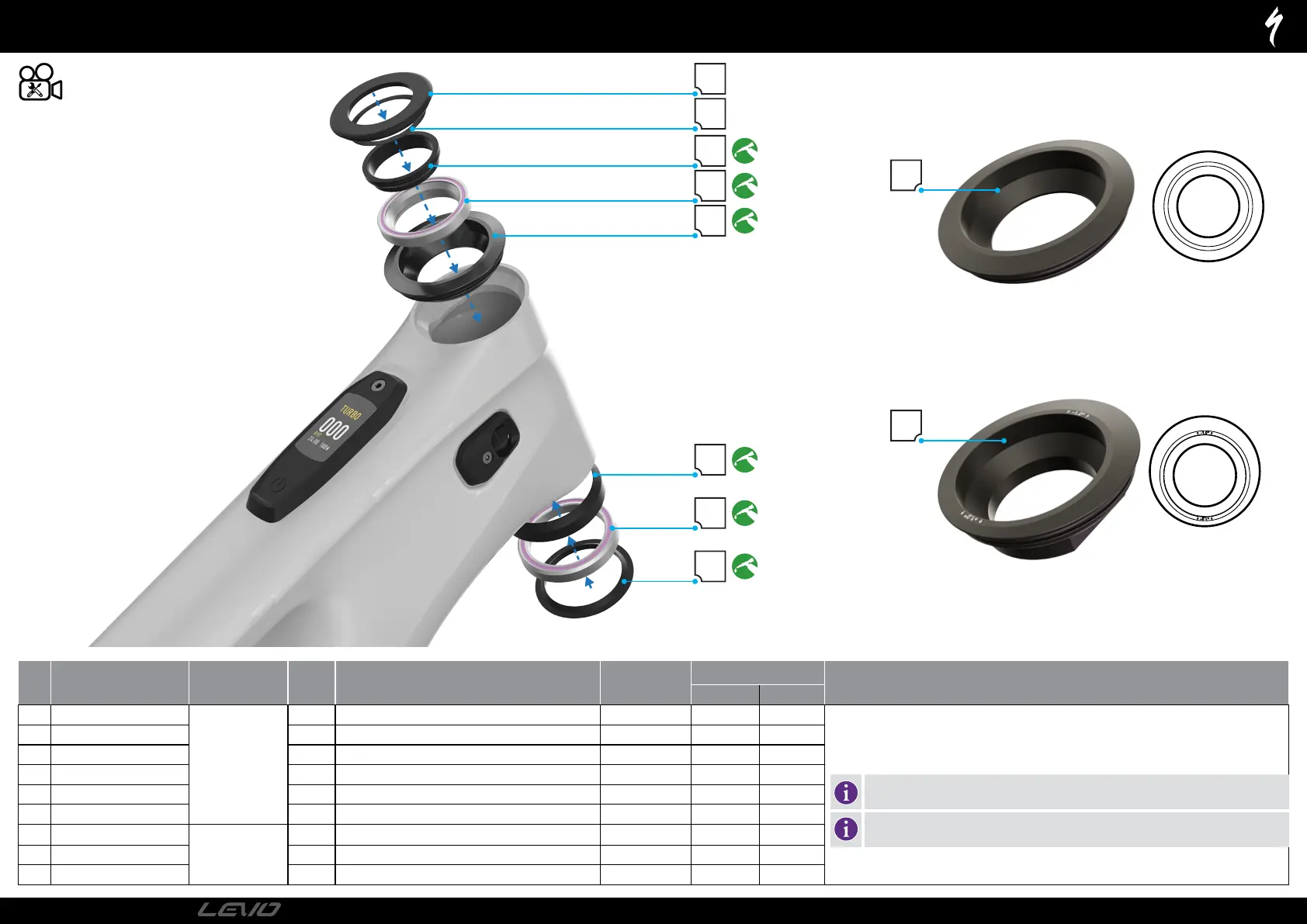

HEADSET
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Headset Cap
S182500005
1 N/A N/A N/A
Certain Levo models are equipped with adjustable headset cups. The bike ships with the “zero”
offset cup (A) and a +/- 1-degree headset cup (B) ships in the small parts box.
Make sure the head tube and headset cup are free of dirt and debris when changing the
upper cup angle. Lubricate all the parts with high-quality waterproof grease.
The bottom headset cup is universal for all headset cups. The cup has a spherical
interface with the head tube and will move with the angle of the steerer tube.
B Cone Spacer 1 Spring Steel N/A N/A N/A
B Compression Ring 1 N/A N/A N/A
D Upper Bearing 1 1 1/8” (42 mm x 30.5 x 8 mm, 45°) N/A N/A N/A
E Lower Bearing 1 1.5” (52 mm x 40 x 7 mm, 45°) N/A N/A N/A
F Crown Race 1 N/A N/A N/A
G Lower Bearing Cup
S212500015
1 Spherical Adapter 1.5” 45° - 54 mm OD x 52 mm ID N/A N/A N/A
H Upper Zero Offset Bearing Cup 1 Headtube Angle Adjust 0° | 1-1/8” - 41.8 mm ID, 46 X 52.5 N/A N/A N/A
I Upper +/-1° Offset Bearing Cup 1 Headtube Angle Adjust 1° | 1-1/8” - 41.8 mm ID, 46 X 52.5 N/A N/A N/A
PAGE 21
2022
TECHNICAL GUIDE
