Specialized LEVO 2022 - M U D F L a

B
A
C

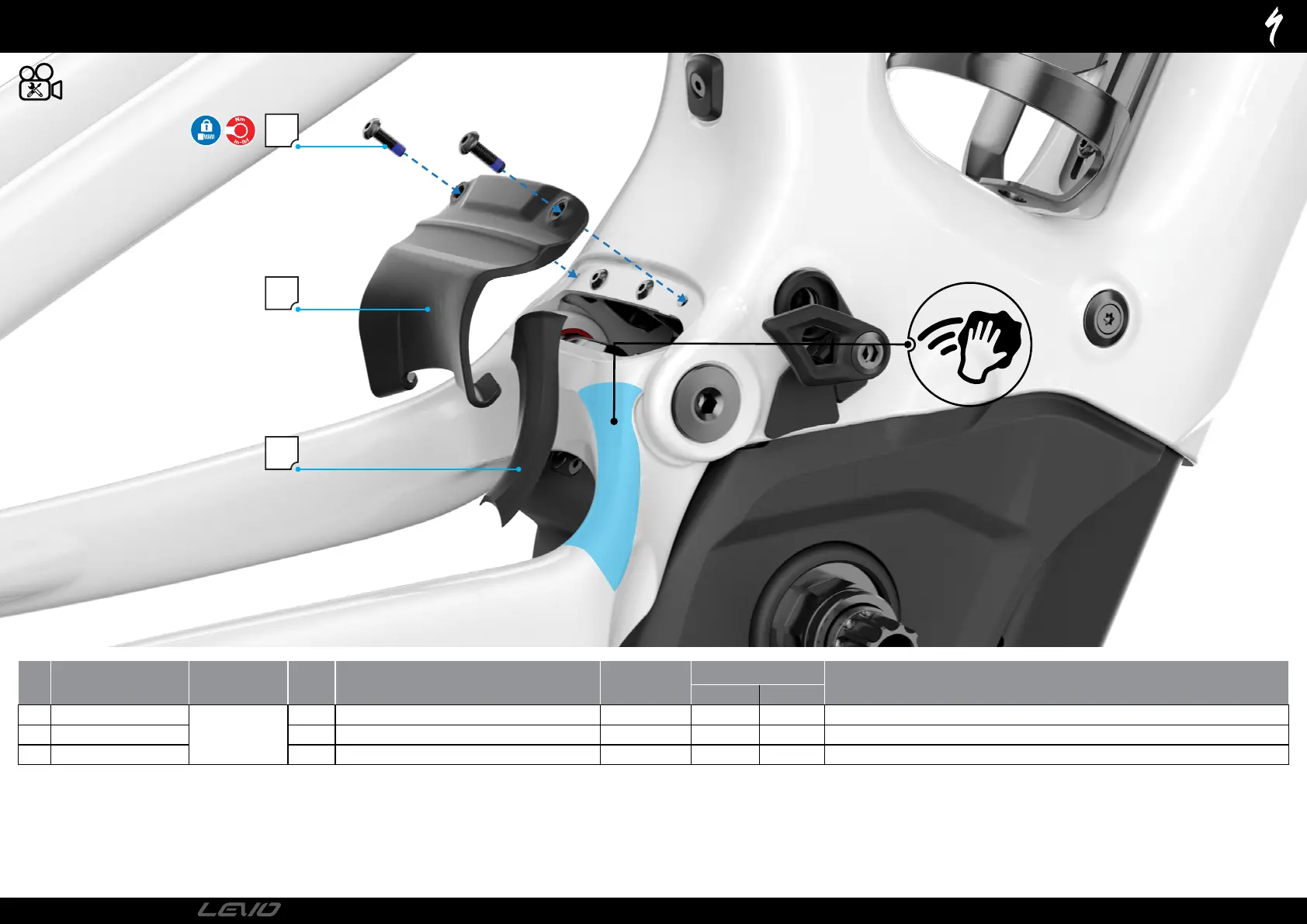

MUDFLAP
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Mud Flap
S219900035
1 N/A N/A N/A
B Mud Flap Bolt 2 M4 x 12 mm x 0.7 p S-Steel 
2.5 mm hex
4 35 Use threadlock
C Chainstay Protector 1 N/A N/A N/A Clean chainstay before applying
MUDFLAP AND PROTECTOR ASSEMBLY:
 Clip the mud flap arms under the chainstay bridge and rotate the mud flap into position (A).
 Align the holes and insert the bolts (B), then tighten to specification.
 Clean the chainstay before installing the chainstay protector (C).
PAGE 20
