Specialized LEVO 2022 - M O T O R B at T E R y C a B L E C L a M P & N D S M O T O R C O V E

C
D
B
E
F
A

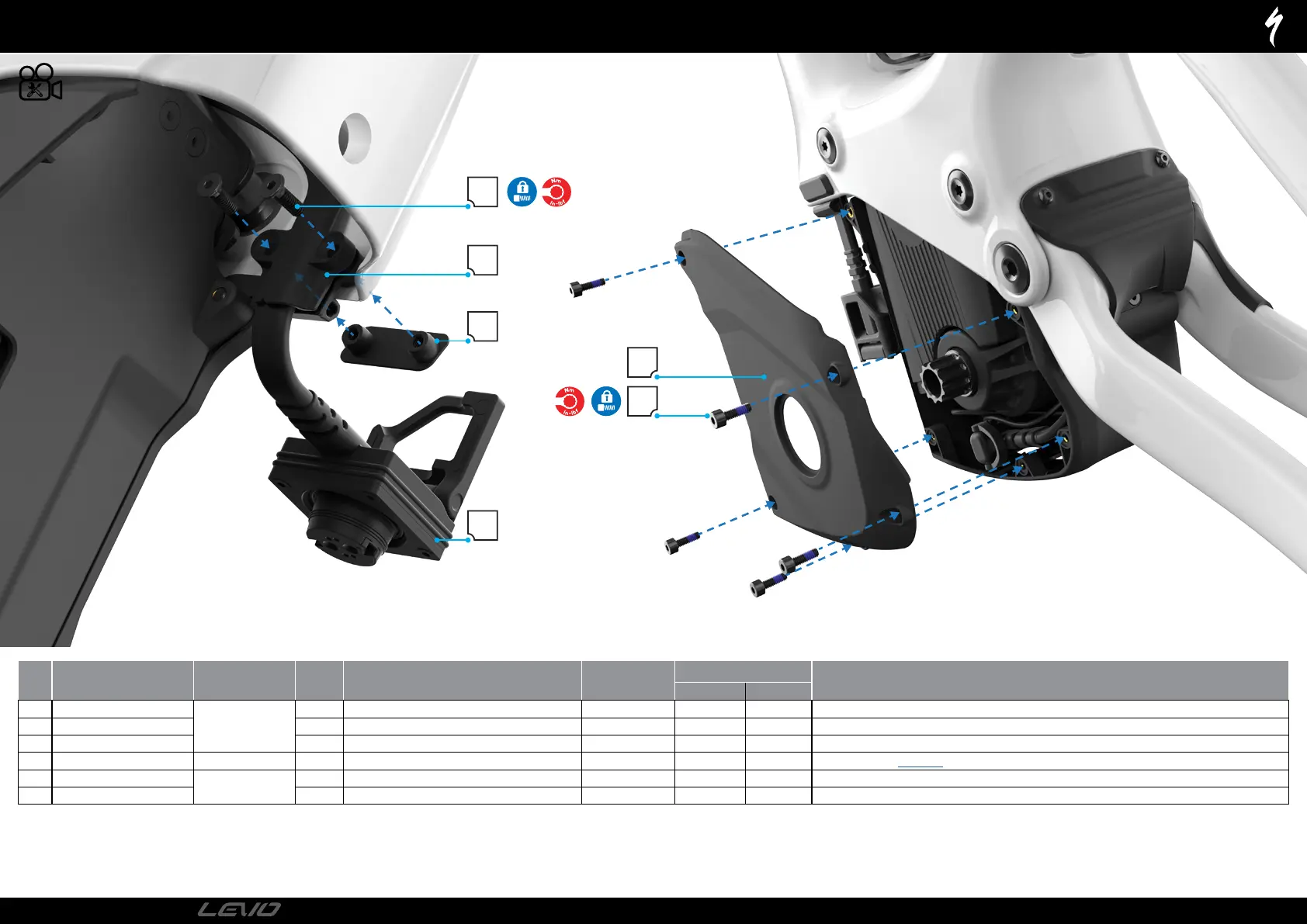

MOTOR BATTERY CABLE CLAMP & NDS MOTOR COVER
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Main Harness Bracket Bolts
S216500006
2 M4 x 12 mm x 0.7 mm, S-Steel 2.5 mm hex 4 35
B Main Harness Clamp 1 N/A N/A N/A
C Main Harness Bracket 1 N/A N/A N/A
D Main Harness S216800018 1 N/A N/A N/A
Spare lever available S216800045
E Non-Drive Side Cover
Part Of Kit
S219900034
1 N/A N/A N/A
F Non-Drive Side Cover Bolts 5 M4 x 12 mm x 0.7 mm - Steel 3 mm hex 1 9
MAIN HARNES CLAMP ASSEMBLY:
 Slide the clamp (B) over the main harness cable (D) and place it against the frame from the inside.
 Place the main harness bracket (C) on the outside and insert the mounting bolts from the inside (A), then torque to specification.
MOTOR COVER ASSEMBLY:
 Slide the leading edge of the motor cover (E) under the rim of the frame.
 Insert the screws (F) and then torque to specification
PAGE 18
2022
TECHNICAL GUIDE
