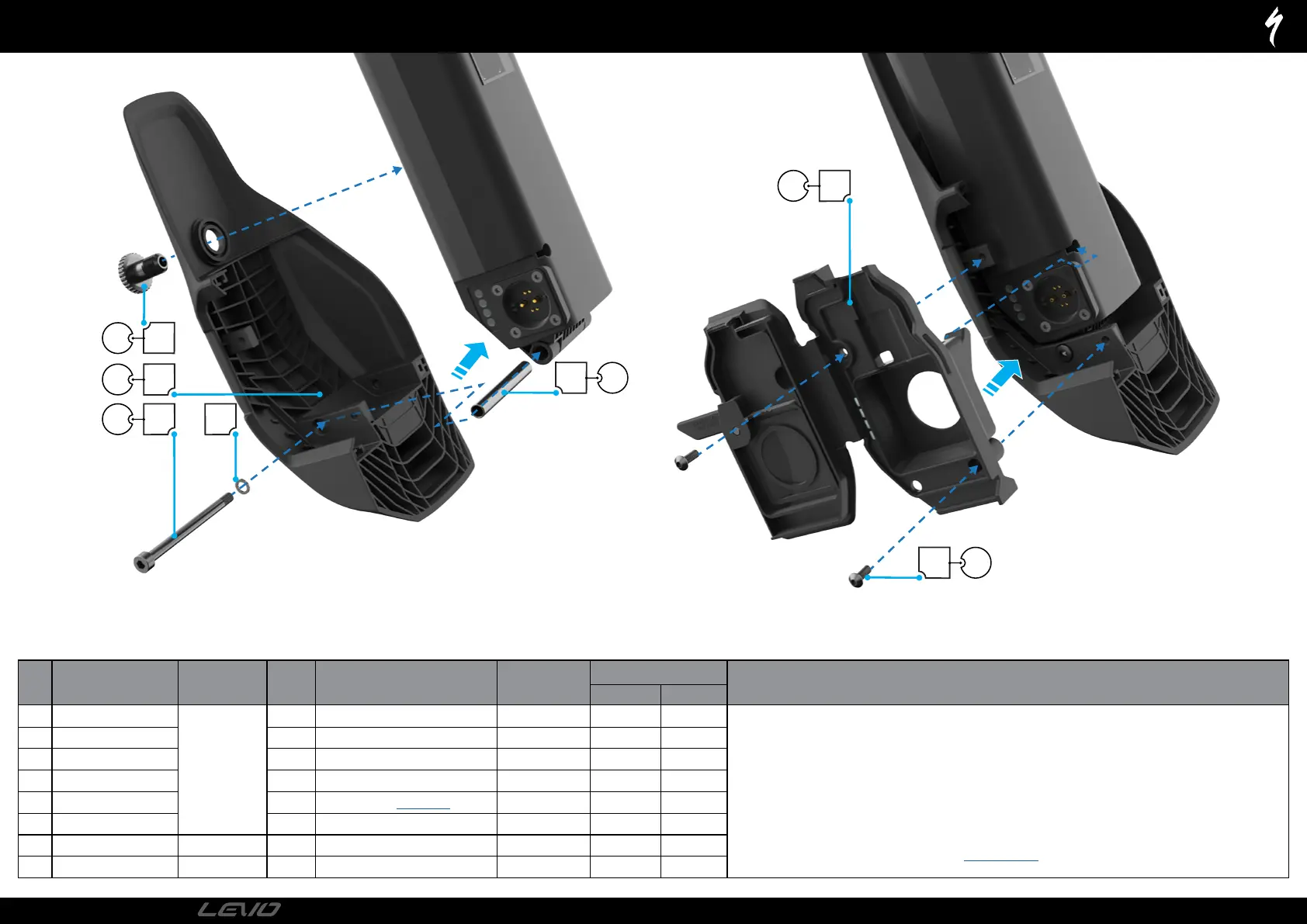

BATTERY ROCK GUARD & BATTERY CHARGE PORT DOOR
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Rock Guard
S214200033
1 N/A N/A N/A
ROCK GUARD AND CHARGE PORT DOOR ASSEMBLY PROCESS:
 1: Insert the battery sleeve into the hole at the base of the battery.
 2: Assemble the rock guard onto battery.
 3: Insert the rock guard mouting bolt and washer, then torque to specification.
 4: Assemble the battery door on the battery making sure it is located in the hole on the top of the battery.
 5: Insert the battery screws and torque to specification.
NOTE: The lower battery screw will need a 3 mm long reach hex bit to torque the bolt correctly.
Battery bolt is available as a standalone part S220500003
B Rock Guard Mouting Bolt 1 M5 x 65 mm x 0.8 mm p,Alu  3 mm hex 3 26
C Rock Guard Mouting Washer 1
M5 x 5.2 mm ID x 8 mm OD x 1 mm Thk, Alu  N/A N/A N/A
D Battery Bolt 1 M12 x 20 mm x 1.25  6 mm hex 6.2 55
E Charge Door 1
Charger Door Kit: S216800026 N/A N/A N/A
F Charge Door Bolts 2 M3 x 8 mm x 0.5 mm p - S-Steel 2.5 mm hex 0.8 7
G Battery Sleeve 1 N/A N/A N/A
H Battery 98921-5614 1 700 Wh (Includes Rock Guard) N/A N/A N/A
