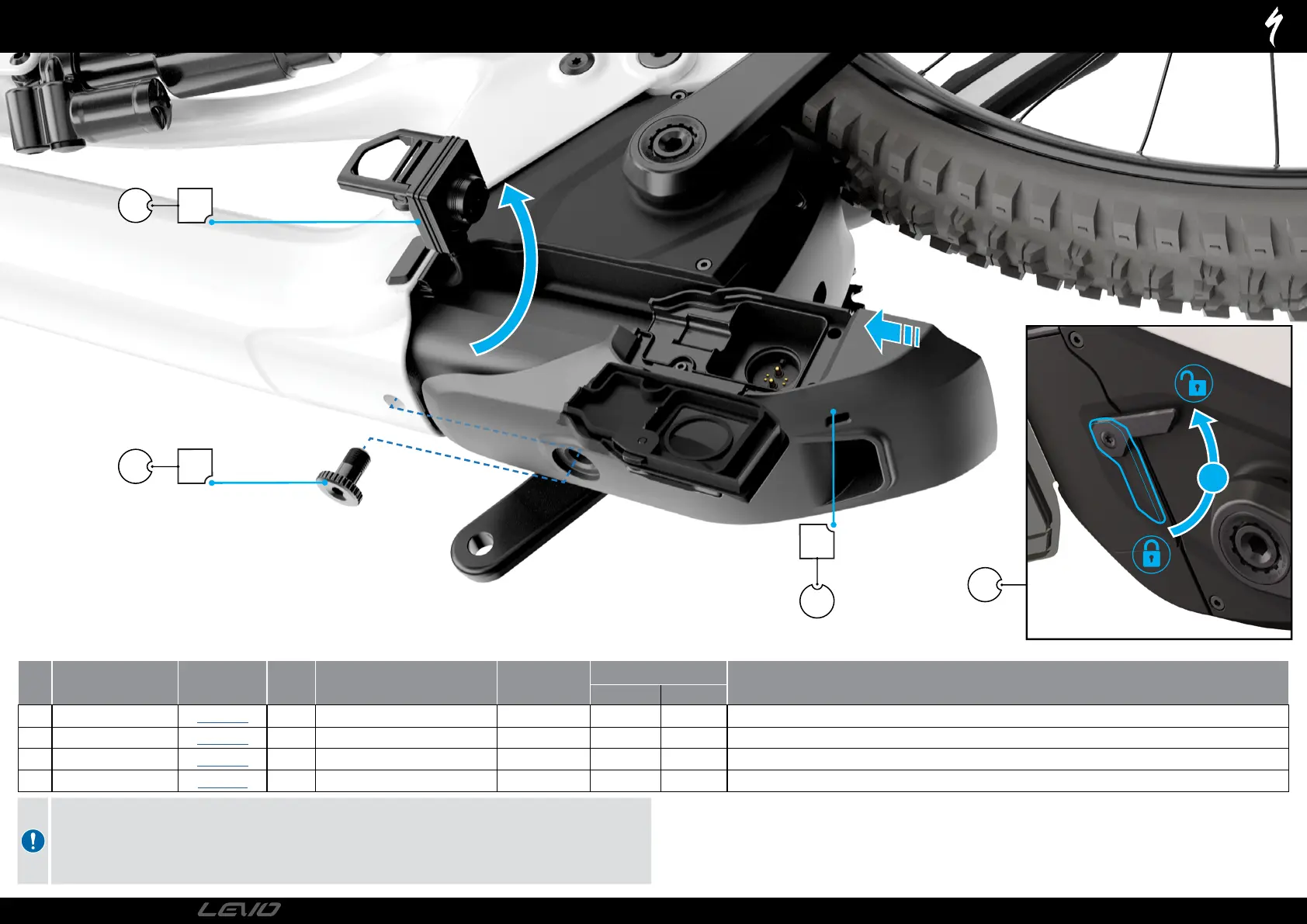

BATTERY INSERTION
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Main Harness S216800018 1 N/A N/A N/A
B Battery Bolt
S220500003 1 M12 x 20 mm x 1.25 mm p, ALLOY 6 mm hex 6.2 55
C Battery Door Kit
S216800026 1 2.5 mm hex 0.8 7
D Battery
98921-5614 1 700 Wh (Includes Rock Guard) N/A N/A N/A The Gen. 2 Levo 500Wh battery (98919-5611) is compatible with Gen. 3 Levo bicycles for riders wanting a lighter battery.
CAUTION: Installation or removal of the battery should be done with the bicycle on a repair stand so the battery can slide out
at the bottom. Alternatively, if a repair stand is not available, the bicycle can be carefully placed on its side or turned upside
down. If placed on its side, the bicycle should be on even ground and leaned toward the non-drive side. Due to its increased
weight, turning the bicycle upside down may require more effort than with a regular bicycle. Be careful not to damage
any components when turning the bicycle. Place it on soft ground or protective material.
REMOVAL AND INSTALLATION PROCESS:
1: Move the main harness (A) out of the way before inserting the battery (D).
2: Slide the battery/rock guard assembly into the frame. Be careful not to drop the battery as this may damage the battery.
3: Insert the battery mounting screw (B) in the rock guard using a 6 mm hex key, then torque to specification
4: Close the charge port door (C) on the non-drive side of the battery near the motor housing then lock the door.
