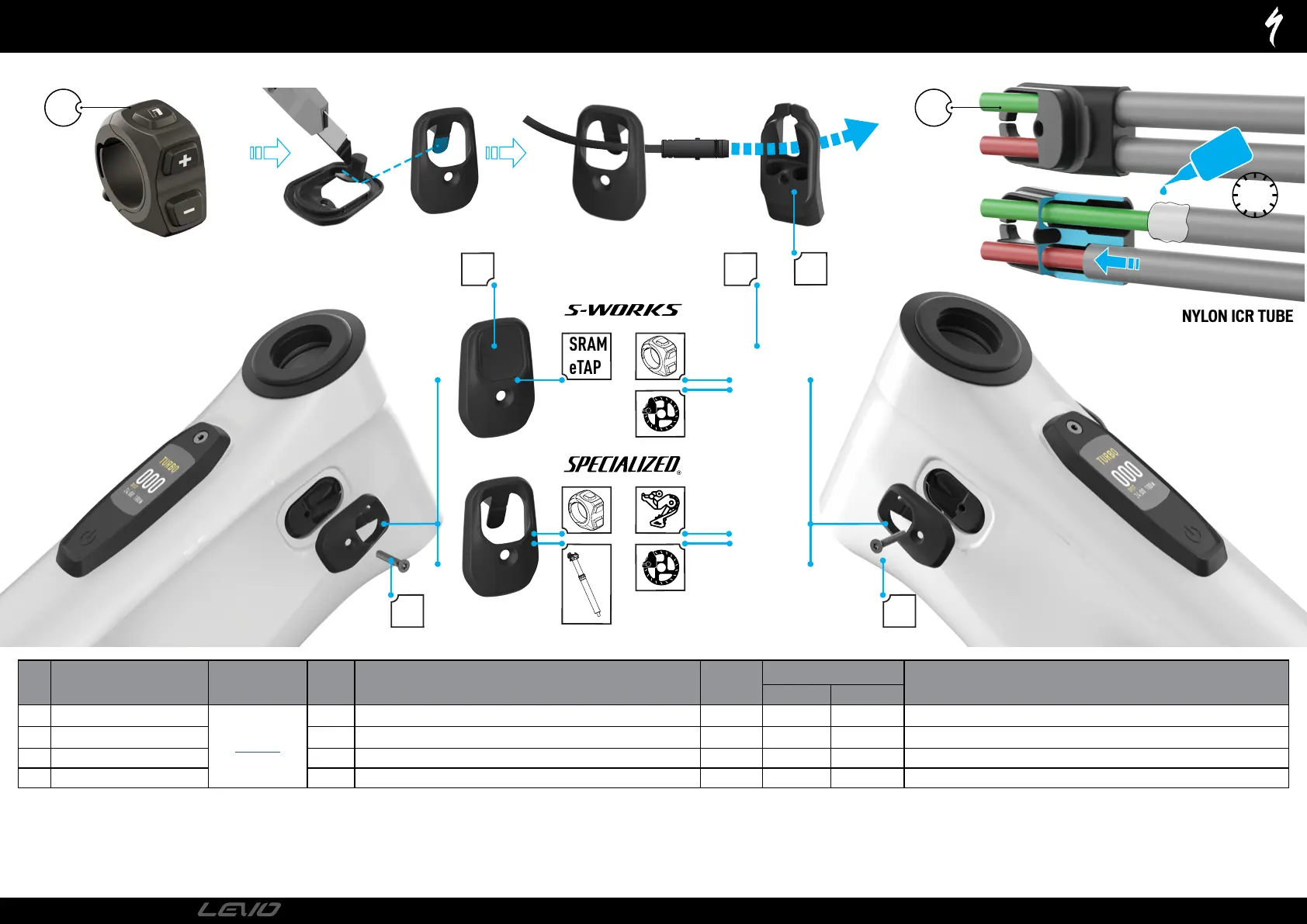

NYLON ICR TUBE
SRAM
eTAP
30
sec
<
DRIVE SIDE NON-DRIVE SIDE
A D
C C
B
1 2
HEADTUBE ICR GUIDES
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A ICR Guide - Blank
S216500007
1 Blank-Off N/A N/A N/A For Use With On The S-Works Equipped With SRAM Wireless Dropper Post.
B ICR Guide - 2 Cables - 2 Wires 1 2 Wires x 2 Cables N/A N/A N/A
C ICR Guide Screw 2 Torx Head Screw M3 x 18 mm x 0.5 mm p - Steel BLK N/A N/A N/A
D ICR Guide Universal Base 2 T10 Torx 1 90
GUIDE TUBE ASSEMBLY PROCESS
1: The Trail Remote connector cannot pass through the ICR guide base holes (A) and must be threaded through the slot located on the front of
the guide base. Removal of the tab on the ICR guide cover will give access to the slot in the ICR guide base.
2: The ICR guide base is designed to be used with nylon guide tubes. Glue one end of the guide tube into the ICR guide base (B) with a small
drop of glue (Recomended: Loctite 416) to one end of the guide tube. Briefly allow the glue to spread around the guide tube, then quickly insert
them into the ICR guide hole (2).
PAGE
27
2022
TECHNICAL GUIDE
