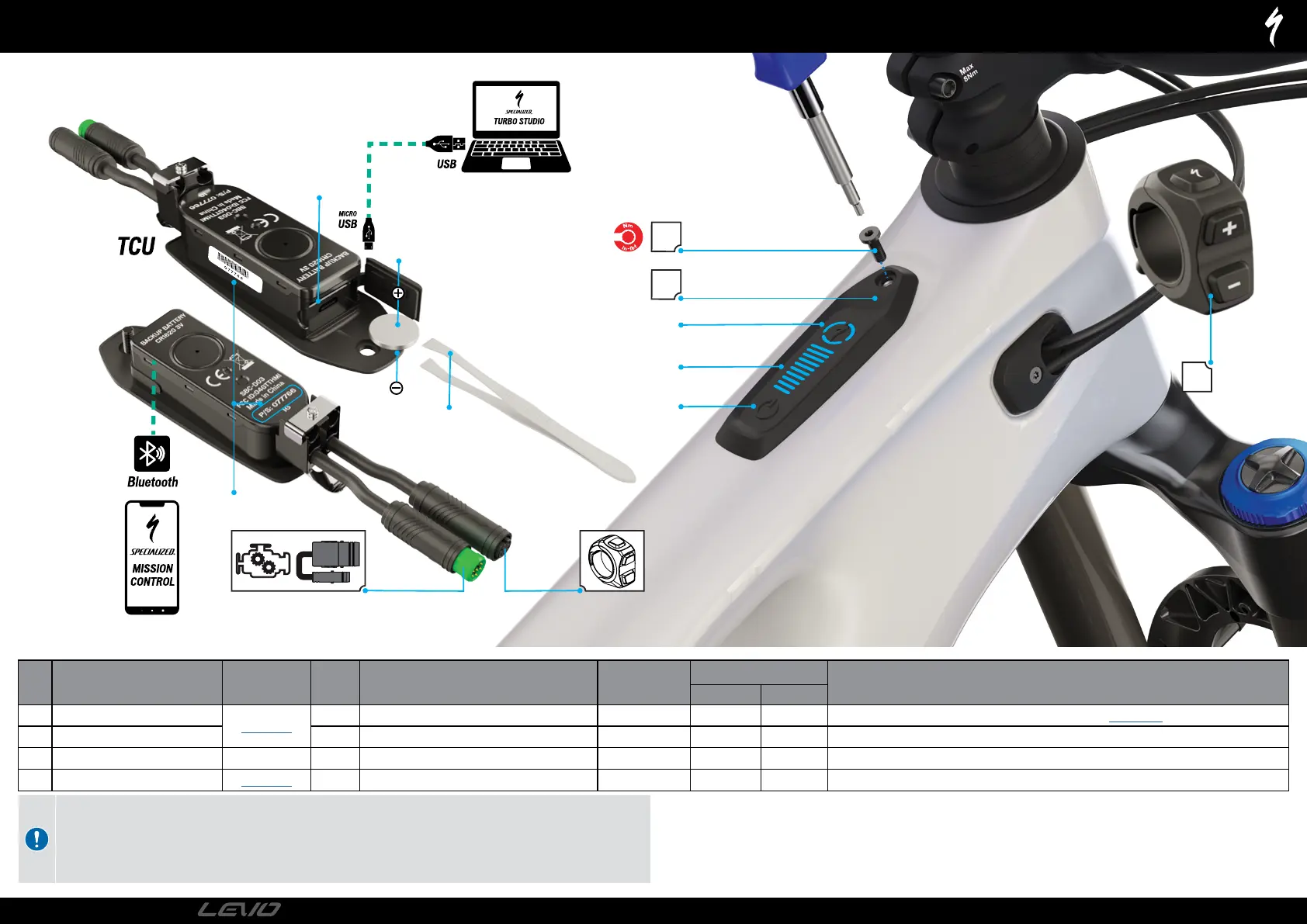

BLUETOOTH
PAIRING CODE
USB & BATTERY
COMPARTMENT
COIN CELL BATTERY
CR 1620
NON METALLIC
TWEEZERS
MODE CHANGE
BATTERY LEVEL AND
ERROR CODES
POWER
A
B
C
TCU
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
1 Turbo Connect Unit (TCU) Screw
S216800009
1 M4 x 10 mm 0.7 mm P Torx T10 Torx 0.8 7
DO NOT OVERTIGHTEN MAX 0.8 Nm. ( Optional Replacement Screw S210500022)
2 Turbo Connect Unit (TCU) 1
ELE TURBO CONNECT UNIT DISPLAY (A1.2) WITH GITEKI MARK
N/A N/A Update firmware via USB data cable and Turbo Studio.
3 Turbo Connect Battery 1 CR 1620 N/A N/A Replacement battery: CR 1620, remove with a non metallic tweezers.
4 Trail Remote
S216800019 1 2 mm hex 0.8 7 DO NOT OVERTIGHTEN MAX 0.8 Nm ( Use mm TCU 2 remote as replacement)
CAUTION: The TCU sits above the top tube and has the potential to be struck by the handlebar or stem when the handlebar is
rotated fully. When assembling the bicycle, make sure to have enough clearance between the handlebar, stem, and the TCU.
The number of spacers below the stem necessary to clear TCU will depend on several factors. These include stem model/
length/orientation, which TCU version your bicycle is equipped with, and the head tube angle adjustment position.
PAGE
28
2022
TECHNICAL GUIDE
