Specialized LEVO 2022 - Stem

A1
C C B F
D
D
G
EB
A2
A3
1
1
2
2
2

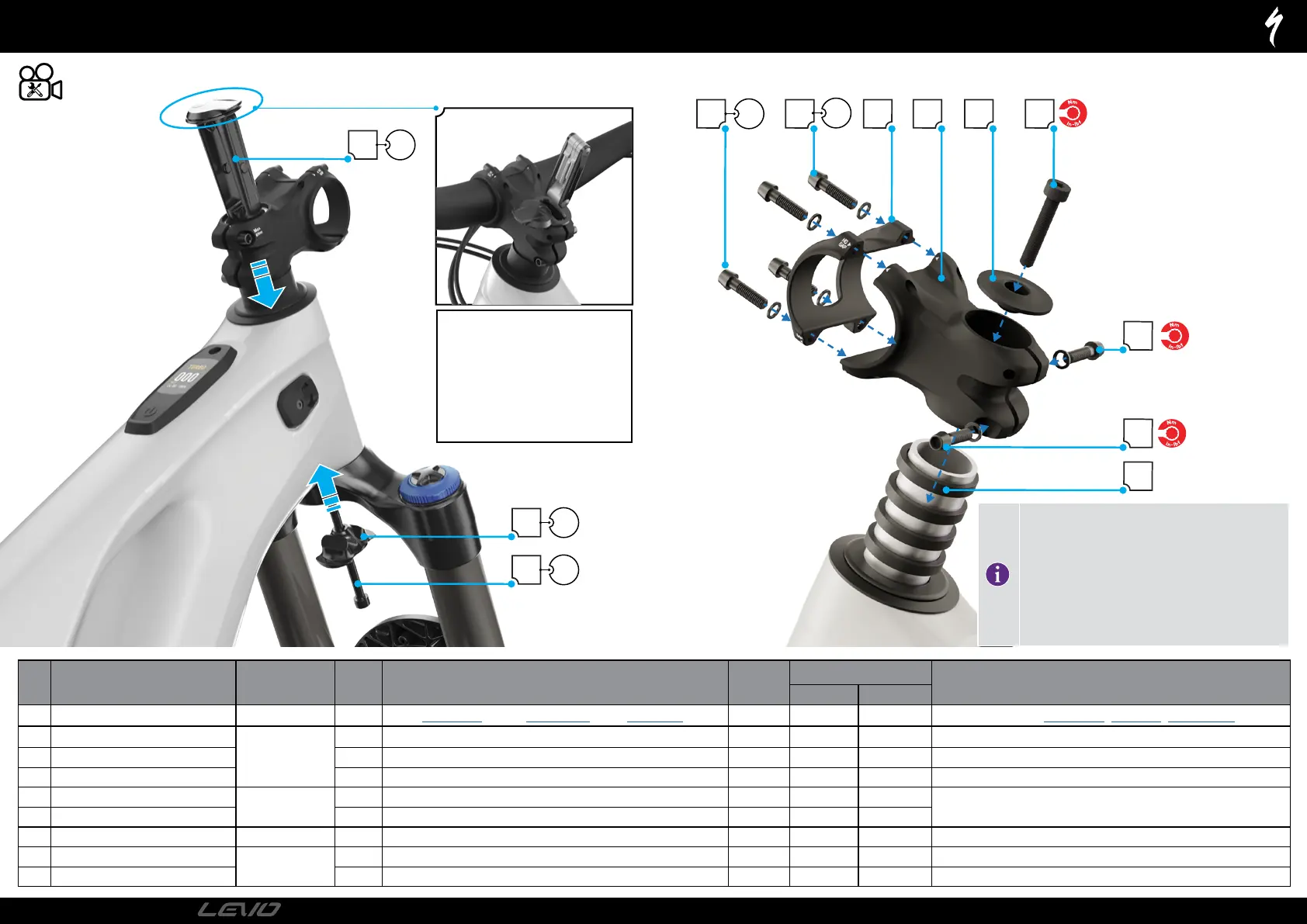

STEM
The SWAT CC replaces the
top cap and star nut, and is
used to adjust the headset
compression with the bolt on
the underside of the steerer
tube.
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A SWAT™ Conceal Carry MTB Tool LINK 1 90 mm S185300020 | 105 mm S185300016 | 120 mm S185300017 5 mm hex N/A N/A On certain models only (S1/S2 90 mm | S3 105 mm | S4/S5 120 mm bolt)
B Alloy Trail Stem 1 35 mm x 40 mm / 50 mm N/A N/A N/A S1 - S2 40 mm / S3 - S6 50 mm
C Alloy Trail Stem Faceplate Bolt 4 M5 x 18 mm x 0.8 mm p / Inlcudes Spring Washer 5 mm hex 6 53
D Alloy Trail Stem Steerer Bolt 2 M6 x 20 mm x 1 mm p / Inlcudes Spring Washer 5 mm hex 8 71
E Top Cap 1 N/A N/A N/A
On certain models only
F Top Cap Bolt 1 5 mm hex N/A N/A
G Headset Spacer 1 34 mm OD x 28.6 mm ID x5 mm N/A N/A N/A
H
Stem Deity Coperhead (Not Shown)
1 Deity Stem, Copperhead, 35 mm / 50 mm N/A N/A N/A S1 - S2 35 mm / S3 - S6 50 mm
I
Stem Deity Coperhead Bolts (Not Shown)
4 M6 x 18 mm x 1.0 mm p 5 mm hex 4 - 6 35.5 - 53
INFO: The TCU sits above the top tube and has the
potential to be struck by the handlebar or stem when
the handlebar is rotated fully. When assembling the
bicycle, make sure to have enough clearance between
the handlebar, stem, and the TCU.
The number of spacers below the stem necessary to
clear TCU will depend on several factors. These include
stem model/length/orientation, which TCU version
your bicycle is equipped with, and the head tube angle
adjustment position.
