Specialized LEVO 2022 - Geometry

B
A
C
D
O
E
F
G
H
I
J
K
L
M
N

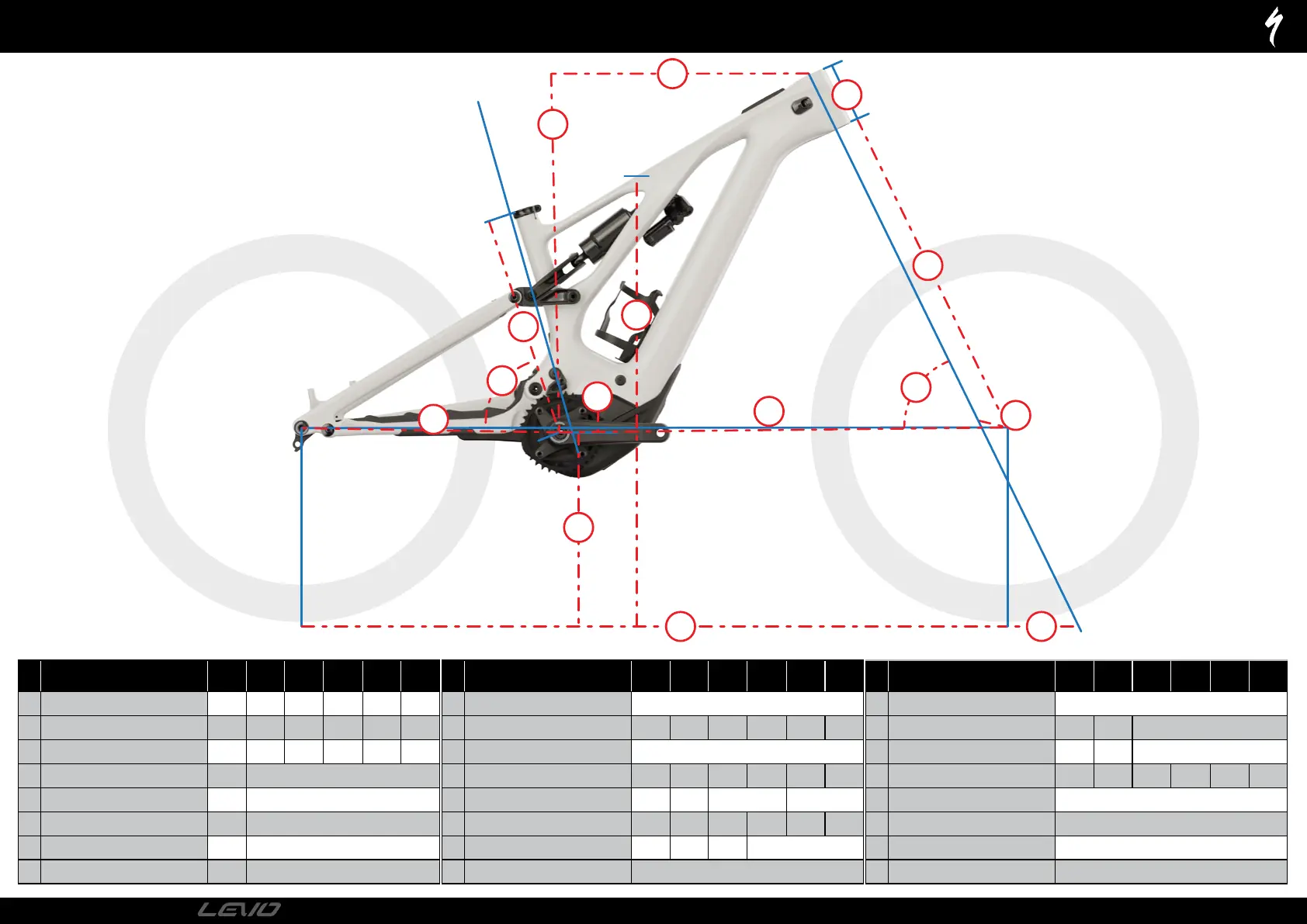

GEOMETRY
FRAME SIZE S1 S2 S3 S4 S5 S6
A STACK (mm) 605 618 626 635 644 653
B REACH (mm) 412 432 452 477 502 532
C HEAD TUBE LENGTH (mm) 105 105 115 125 135 145
D HEAD TUBE ANGLE (°) 64.5 ° 64.7 °
E BB HEIGHT (mm) 352 350
F BB DROP (mm) 25 27
G TRAIL (mm) 131 129
H FORK LENGTH (FULL) (mm) 557 567
FRAME SIZE S1 S2 S3 S4 S5 S6
I FORK RAKE/OFFSET (mm) 44
J FRONT CENTER (mm) 737 759 784 813 842 877
K CHAINSTAY LENGTH (SHORT SETTING) 441
L WHEELBASE (mm) 1179 1200 1224 1254 1283 1381
M BIKE STANDOVER HEIGHT (mm) 750 775 785 790
N SEAT TUBE LENGTH (mm) 380 390 405 425 445 465
O SEAT TUBE ANGLE (°) 78 77.5 76.7 76.2
CRANK LENGTH (mm) 160
FRAME SIZE S1 S2 S3 S4 S5 S6
HANDLEBAR WIDTH (mm) 780
STEM LENGTH (mm) 35/40 35/40 50
SADDLE WIDTH (mm) 155 155 143
SEAT POST MAX INSERTION (mm) 210 220 240 260 280 295
SEAT POST MIN INSERTION (mm) 100
REAR RIM WIDTH (mm) 30
FORK SIZE (mm) 160
PAGE
1
2022
TECHNICAL GUIDE
