3. Front and Rear Panels
3-1. Desktop Front Panel

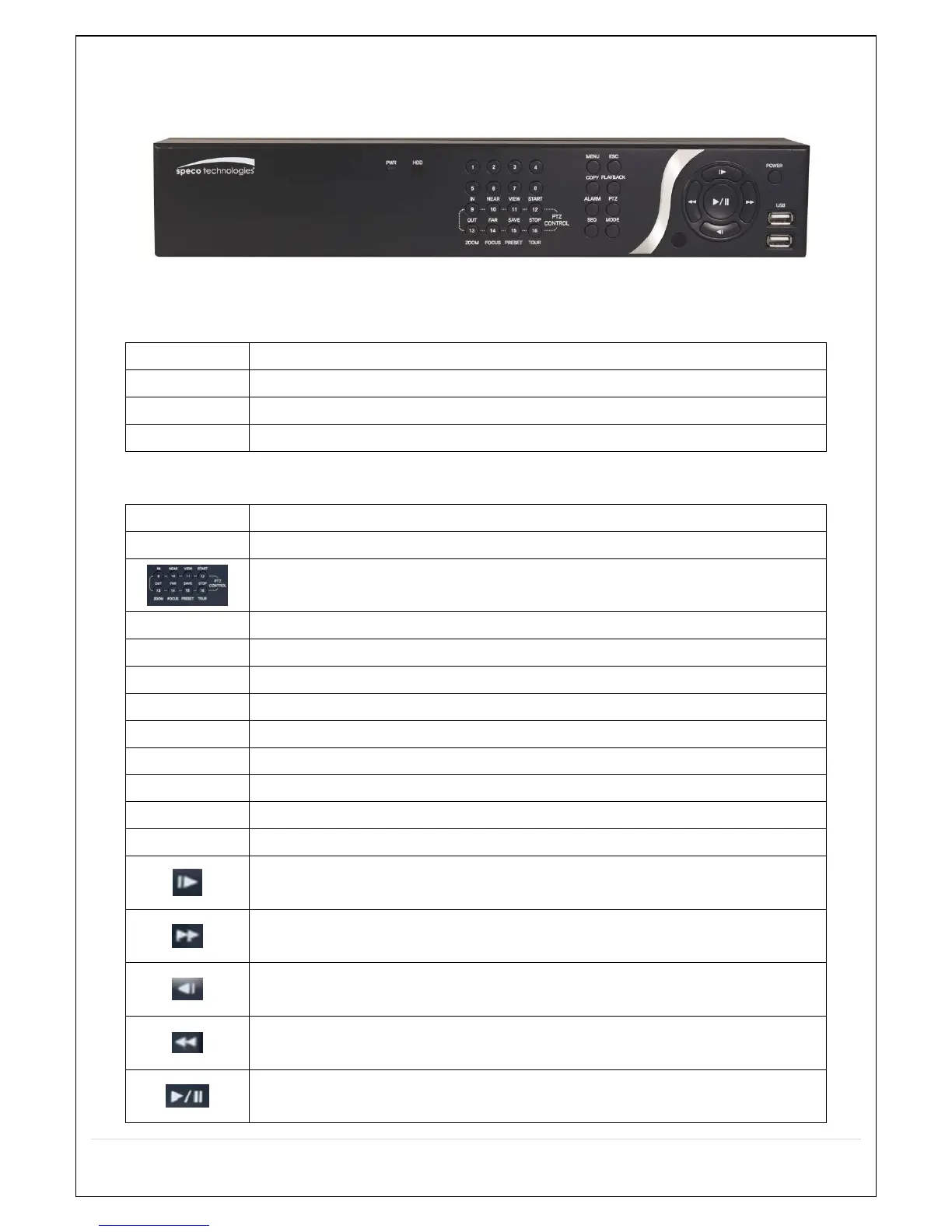

Figure 3.1.1. Desktop NS Front panel
Table 3.1.1. Front LED and Port of NS
Name
Description
POWER
LED light is on when power is applied to the system.
HDD
LED light is on when the system is recording video data.
USB Port
This USB port for archiving footage into a USB device. (USB 2.0)
Table 3.1.2. Front Buttons
Name
Description
Number1~16
Select a channel from CH1 to CH16.
Buttons from 9 to 16 are used as function keys in PTZ control mode.
To escaping PTZ mode, press the ESC button.
MENU
Enters the Setup Menu.
COPY
Takes a screenshot on Live and Backup button on Playback.
ALARM
Activates the external alarm device.
SEQ
Enable the sequence mode on Live.
ESC
Exits the current mode or cancel an operation.
PLAYBACK
Goes to search menu.
PTZ
Activate Pan, Tilt and Zoom menu operation.
MODE
Select the screen display mode (1x1, 2x2, 3x3, if applicable: 4x4, 1+7)
POWER
Initiates system shut down.
LIVE mode – Up
SEARCH mode - Jump 1min ahead on playback and 1 frame ahead on pause.
LIVE mode – Right
SEARCH mode - Control the play speed (Fast Forward).
LIVE mode – Down
SEARCH mode - Jump 1min back on playback and 1 frame back on pause.
LIVE mode – Left
SEARCH mode- Select the play speed (Rewind).
LIVE mode – Select (Center)
SEARCH mode - Play & Pause.
