Speco N4NS - Poe Port SETUP

19
2-5. PoE Port SETUP

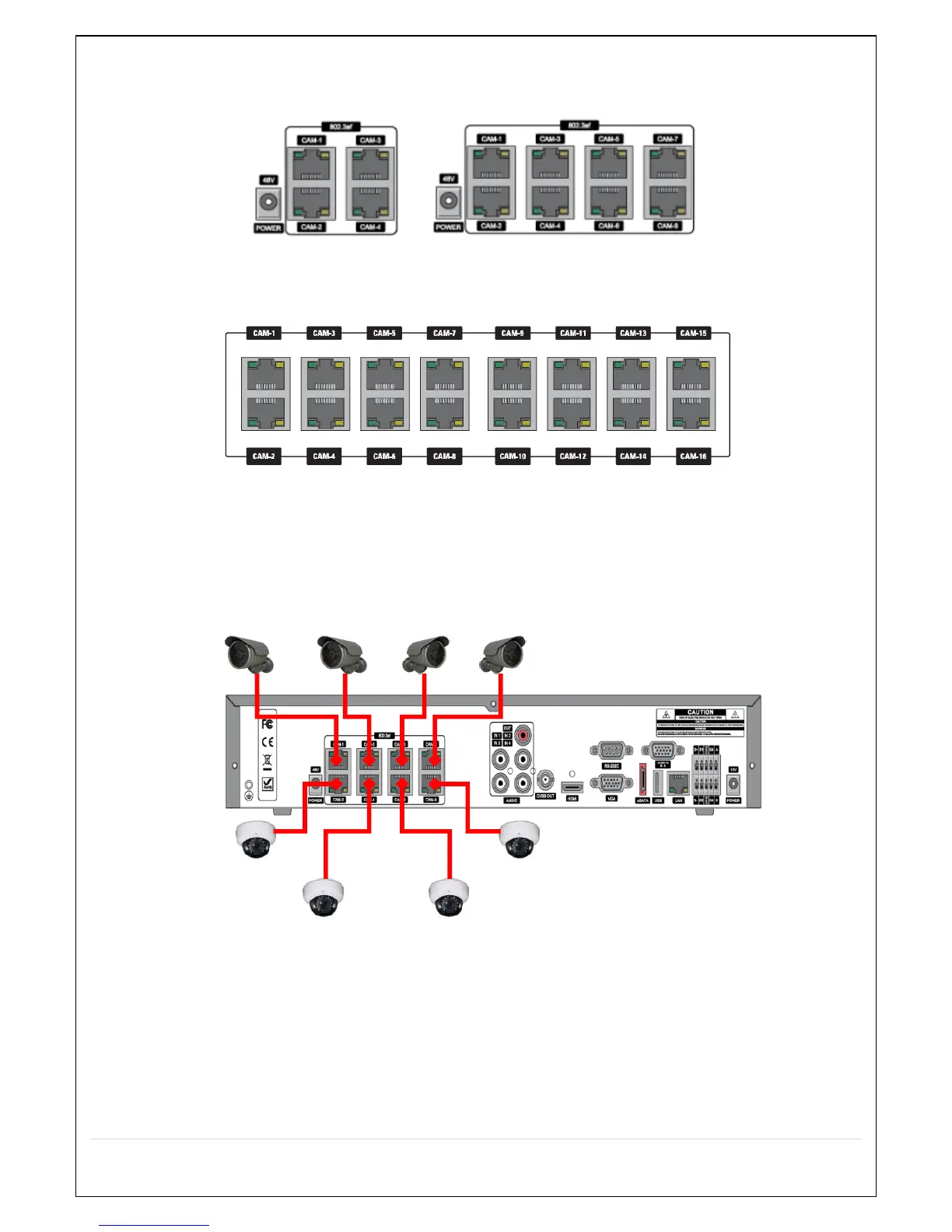

Figure 2.5.1 PoE Port (N4NSP / N8NSP & N16NSP)
Figure 2.5.2 PoE Port (N16NSF)
2.5.1 Connecting the Camera(NSP Model)
Figure 2.5.1.1 IP Camera Connection Diagram (N8NSP)
