3-2. Connectors
[ N4/8/16NS ]
[ N4NSP ]
[ N8/16NSP ]

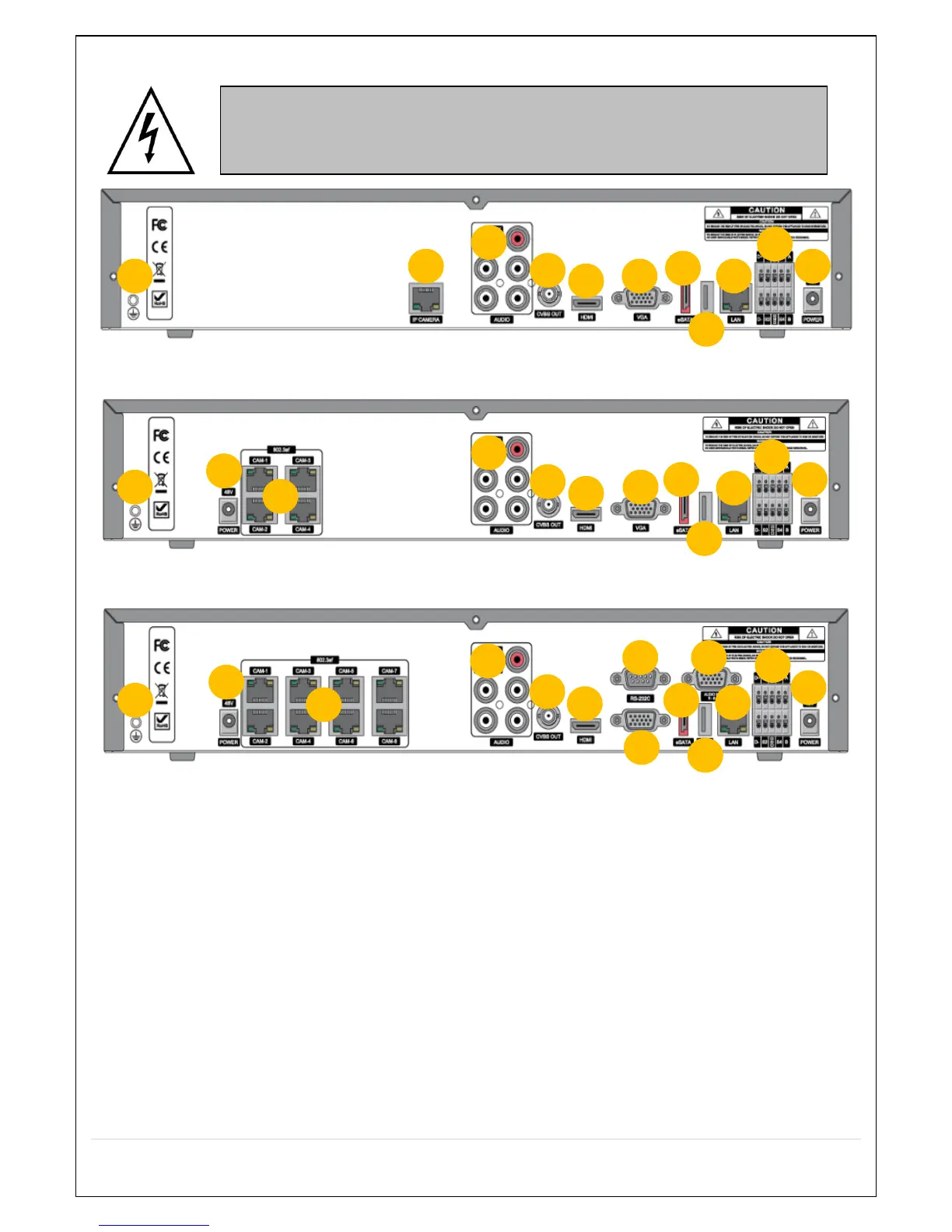

Figure 3.2.1. Connectors for NS/NSP
① Ground: Use for grounding.
② PoE POWER: DC48V input.(NSP Models)
③ PoE PORT: N4NSP (4 Port PoE), N8NSP/N16NSP(8 Port PoE)
④ ETHERNET PORT2: Network Second Terminal. No Internet access.(NS Series without PoE)
⑤ AUDIO IN/OUT: 4 Connectors for Audio Input / 1 Connector for Audio Output
⑥ CVBS OUT: MAIN – Composite Video Output.
⑦ HDMI OUT: HDMI output port, Connector to the HDMI Monitor, (1280x720, and 1920x1080).
⑧ VGA OUT: Connector for VGA Monitor, Main Video Output.
⑨ RS232C: POS Interface (TBD)
⑩ AUDIO Port: Audio inputs connections for channels 5-8 or 5-16 through external cable (N8NSP,
N16NSP Models only).
 Do not power this system on before all the connections are completed.
 Make sure all the connections are properly secured. Faulty connection may result in
the system being damaged.
