26
⑪ E-SATA: 1 External SATA Terminal
⑫ USB PORT: Connector for USB Mouse or USB flash memory.
⑬ ETHERNET PORT1: RJ-45 Connector for LAN Connection, used for Internet Connection
⑭ SENSOR IN, ALARM OUT, RS-485: 4 sensor inputs, 1 alarm output and RS-485 for PTZ
⑮ POWER: DC12V input

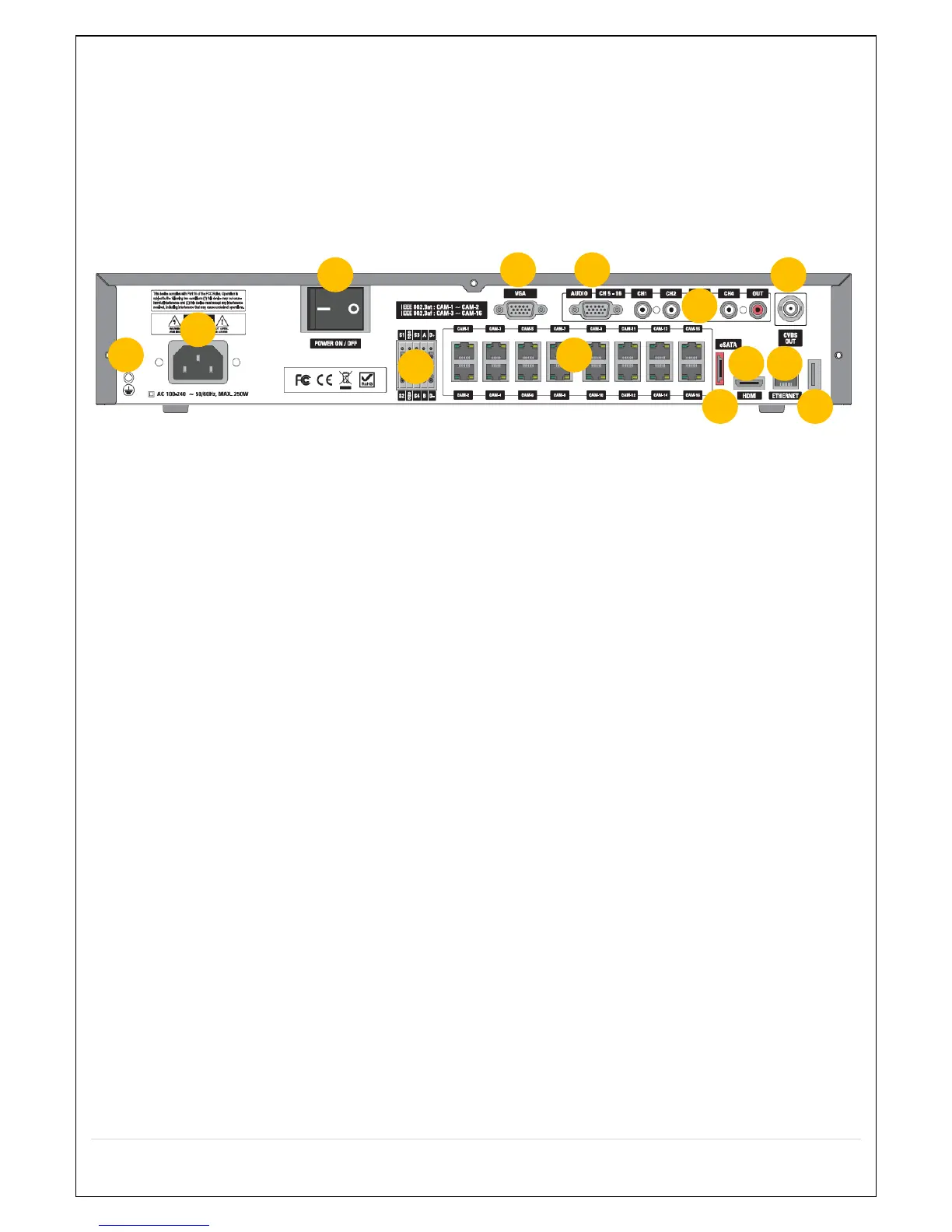

Figure 3.2.2. Connectors for N16NSF
① Ground: Use for grounding.
② POWER: Power Input ( 200W for PoE Power -First 2 channels at 802.3at, the rest 14 channels are
802.3af
③ PoE PORT: 16 Port PoE
④ AUDIO IN/OUT: 4 Connectors for Audio Input / 1 Connector for Audio Output
⑤ CVBS OUT: MAIN – Composite Video Output.
⑥ HDMI OUT: HDMI output port, Connector to the HDMI Monitor, (1280x720, and 1920x1080).
⑦ VGA OUT: Connector for VGA Monitor, Main Video Output.
⑧ AUDIO Port: Audio inputs connections for channels 5-8 or 5-16 through external cable (N8NSP,
N16NSP Models only).
⑨ E-SATA: 1 External SATA Terminal
⑩ USB PORT: Connector for USB Mouse or USB flash memory.
⑪ ETHERNET PORT1: RJ-45 Connector for LAN Connection, used for Internet Connection
⑫ SENSOR IN, ALARM OUT, RS-485: 4 sensor inputs, 1 alarm output and RS-485 for PTZ
⑬ POWER SWITCH
1
10
9
3
2
5
6
7
8
11
12
13
4
