SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN
BINDING
Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific
transmitter.Youwillneedtorebindafterthemodelprogrammingisinitiallysetuptofullyprogramthemodel’sfailsafepositions.
2. 3.
5.
6.
2. 3.
4.
6.
7.
1.
5.
1.
4.

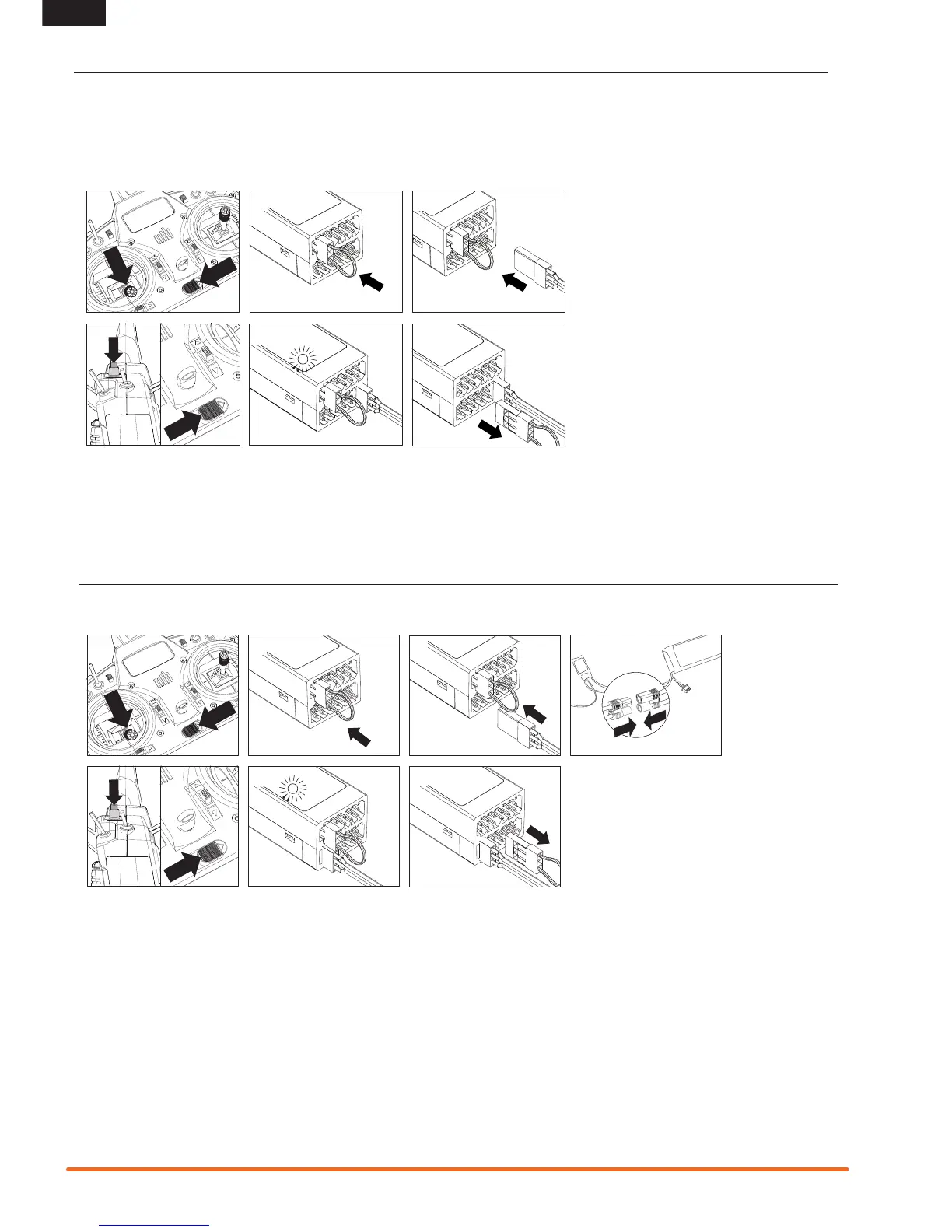

Binding Using the Receiver and Receiver Battery
Binding Using the Receiver and ESC
2. 3.
5.
6.
2. 3.
4.
6.
7.
1.
5.
1.
4.
1. Lower throttle to the lowest position and make sure the
transmitter is powered off.
2. Insert the bind plug into the BIND/DATA port.
3.Insertthereceiverbatteryintoanyopenport.Thereceiver’s
LED will flash when the receiver is ready to bind.
4. While pressing the Bind button, power on the transmitter.
5. Release the Bind button after the receiver has stopped flash-
ingrapidly,oncethereceiver’sLEDstaysilluminated;this
indicates the receiver is bound to the transmitter. The screen
also provides binding information.
6. Remove the bind plug from the receiver.
1. Lower throttle to the lowest position and make sure the
transmitter is powered off.
2. Insert the bind plug into the BIND/DATA port.
3.InserttheESCplugintotheTHROport.
4.ConnectbatterytoESCandturnonESCswitch,ifavailable.
Thereceiver’sLEDwillrapidlyashwhenthereceiverisready
to bind.
5. While pressing the Bind button, power on the transmitter.
6. Release the Bind button after the receiver has stopped
ashingrapidly,oncethereceiver’sLEDstaysilluminated;this
indicates the receiver is bound to the transmitter. The screen
also provides binding information.
7. Remove the bind plug from the receiver.

Spektrum DX9 Specifications

General

Interface	RF Wireless
Product color	Black
Brand compatibility	Spektrum
Compatible products	Spektrum BLADE 450X BNF[BLH4380A]\\r 300 CFX BNF Basic[BLH4650]\\r 300 CFX BNF Basic[BLH4650]\\r Nano QX FPV RTF w/ SAFE[BLH7200]
Backlight color	Blue
Built-in display	Yes
Maximum range	- m
Frequency band	2.4 GHz
Language version	English
Channels quantity	9 channels
Number of devices supported	1
Battery capacity	2000 mAh

Weight and Dimensions

Weight	- g
