SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN

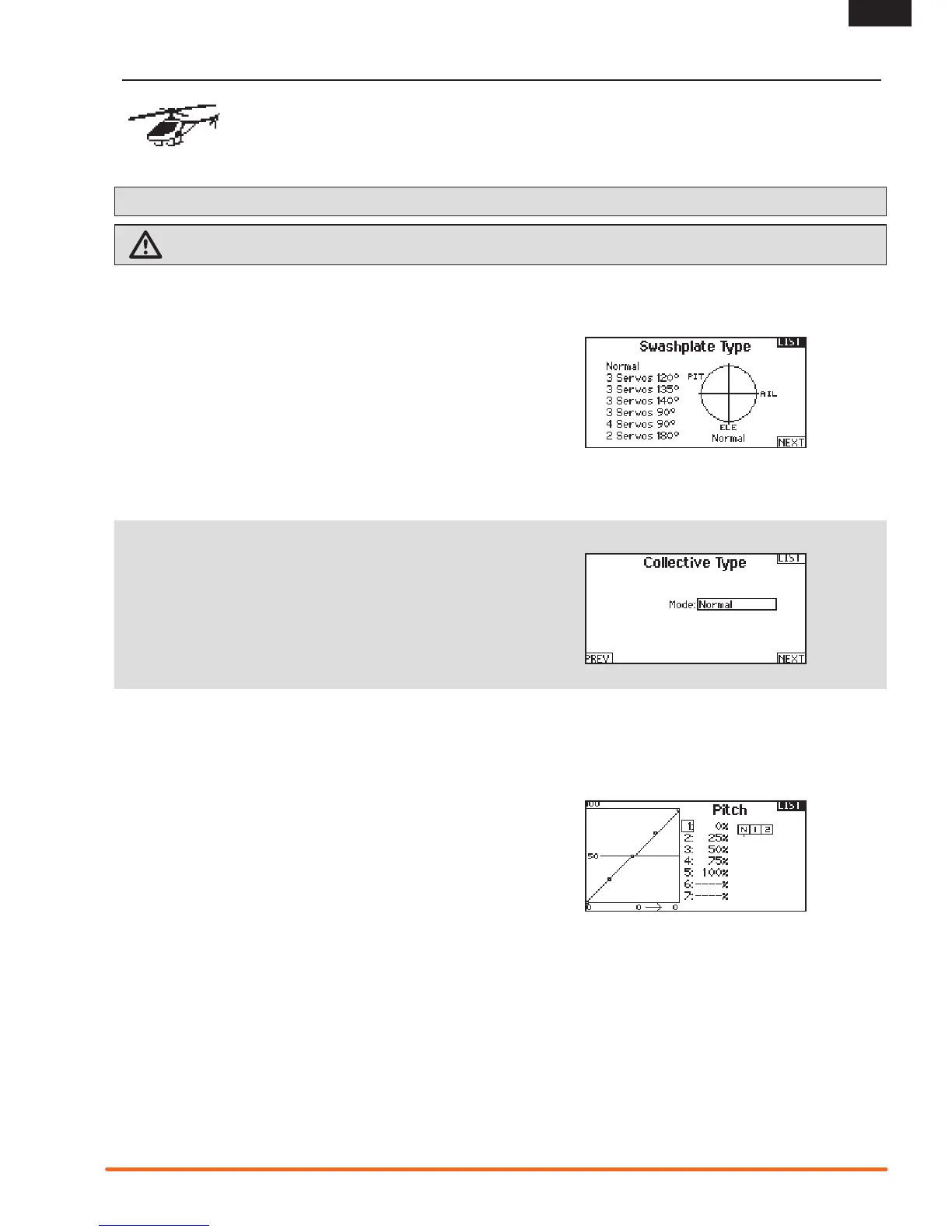

Swash Type
The Swash Type menu option assigns the swash type for your
particular helicopter model.
Select the Swash Type before completing any programming in
the Function List. The Swash Type will affect menu options in the
Function List.
Collective Type
The collective type is used to turn on “Pull” collective for reversed
collective. Available settings are Normal and Reverse. Press
NEXTfromtheSwashplateTypescreentoaccesstheCollective
Typescreen.TheCollectiveTypeallowsthethrottle/pitchstick
to operate in reverse and ensures trims, curves and all other
functions that are to work in reverse function properly.
Pitch Curve
This function supports adjustment of collective pitch in 5 flight
modes.
To adjust the Pitch Curve:
1.SelectthePitchCurveyouwishtoedit(N,1or2).
2. Scroll right to select the points on the curve and edit the
respective values.
3. Press the BACKbuttontosavethePitchCurvesandreturn
to the Function List.
HELI (HELICOPTER)
Heli Model Type
NOTICE: Refer to your helicopter, gyro and governor manuals for programming recommendations.
CAUTION: AlwaysdoaControlTestofyourmodelwiththetransmitterafterprogrammingchangestomakesureyourmodel
responds as desired.

Spektrum DX9 Specifications

General

Interface	RF Wireless
Product color	Black
Brand compatibility	Spektrum
Compatible products	Spektrum BLADE 450X BNF[BLH4380A]\\r 300 CFX BNF Basic[BLH4650]\\r 300 CFX BNF Basic[BLH4650]\\r Nano QX FPV RTF w/ SAFE[BLH7200]
Backlight color	Blue
Built-in display	Yes
Maximum range	- m
Frequency band	2.4 GHz
Language version	English
Channels quantity	9 channels
Number of devices supported	1
Battery capacity	2000 mAh

Weight and Dimensions

Weight	- g
