Spektrum DX9 User Manual

19
SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN

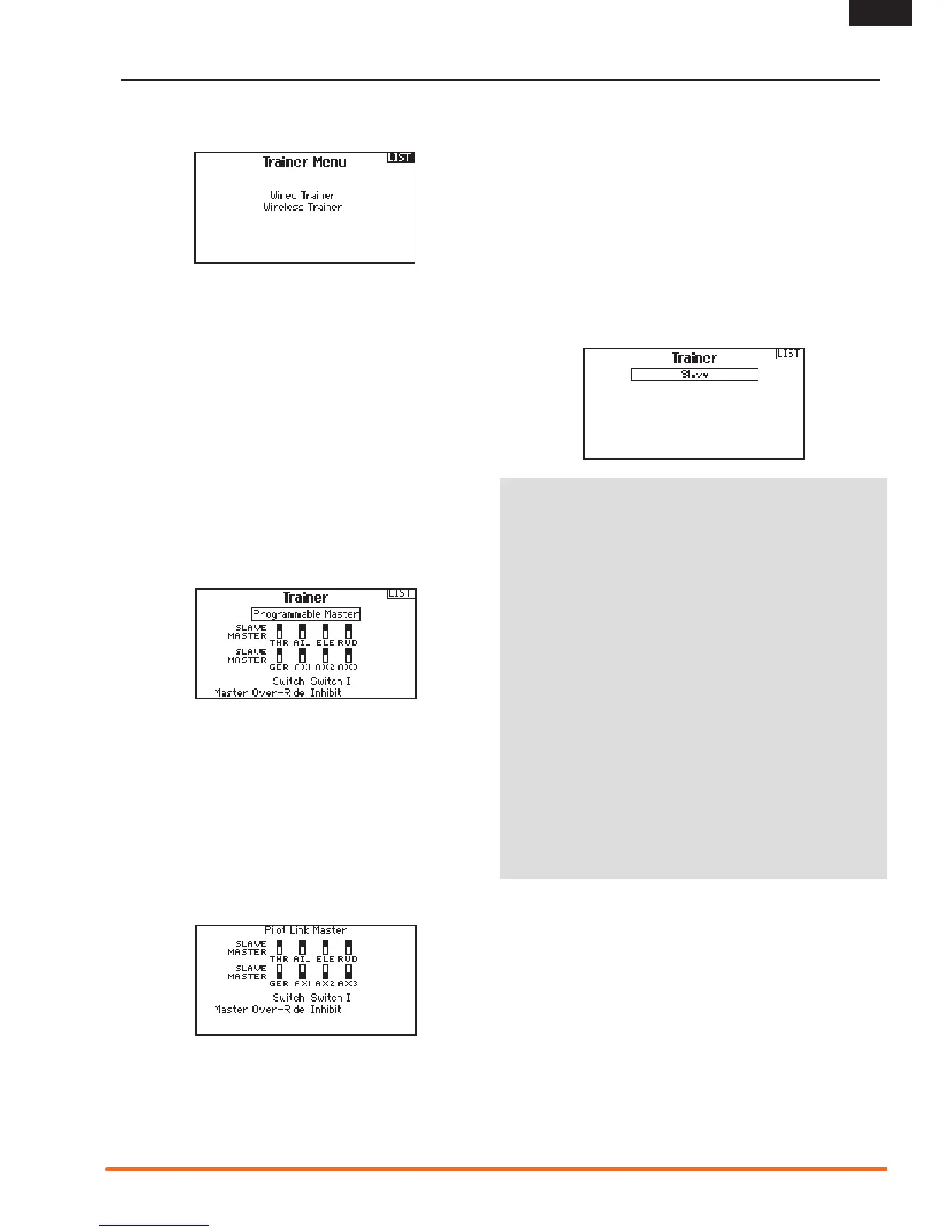

Wired Trainer
The 4 wired trainer modes include:
Inhibit
In Inhibit, the slave transmitter must have the same programming
as the master transmitter (e.g., servo reversing, travel adjust,
sub-trim, trims).
Programmable Master
Programmable mode enables you to program the master
transmitter to transfer any or all individual channels when you
activate the trainer switch. This mode is ideal for beginners
learning to control individual channels while the master transmitter
maintains control of all other channels.
The slave transmitter should be in Inhibit mode, if available.
The Master and Slave transmitters MUST have the same
programming.
Pilot Link Master
Pilot Link Master enables you to program the master transmitter
to transfer any or all individual channels when you activate the
trainerswitch.PilotLinkMasterisidealforcomplexmodels,
as the master transmitter can maintain control of all secondary
functions—forexampleightmodes,retracts,apsandbrakes.
Secondary functions can be individually assigned to the Slave
transmitter as necessary. It is not necessary to have model
programming in the slave transmitter.
It may be necessary for the slave transmitter to be in Inhibit mode
to allow trim changes to transfer over from the master transmitter.
Slave
Use Slave mode when using the DX9 as a slave transmitter and
Pilot Link is active in the master transmitter.
DX9 Wired Trainer Operation
1. Bind the master transmitter to the model.
2.Connectthetrainercord(SPM6805)tothebackofthemaster
transmitter.
3. Make sure the master and slave transmitter battery packs are
fully charged.
4. Make sure the slave transmitter is powered off. The slave
transmitter receives power when you connect the trainer cord.
5.Connectthetrainercordtotheslavetransmitter.
6. The slave transmitter screen displays information but does not
send a signal to the model.
7. Press the trainer button on the master transmitter to transfer
model control from the master to the slave.
8. While moving the trainer switch between the off and on
positions, watch for movement on the control surfaces. Adjust
the trims as necessary before flying.
9. Release the trainer button and the master transmitter regains
control of the model.
Master Override
TheMasterOverridefeatureenablestheinstructortoimmediately
regain control of the model by moving the control sticks. After you
activateMasterOverride,theslavetransmittercannotcontrolthe
model until you reset the trainer switch. To reset the trainer switch:
1.MovethetrainerswitchtotheOFFposition.
2.MovethetrainerswitchtotheONpositiontoactivatetheslave
transmitter.
TRAINER
The DX9 features a programmable trainer function with 4 wired trainer modes and 2 wireless trainer modes. The transmitter assigns
the trainer function to Switch I.

Spektrum DX9 Specifications

General

Interface	RF Wireless
Product color	Black
Brand compatibility	Spektrum
Compatible products	Spektrum BLADE 450X BNF[BLH4380A]\\r 300 CFX BNF Basic[BLH4650]\\r 300 CFX BNF Basic[BLH4650]\\r Nano QX FPV RTF w/ SAFE[BLH7200]
Backlight color	Blue
Built-in display	Yes
Maximum range	- m
Frequency band	2.4 GHz
Language version	English
Channels quantity	9 channels
Number of devices supported	1
Battery capacity	2000 mAh

Weight and Dimensions

Weight	- g
