SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN
V-Tail Differential (Air and Sail Types only)

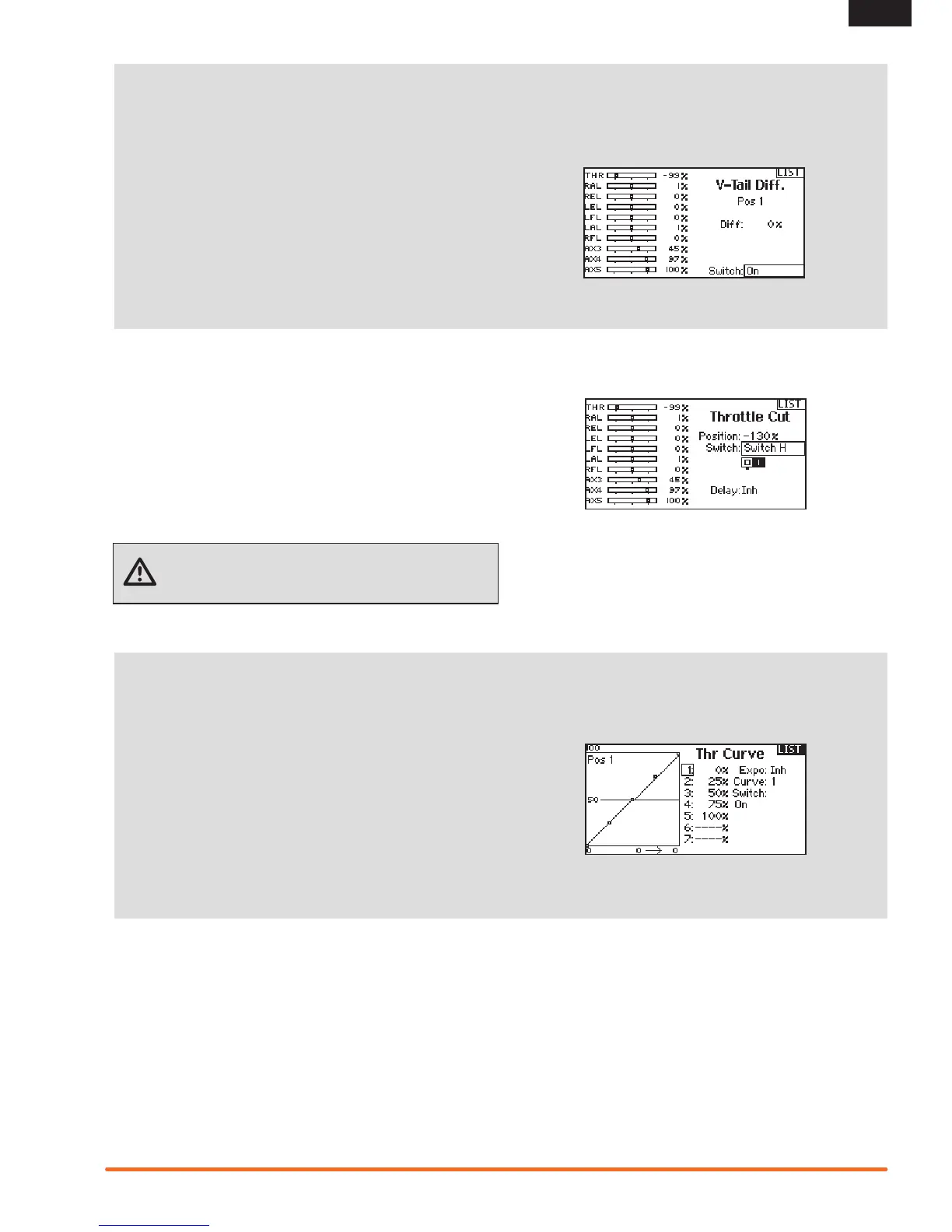

The V-Tail Differential screen enables you to increase or decrease
the amount of differential between control surface throws.
Positive Differential values decrease the amount of “down” travel
without affecting the “up” travel on the opposite control surface.
Negative Differential values decrease the amount of “up” travel
without affecting the amount of “down” travel on the opposite
control surface.
The V-Tail Differential menu option only appears when V-Tail A or
V-Tail B is active in Aircraft Type.
To adjust the V-Tail Differential:
1. Scroll to Switch and press the scroll wheel. Scroll right to
selectOn(Differentialisalwayson)orassignthedifferentialto
a switch position.
2. Press the scroll wheel a second time to save the selection.
3. Scroll to Diff: and press the scroll wheel once to change the value.
4. Press the scroll wheel again to save the selection.
Throttle Cut
TheThrottleCutmenuoptionenablesyoutoassignaswitch
positiontostopanengineormotor.ThrottleCutactivates
regardless of Flight Mode.
WhenyouactivateThrottleCut,thethrottlechannelmovestothe
pre-programmedposition(normallyOff).
You may need to use a negative value to move the Throttle
channel to the off position.
CAUTION:
Always test the model after making
adjustments to make sure the model responds to
controls as desired.
Throttle Curve
YoucanusetheThrottleCurvemenuoptiontooptimizethe
throttleresponse.Amaximumof7pointsareavailableonthe
throttle curve.
To add points to a Throttle Curve:
1. Move the throttle stick to the position where you wish to add
the new point.
2. Scroll to Add Pt. and press the scroll wheel to add the point.
To remove points from a Throttle Curve:
1. Move the Throttle stick until the cursor is near the point you
wish to remove.
2. Scroll to Remove Pt. and press the scroll wheel once to
remove the point.
If you program multiple throttle curves and you wish to edit one of
thecurves,thatcurvemustbeactiveintheThrottleCurvescreen
before you can make any changes.
