SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN
Function
1
Antenna 1
2
Right Trim
3
Right Knob
4
Switch E
5
Switch H
6
Switch G
7
Switch F
8
Throttle/Aileron Stick
(Mode 1)
Elevator/Aileron Stick
(Mode 2)
Throttle/Rudder Stick
(Mode 3)
Elevator/Rudder Stick
(Mode 4)
Function
9
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
10
Aileron Trim (Mode 1,2)
Rudder Trim (Mode 3,4)
11
Roller
12
ChargePort
13
Speaker Grill
14
On/OffSwitch
15
LCD
16
ClearButton
17
Back Button
18
SDCardSlot
19
Neck Strap Mount
Function
20
Rudder Trim (Mode 1,2)
Aileron Trim (Mode 3,4)
21
Elevator Trim (Mode 1,3)
Throttle Trim (Mode 2,4)
22
Elevator/Rudder Stick
(Mode 1)
Throttle/Rudder Stick
(Mode 2)
Elevator/Aileron Stick
(Mode 3)
Throttle/Aileron Stick
(Mode 4)
23
SwitchC
24
Switch B
25
Switch A
Function
26
Switch D
27
Bind/Switch I
28
Left Trim
29
LED
The transmitter comes with a thin,
clear plastic film applied to some
front panels for protection during
shipping. Humidity and use may
causethislmtocomeoff.Carefully
remove this film as desired.

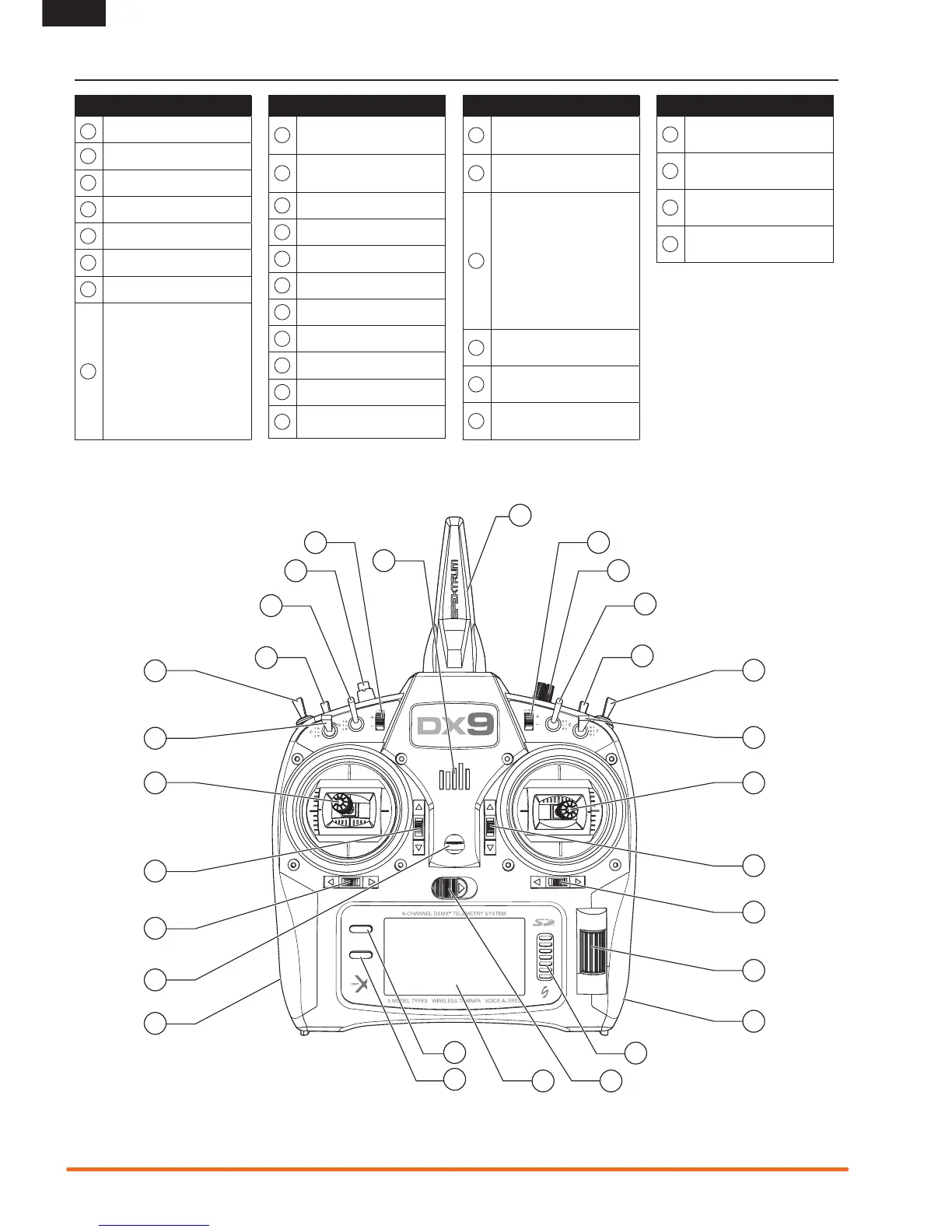

Transmitter Functions
CLEAR
BACK
™
®
3
20
19
18
21
22
23
24
1
29
2
4
5
6
8
7
9
10
11
12
13
1415
16
17
25
26
27
28
