SPEKTRUM DX9 • TRANSMITTER INSTRUCTION MANUAL
EN
The DX9 has an internal charger designed to charge the included
2-cell Li-Ion battery at a charge rate of 200mAh. The charge port
on the right side of the transmitter is not polarity-dependent.
NOTICE:NeverconnectanexternalbatterychargertoyourDX9
transmitter. If you wish to charge the Li-Ion battery using a Lipo/
Li-Ion charger, you must remove the battery from the transmitter
before charging.

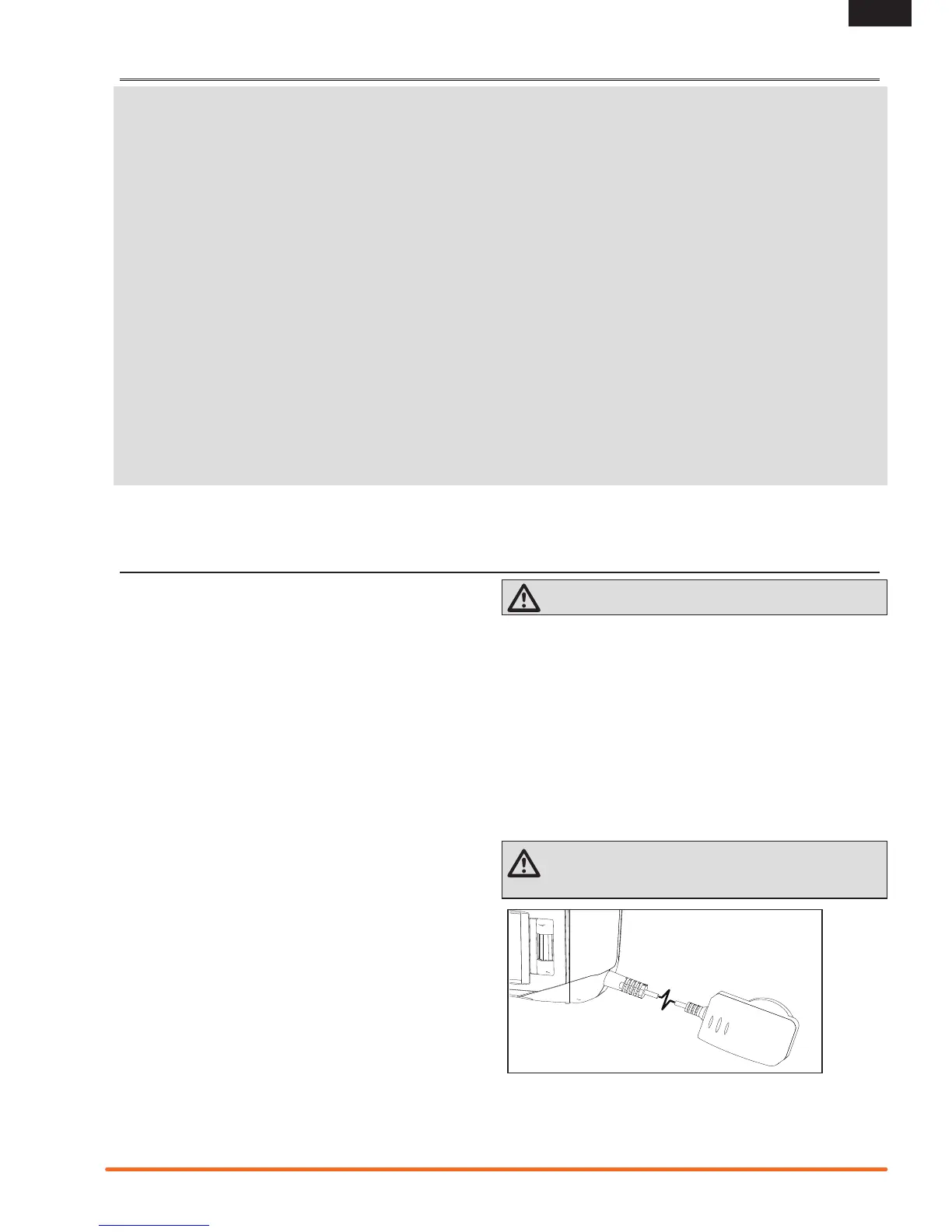

The first time you charge the transmitter battery, the charge time
may be 12–15 hours. Always charge the transmitter on a heat-
resistant surface.
1. Power off your transmitter.
2.Connectthepowersupplyconnectortothetransmittercharge
port.
3.Connectthepowersupplytoapoweroutletusingthe
appropriate adapter.
4. The blue LED on the front of the transmitter turns on during
charging and turns off when the battery is fully charged.
5. Disconnect the transmitter from the power supply once
charging is complete and disconnect the power supply from
the power outlet.
CAUTION: Never leave a charging battery unattended.
LED indicators
The blue LED indicates the transmitter battery is charging. The
orange LED indicates the transmitter is powered on and there is
radio transmission.
Battery Alarm
The System Settings Screen allows you to change the battery
type and low alarm settings. See “System Settings” for more
information.
• An alarm will sound when the battery reaches the low voltage
limit (4.3V for NiMH, 6.4V for LiPo/Li-Ion).
CAUTION: Never change the low voltage limit for
LiPo/Li-Ion batteries from 6.4V. Doing so could over-
discharge the battery and damage both battery and transmitter.
Battery and Charging Precautions and Warnings
Failuretoexercisecautionwhileusingthisproductandcomplywiththefollowingwarningscouldresultinproductmalfunction,electrical
issues,excessiveheat,FIRE,andultimatelyinjuryandpropertydamage.
• Read all safety precautions and literature prior to use of this product
• Never allow minors to charge battery packs
• Never drop charger or batteries
• Never attempt to charge damaged batteries
• Never attempt to charge a battery pack containing different types of batteries
• Never charge a battery if the cable has been pinched or shorted
• Never allow batteries or battery packs to come into contact with moisture at any time
• Neverchargebatteriesinextremelyhotorcoldplaces(recommendedbetween50–80degreesFor10–27degreesC)orplacein
direct sunlight
• Always disconnect the battery after charging, and let the charger cool between charges
• Always inspect a new battery before charging
• Always terminate all processes and contact Horizon Hobby if the product malfunctions
• Always keep batteries and charger away from any material that could be affected by heat (such as ceramic and tile), as they can
get hot
• Always end the charging process if the charger or battery becomes hot to the touch or starts to change form (swell) during the
charge process
Transmitter Batteries
Charging Your Transmitter
