SPX FLOW Johnson pump - Page 47

KGE/EN (1711) 6.5 Parts 45
KGE

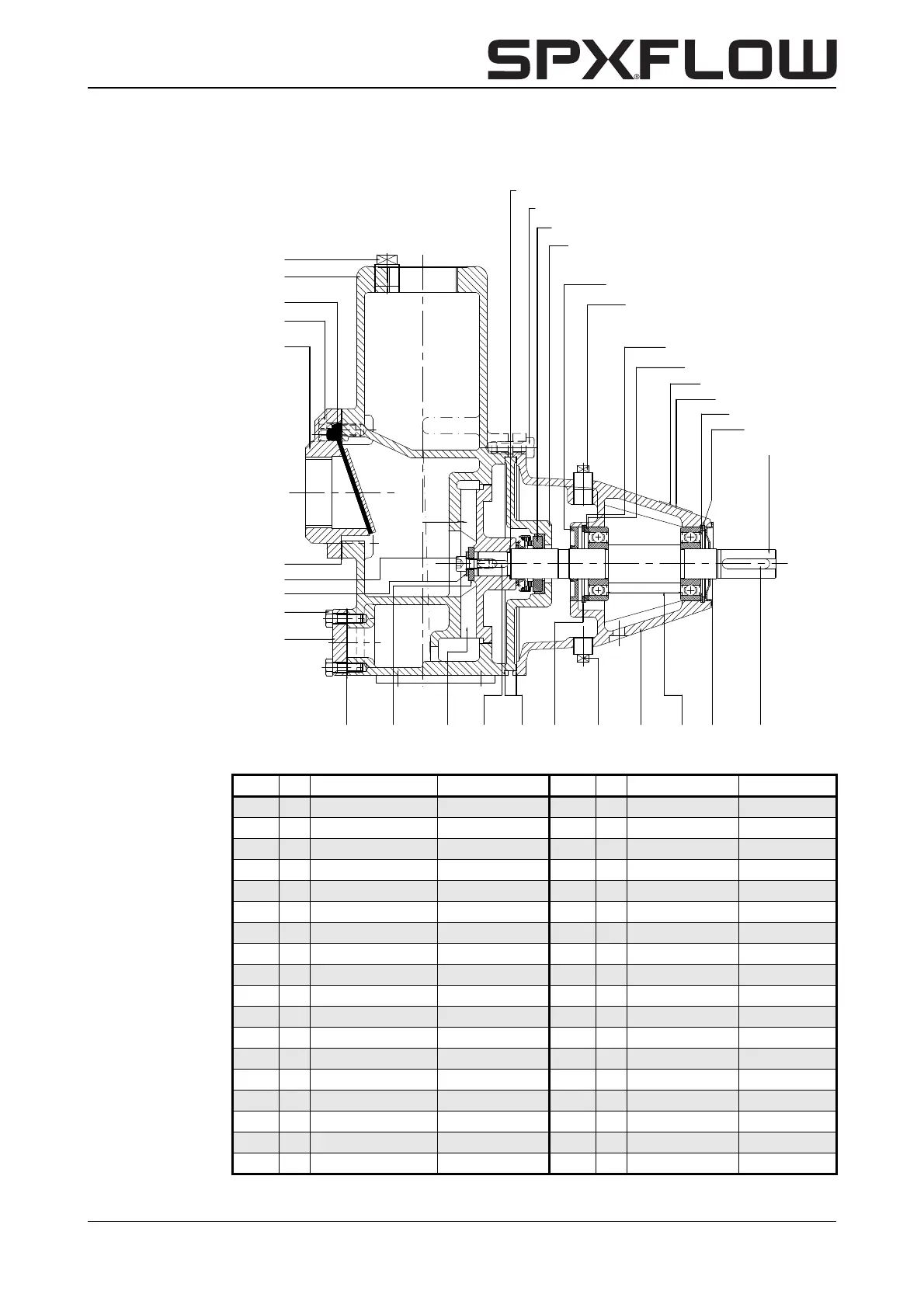

10.3 Parts list and sectional drawing KGE, Bearing bracket 0, KGE12(b)-5 /
KGE12-6
Figure 19:
Item Qty Description Material Item Qty Description Material
0100 1 pump casing cast iron 0620 1 plug steel
0120* 1 impeller cast iron/bronze 0640 1 window cover cast iron
0130 1 suction cover cast iron 0650* 1 gasket --
0140 1 intermediate cover cast iron 0660 6 hex bolt steel
0210* 1 valve rubber + steel 1010 1 bearing housing cast iron
0220 4 ring stainless steel 1050 1 pump shaft stainless steel
0230 1 washer steel 1060 1 bearing cover steel
0240* 2 gasket -- 1070 1 support ring steel
0250* 1 gasket -- 1080 1 washer steel
0300 1 name plate stainless steel 1090 1 washer steel
0310* 1 seal ring carbon 1100 1 circlips spring steel
0320* 1 counterseal ring ceramic 1110 1 Seeger “L” ring spring steel
0500 4 hex bolt steel 1120 1 key steel
0510 4 hex bolt steel 1150* 1 lip seal NBR
0520 1 Allen bolt steel 1160 1 drain plug steel
0540 4 self tapping rivet aluminium 1170* 2 ball bearing steel
0550 1 key stainless steel 1200 1 plug polypropylene
0560 1 spring washer spring steel
06200620
01000100
02100210
05100510
01300130
02500250
05200520
05600560
06600660
06400640
06500650 02300230 01200120 05500550 02400240 11001100 11601160 10101010 11701170 10601060 11201120
02200220
05000500
03100310
01400140
10501050
10701070
10901090
11501150
12001200
05400540
03000300
10801080
11101110
0.10.1
0.50.5MAX.MAX.
MIN.MIN.
