SPX FLOW Johnson pump - Parts List and Sectional Drawing KGE, Bearing Bracket 0, KGE16-3

KGE/EN (1711) 6.5 Parts 47
KGE

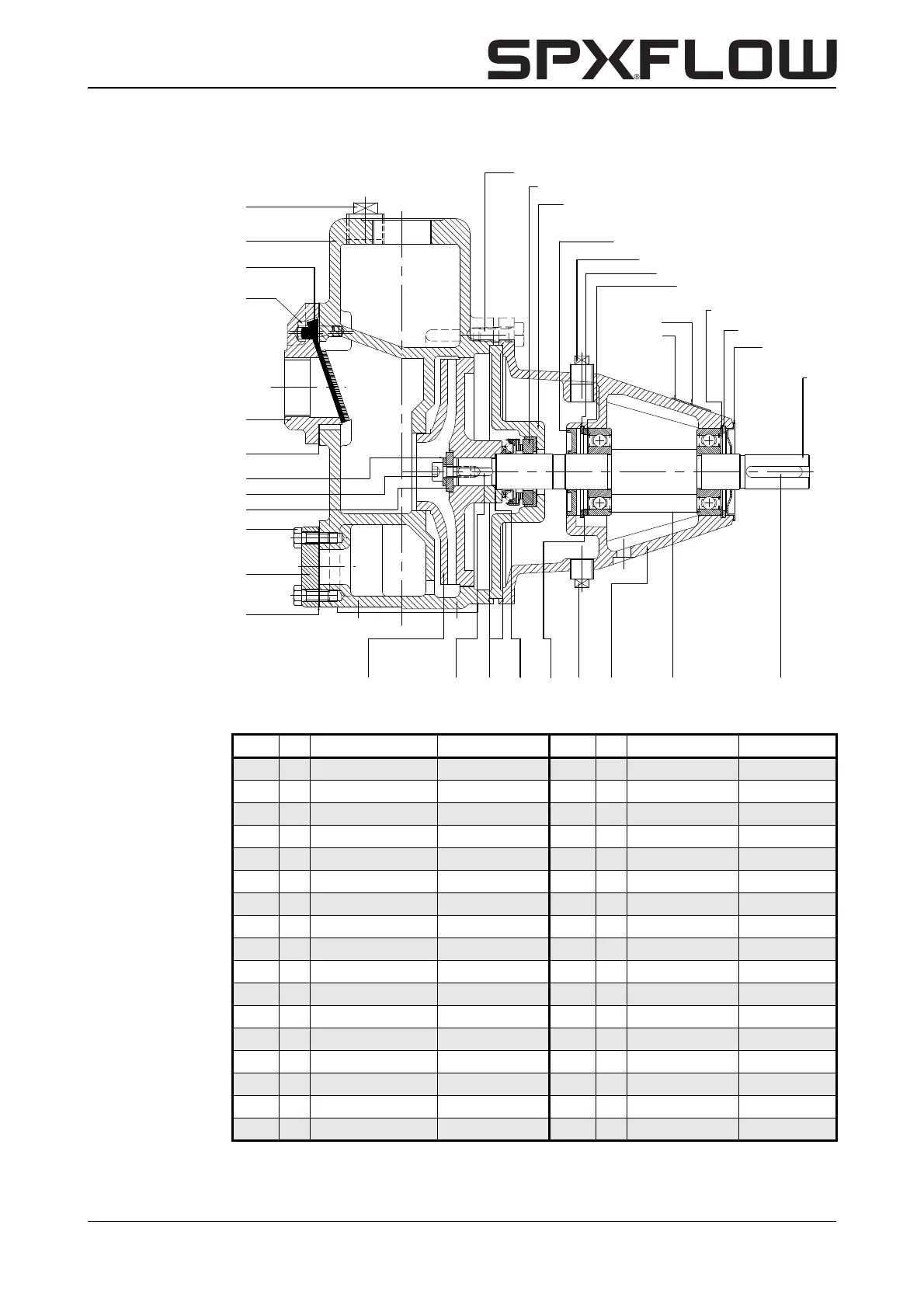

10.5 Parts list and sectional drawing KGE, Bearing bracket 0, KGE16-3
Figure 21:
Item Qty Description Material Item Qty Description Material
0100 1 pump casing cast iron 0620 1 plug steel
0120* 1 impeller cast iron/bronze 0640 1 window cover cast iron
0130 1 suction cover cast iron 0650* 1 gasket --
0140 1 intermediate cover cast iron 0660 6 hex bolt steel
0210* 1 valve rubber + steel 1010 1 bearing housing cast iron
0230 1 washer steel 1050 1 pump shaft stainless steel
0240* 2 gasket -- 1060 1 bearing cover steel
0250* 1 gasket -- 1070 1 support ring steel
0300 1 name plate stainless steel 1080 1 washer steel
0310* 1 seal ring carbon 1090 1 washer steel
0320* 1 counterseal ring ceramic 1100 1 circlips spring steel
0500 4 hex bolt steel 1110 1 Seeger “L” ring spring steel
0510 4 hex bolt steel 1120* 1 key steel
0520 1 Allen bolt steel 1150* 1 lip seal NBR
0540 4 self tapping rivet aluminium 1160 1 drain plug steel
0550 1 key stainless steel 1170* 2 ball bearing steel
0560 1 spring washer spring steel 1200 1 plug polypropylene
06200620
01000100
02100210
05100510
01300130
02500250
05600560
05200520
02300230
06600660
06400640
06500650
01200120 05500550 02400240
02200220
10701070 11601160 10101010 11701170 11201120
05000500
03100310
01400140
11501150
12001200
11001100
10901090
10801080
11101110
10601060
10501050
05400540
03000300
