SPX FLOW Johnson pump - Parts List and Sectional Drawing KGE+, Bearing Bracket 0+, KGE14-8

46 Parts KGE/EN (1711) 6.5

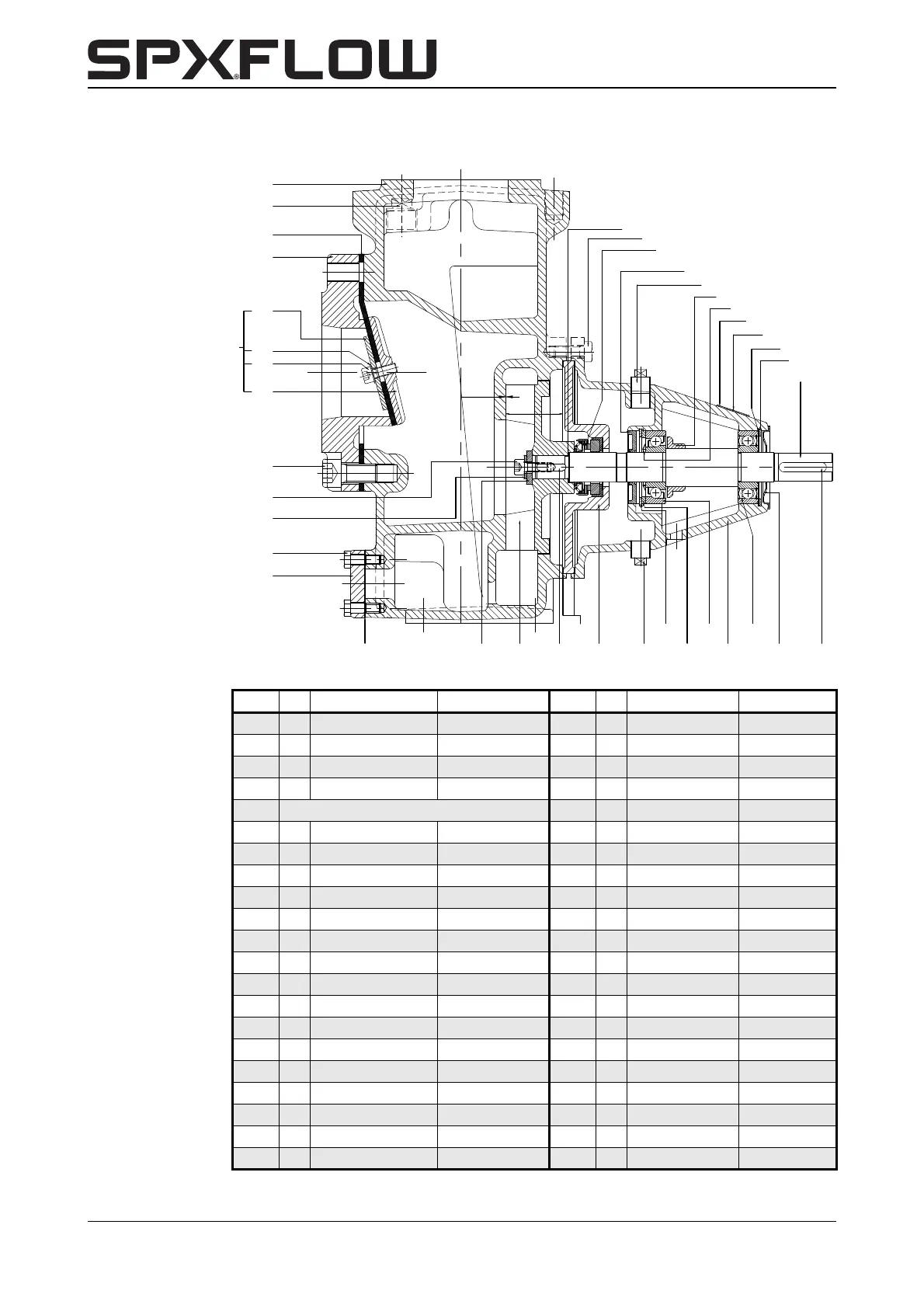

10.4 Parts list and sectional drawing KGE+, Bearing bracket 0+, KGE14-8
Figure 20:
Item Qty Description Material Item Qty Description Material
0100 1 pump casing cast iron 0560 1 spring washer spring steel
0120* 1 impeller cast iron/bronze 0610* 1 splash ring NBR
0130 1 suction cover cast iron 0620 1 plug steel
0140 1 intermediate cover cast iron 0640 1 window cover cast iron
0210* valve assembly 0650* 1 gasket --
0211 1 valve NBR 0660 6 hex bolt steel
0212 1 valve plate cast iron 1010 1 bearing housing cast iron
0213 1 washer cast iron 1050 1 pump shaft stainless steel
0214 1 Allen bolt steel 1060 1 bearing cover steel
0215 1 washer steel 1070 1 support ring steel
0220 4 ring stainless steel 1080 1 washer steel
0230 1 washer steel 1090 1 nilos ring steel
0240* 2 gasket -- 1100 1 circlips spring steel
0250* 1 gasket -- 1110 1 Seeger “L” ring spring steel
0300 1 name plate stainless steel 1120 1 key steel
0310* 1 seal ring carbon 1150* 1 lip seal NBR
0320* 1 counterseal ring ceramic 1160 1 drain plug steel
0510 4 Allen bolt steel 1170* 1 ball bearing steel
0520 1 Allen bolt steel 1180* 1 ball bearing steel
0540 4 self tapping rivet aluminium 1200 1 plug polypropylene
0550 1 key stainless steel
MINMIN
MAXMAX0.50.5
0.10.1
4848
-0.4-0.4
06500650
01000100
02100210
02200220
06200620
02110211
01300130
02130213
02150215
02140214
02120212
05100510
05200520
05600560
06600660
06400640
05000500
03100310
11501150
12001200
06100610
10901090
03000300
05400540
10801080
11101110
10501050
02300230 01200120 05500550 01400140 11601160
02400240
11001100 11801180 11701170
10601060 112011201010101010701070
