SPX FLOW Johnson pump - KGE Parts List (Bracket 00)

44 Parts KGE/EN (1711) 6.5

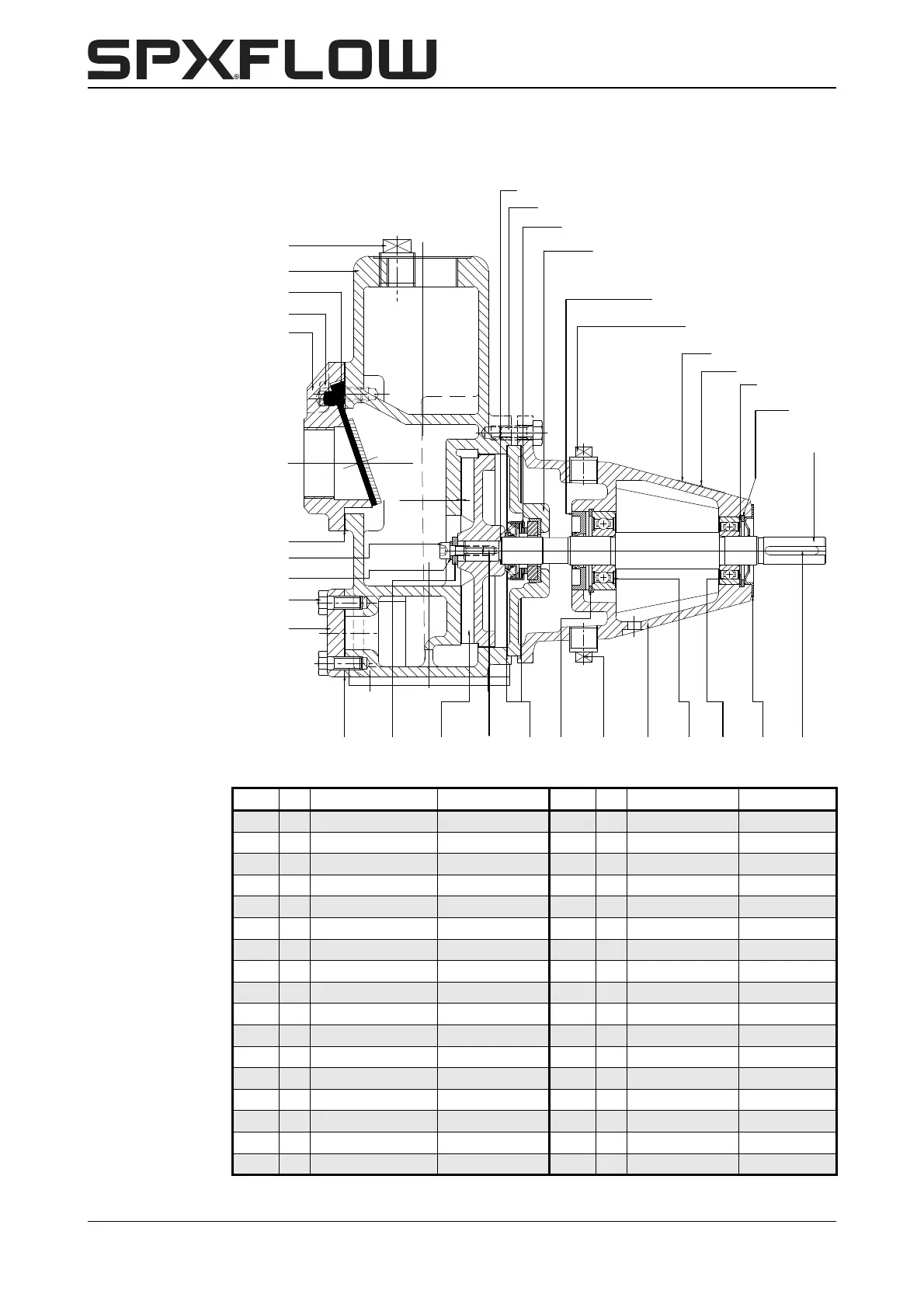

10.2 Parts list and sectional drawing KGE, Bearing bracket 00, KGE11-3 /
KGE11-4
Figure 18:
Item Qty Description Material Item Qty Description Material
0100 1 pump casing cast iron 0560 1 spring washer spring steel
0120* 1 impeller cast iron/bronze 0620 1 plug steel
0130 1 suction cover cast iron 0640 1 window cover cast iron
0140 1 intermediate cover cast iron 0650* 1 gasket --
0210* 1 valve rubber + steel 0660 6 hex bolt steel
0220 4 ring stainless steel 1010 1 bearing housing cast iron
0230 1 washer steel 1050 1 pump shaft stainless steel
0240* 2 gasket -- 1060 1 bearing cover steel
0250* 1 gasket -- 1080 1 ring steel
0300 1 name plate stainless steel 1100 1 Seeger “L” ring spring steel
0310* 1 seal ring carbon 1110 1 circlips spring steel
0320* 1 counterseal ring ceramic 1120 1 key steel
0500 4 hex bolt steel 1150* 1 lip seal NBR
0510 4 hex bolt steel 1160 1 drain plug steel
0520 1 Allen bolt steel 1170* 1 ball bearing steel
0540 4 self tapping rivet aluminium 1180* 1 ball bearing steel
0550 1 key stainless steel 1200 1 plug polypropylene
06200620
01000100
02100210
05100510
01300130
02500250
05200520
05600560
06400640
06600660
06500650 02300230 01200120 02400240 11001100 11601160 10101010 11801180 11701170 10601060 11201120
02200220
05000500
03100310
01400140
11501150
12001200
10801080
10501050
11101110
MINMIN
MAXMAX
0.30.3
0.70.7
05400540
03000300
05500550
