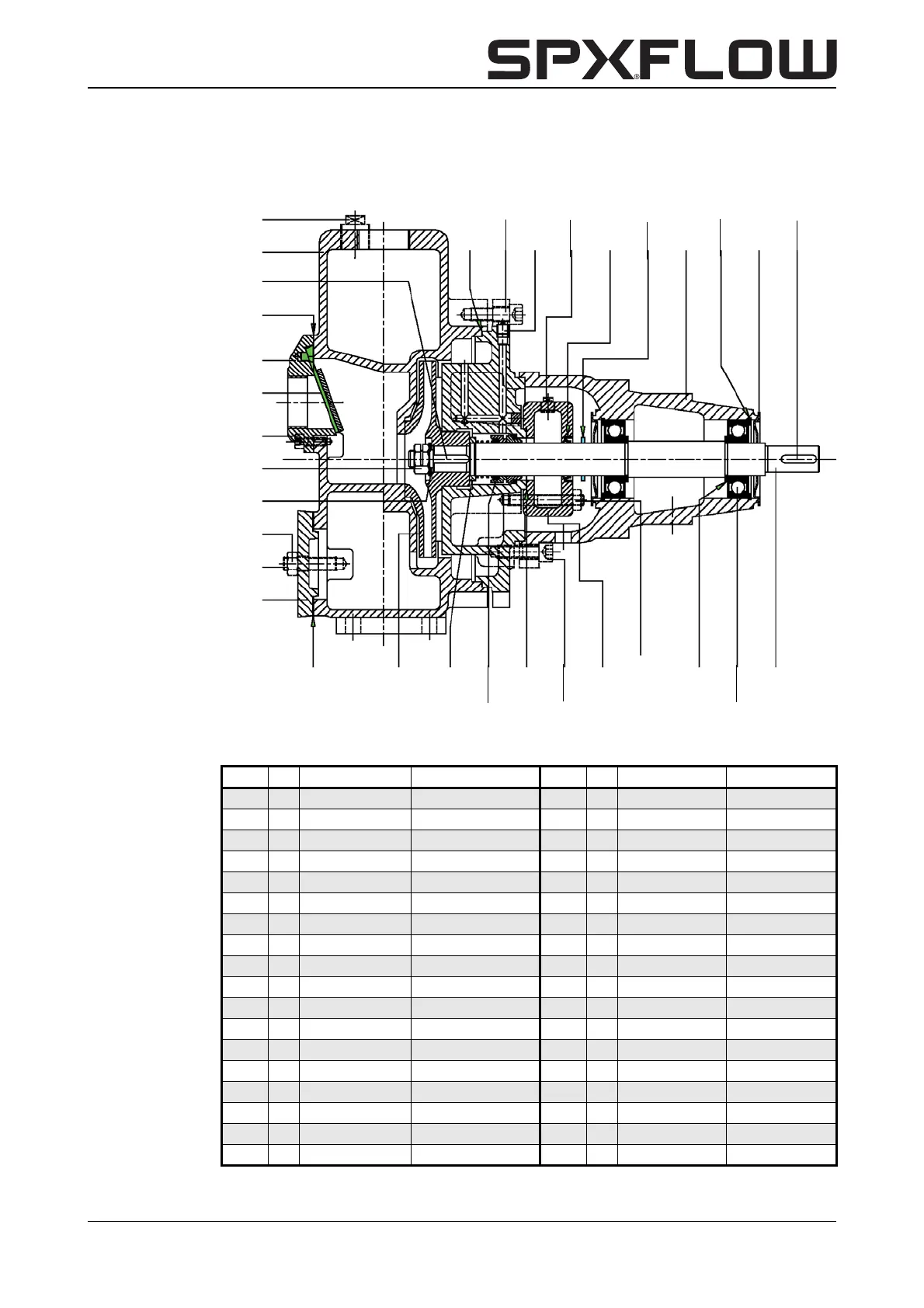

10.7 Parts list and sectional drawing KGE, Bearing bracket 1, KGE18-4 /
KGE20b-5
Figure 23:
Item Qty Description Material Item Qty Description Material
0110 1 pump casing cast iron 0760 2 nut steel
0120 1 shaft seal cover cast iron 0770 8 Allen screw steel
0130* 1 impeller cast iron 0780 4 Allen screw steel
0140 1 suction cover cast iron 0820 4 Allen screw steel
0150 1 oil reservoir cast iron 0830 2 stud steel
0160 1 cleaning cover cast iron 0840 2 nut steel
0170* 1 suction valve steel / rubber 0860 1 spacer sleeve bronze
0380* 1 mechanial seal BVVGG 2010 1 bearing bracket cast iron
0410* 1 gasket for 0150 -- 2100* 1 pump shaft stainless steel
0420* 1 gasket for 0140 -- 2110 2 bearing cover steel
0430* 1 gasket for 0160 rubber 2120 1 washer stainless steel
0440* 1 gasket for 0110 -- 2300* 1 key stainless steel
0700 1 plug forgeable cast iron 2310* 1 key steel
0701 1 plug synthetic material 2320* 2 ball bearing --
0710 2 plug forgeable cast iron 2330 2 inner circlip spring steel
0720 1 plug forgeable cast iron 2350 1 impeller nut galvanised steel
0730* 1 lip seal rubber 2360 2 filling ring steel
0750 2 stud steel 2370 1 deflector rubber
