SPX S2045 - Page 15

Waukesha Cherry-Burrell Introduction
12/2010 95-03080 Page 15
S200 Series Capacities
Dimensions
Sanitary
Model
Inlet Size
inch (mm)
Outlet Size
inch (mm)
Maximum Capacity
GPM (M3/HR)
S2045
1.5 (40) 1.5 (40) 190 GPM (43)
2.0 (50) 1.5 (40) 190 GPM (43)
S2065LV
1.5 (40) 1.5 (40) 195 GPM (44)
2.0 (50) 1.5 (40) 195 GPM (44)
2.5 (65) 1.5 (40) 194 GPM (44)
S2065 2.5 (65) 2.0 (50) 400 GPM (91)
S2065HV 3.0 (75) 2.0 (50) 500 GPM (114)
S2075 3.0 (75) 1.5 (40) 300 GPM (68)
S2085LV 2.0 (50) 1.5 (40) 140 GPM (32)
S2085
3.0 (75) 2.5 (65) 900 GPM (204)
4.0 (100) 2.5 (65) 900 GPM (204)
S2092 3.0 (75) 2.0 (50) 700 GPM (159)

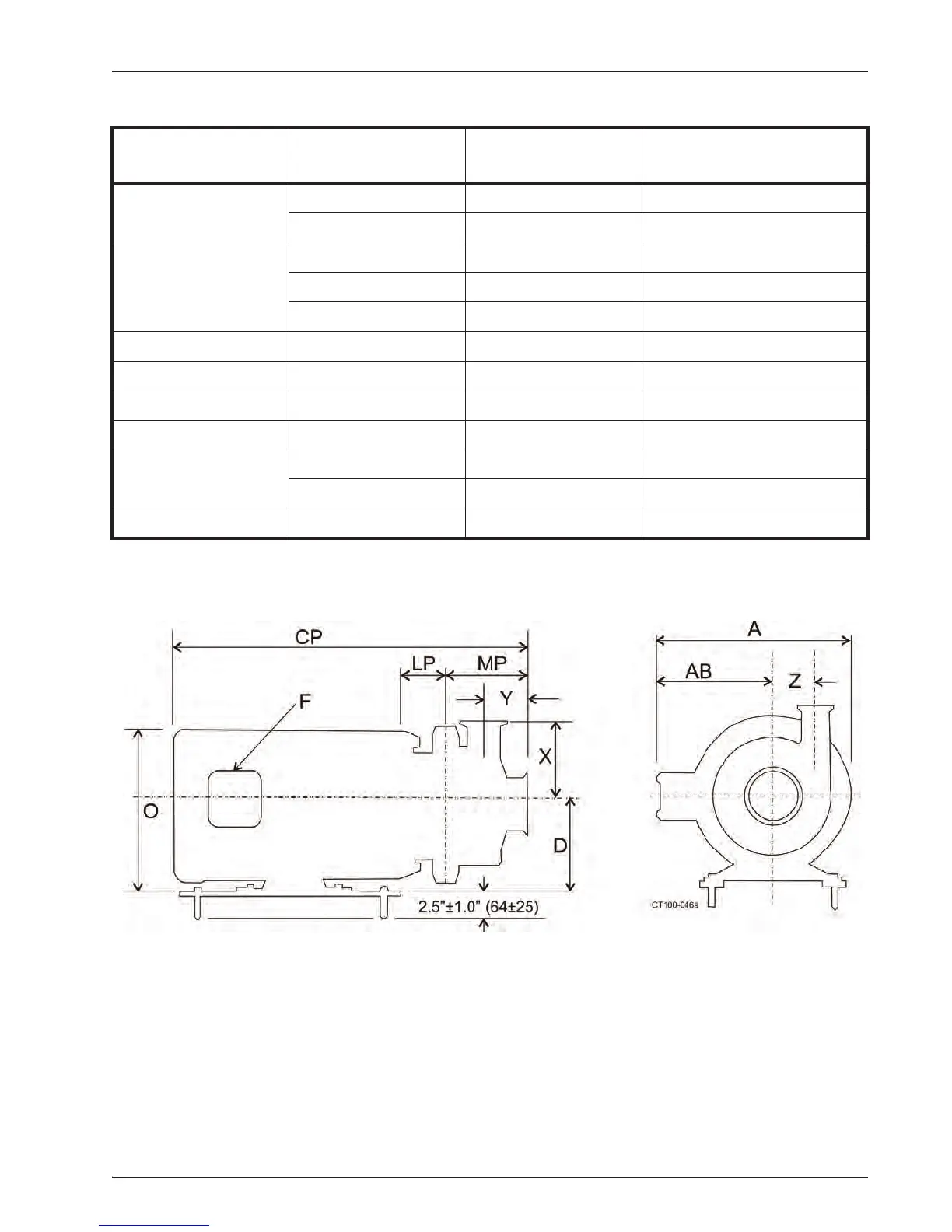

Figure 6 - Foot Print Dimensions
