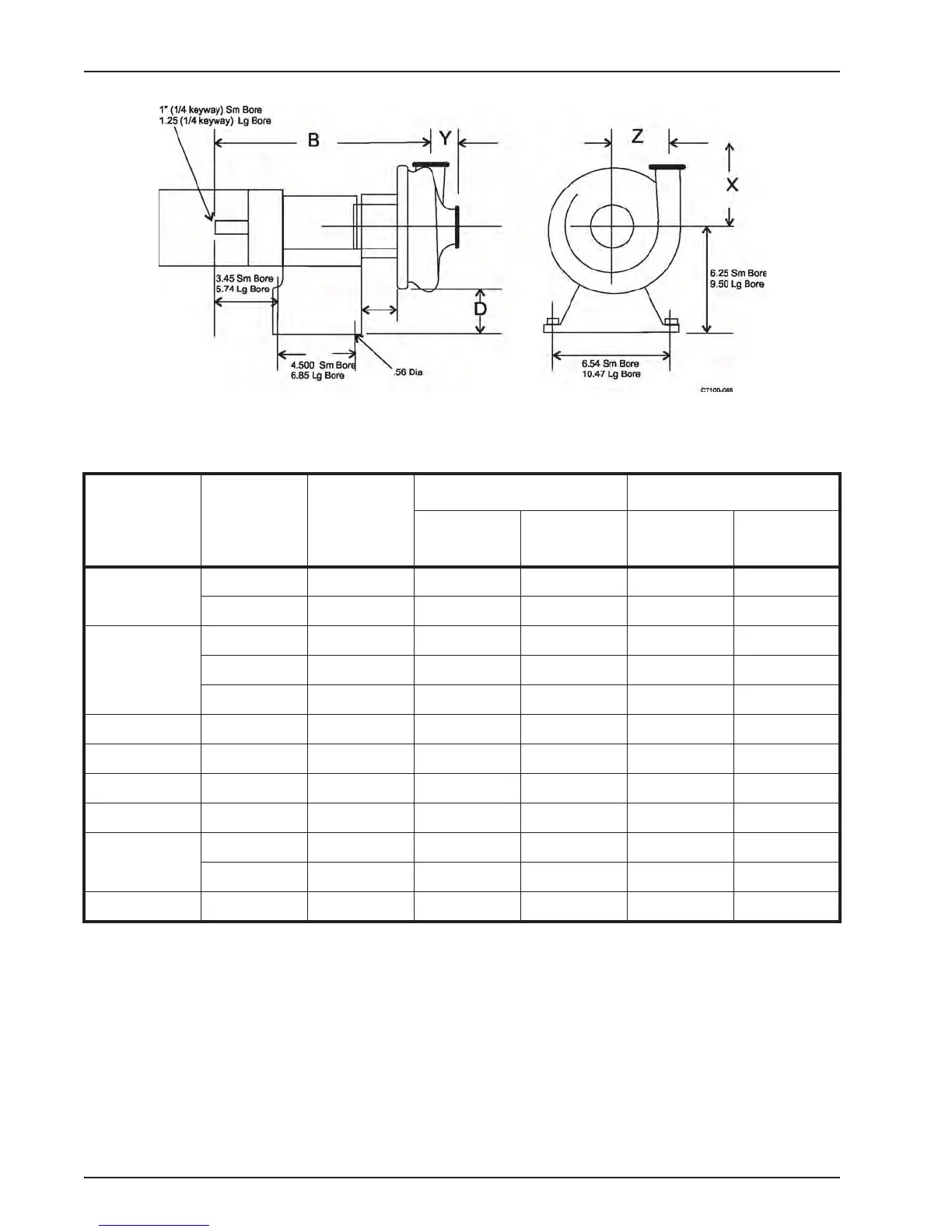

Figure 7 - Style "B" and "C" Less Base Plate
Table 8: Table of Dimensions for Figure 7
Model
Inlet
inch (mm)
Outlet
inch (mm)
BD
Sm Bore
inch (mm)
Lg Bore
inch (mm)
Sm Bore
inch(mm)
Lg Bore
inch (mm)
PS2045
1.5 (40) 1.5 (40) 15.0 (381) -- 2.7 (69) --
2.0 (50) 1.5 (40) 15.0 (381) -- 2.7 (69) --
PS2065LV
1.5 (40) 1.5 (40) 14.9 (378) 18.6 (472) 1.7 (43) 4.9 (124)
2.0 (50) 1.5 (40) 14.9 (378) 18.6 (472) 1.7 (43) 4.9 (124)
2.5 (65) 1.5 (40) 14.9 (378) 18.6 (472) 1.7 (43) 4.9 (124)
PS2065 2.5 (65) 2.0 (50) 15.1 (384) 18.9 (480) 1.7 (43) 4.9 (124)
PS2065HV 3.0 (75) 2.0 (50) 15.2 (386) 18.9 (480) 1.7 (43) 4.9 (124)
PS2075 3.0 (75) 1.5 (40) 14.7 (373) 18.4 (472) .6 (15) 3.9 (99)
PS2085LV 2.0 (50) 1.5 (40) 14.7 (373) 18.4 (472) .6 (15) 3.9 (99)
PS2085
3.0 (75) 2.5 (65) 15.1 (384) 18.9 (480) .6 (15) 3.9 (99)
4.0 (100) 2.5 (65) 15.1 (384) 18.9 (480) .6 (15) 3.9 (99)
PS2092 3.0 (75) 2.0 (50) 14.9 (378) 18.6 (472) .6 (15) 3.9 (99)
Introduction Waukesha Cherry-Burrell
Page 18 95-03080 12/2010
NOTE: Dimensions X,Y, and B apply to pumps with clamp connections.
