Table 13: Pedestal Pump (Less Base and Motor)
Pump Model
PEDESTAL
S2045
lbs
(kg)
S2065LV
lbs
(kg)
S2065
lbs
(kg)
S2065HV
lbs
(kg)
S2075
lbs
(kg)
S2085LV
llbs
(kg)
S2085
lbs
(kg)
S2092
lbs
(kg)
SMALL
BORE
92
(41)
106
(48)
108
(48.9)
114
(51.7)
131
(59.4)
131
(59.4)
125
(56.6)
125
(56.6)
LARGE
BORE
-- -- -- -- -- --
235
(1
06.5)
235
(106.5)
Table 14: Channel Base Weight
(Add to Pedestal Weight)
Motor
Small Bore
lbs (kg)
Large Bore
lbs (kg)
56 30 (13.6) --
143/145T 31 (14.6) --
182/184T 32 (14.5) 50 (22.6)
213/215T 33 (14.9) 50 (22.6)
254/256T 40 (18.1) 52 (23.5)
284/286T 35 (15.8) 62 (28.1)
284/286TS -- 64 (29.0)
324/326T -- 65 (29.4)
324/326TS -- 65 (29.4)
364TS -- 65 (29.4)
Introduction Waukesha Cherry-Burrell
Page 22 95-03080 12/2010

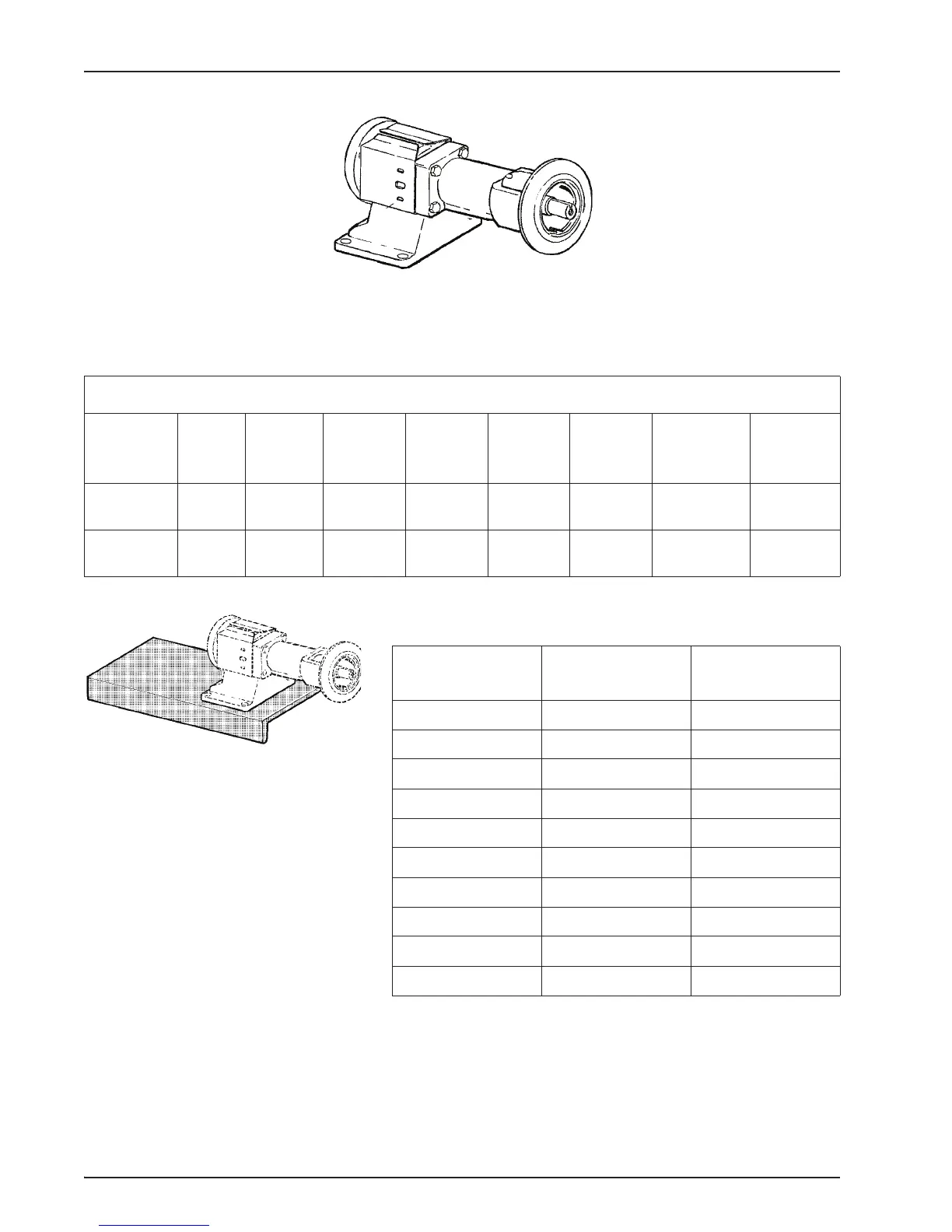

Figure 11 - Pedestal Pump (Less Base and Motor)
