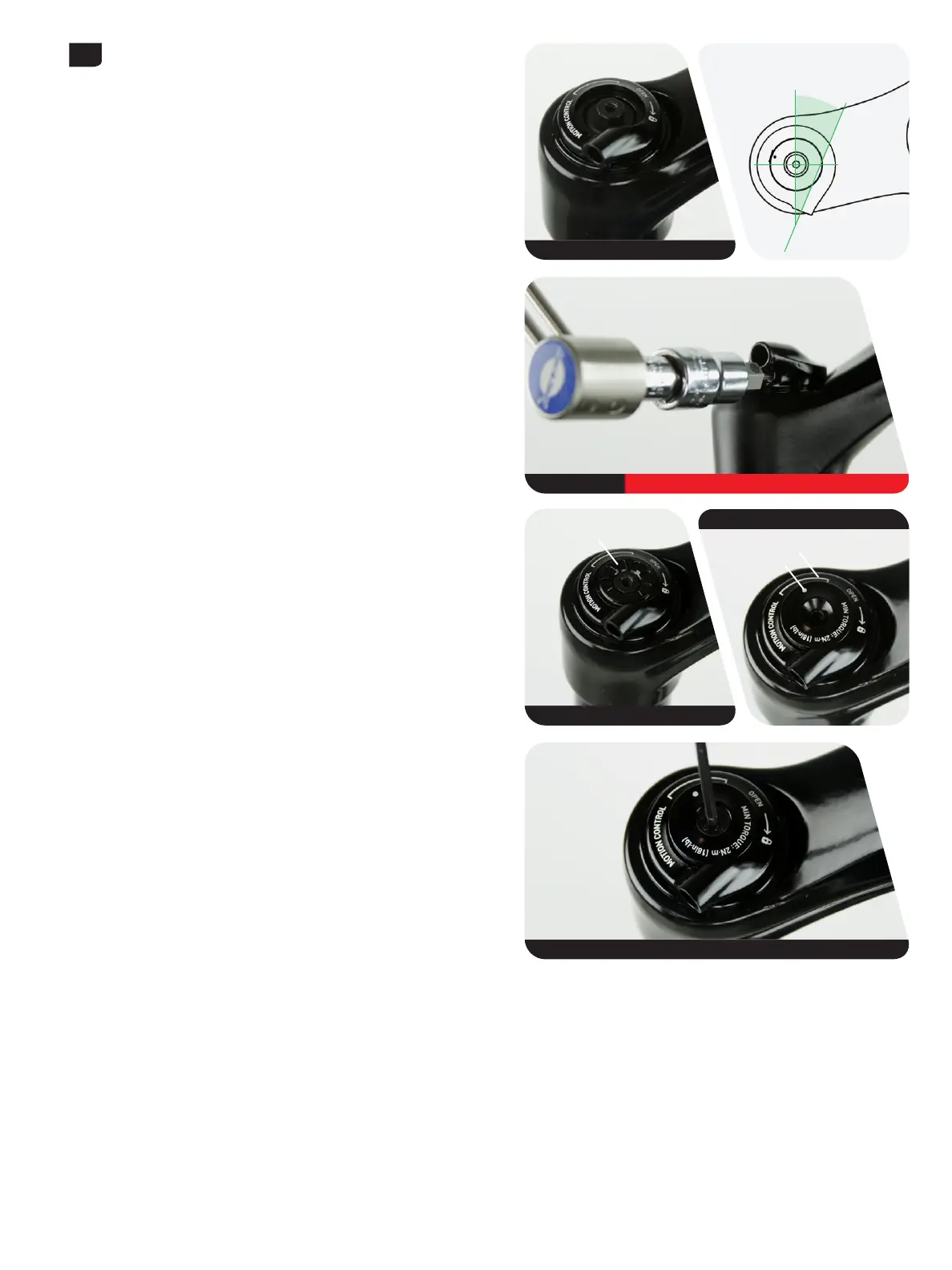

Compression Damper Installation
Remote - 2019 RL R / 2019 TK R: Install the cable stop collar with the
housing guide in the 6 o'clock forward position, ≈20°-30° degrees from
center.
Tighten the set screw.
Install the lower remote spool (A) onto the hex adjuster. Install the
upper spool with the alignment indicator dot (B) positioned within the
range bracket (C).
Install the spool retaining screw, thread it in and stop when it contacts
the upper spool. Do not tighten the screw.
9b
2019 RL R / TK R
20°-30°
2 mm 0.25-0.6 N·m (2.2-5.3 in-lb)
2019 RL R / TK R
2019 RL R / TK R
A
B
C
2 mm 2019 RL R / TK R
