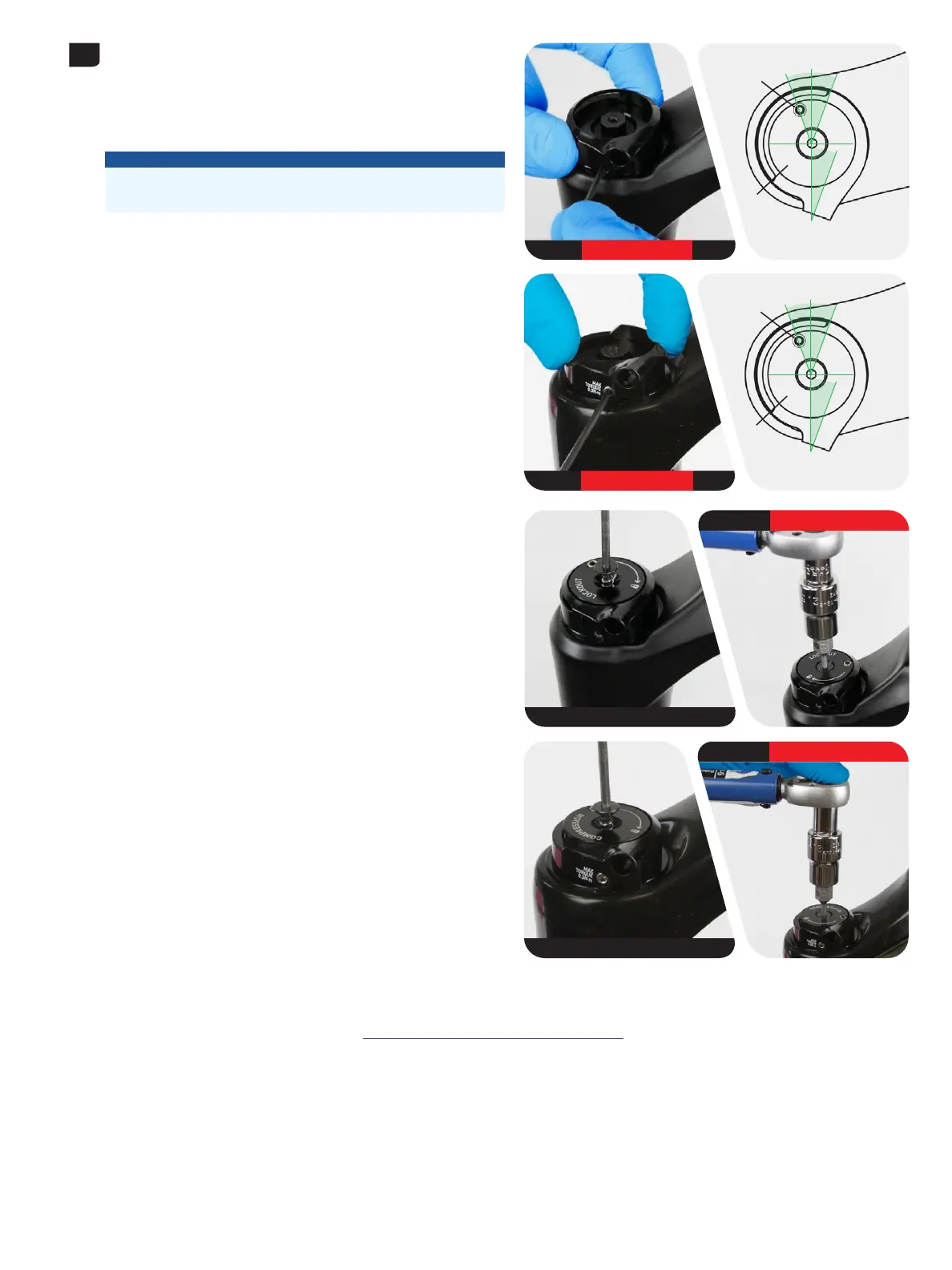

Compression Damper Installation
Remote - 2020-2021 Judy Silver TK R / 2020 30 Silver TK R /
2020-2021 Recon RL R / 2020-2021 Recon TK R: Install the cable stop
collar with the housing guide in the forward position 20 degrees from
center.
Tighten the set screw finger tight, or to the specified torque. Confirm
the cable stop does not feel loose or have any free play.
NOTICE
To avoid permanent damage to the set screw threads, do not over-
tighten the set screw.
Install the remote spool (A) onto the hex adjuster with the cable set
screw (B) 20-40 degrees from the edge of the cable stop groove,
towards the front of the crown.
Install and tighten the retaining screw.
Consult the applicable remote user manual at www.sram.com/en/rockshox/products/remotes for cable and remote installation instructions.
9c
2 mm 0.1-0.3 N·m (1.8-2.6 in-lb) 2020
20°-40°
20°
A
B
2 mm 0.1-0.3 N·m (1.8-2.6 in-lb) 2021
20°-40°
20°
A
B
2.5 mm 1.4 N·m (12 in-lb)
2.5 mm 1.4 N·m (12 in-lb)
