93
Lower L
eg Installation

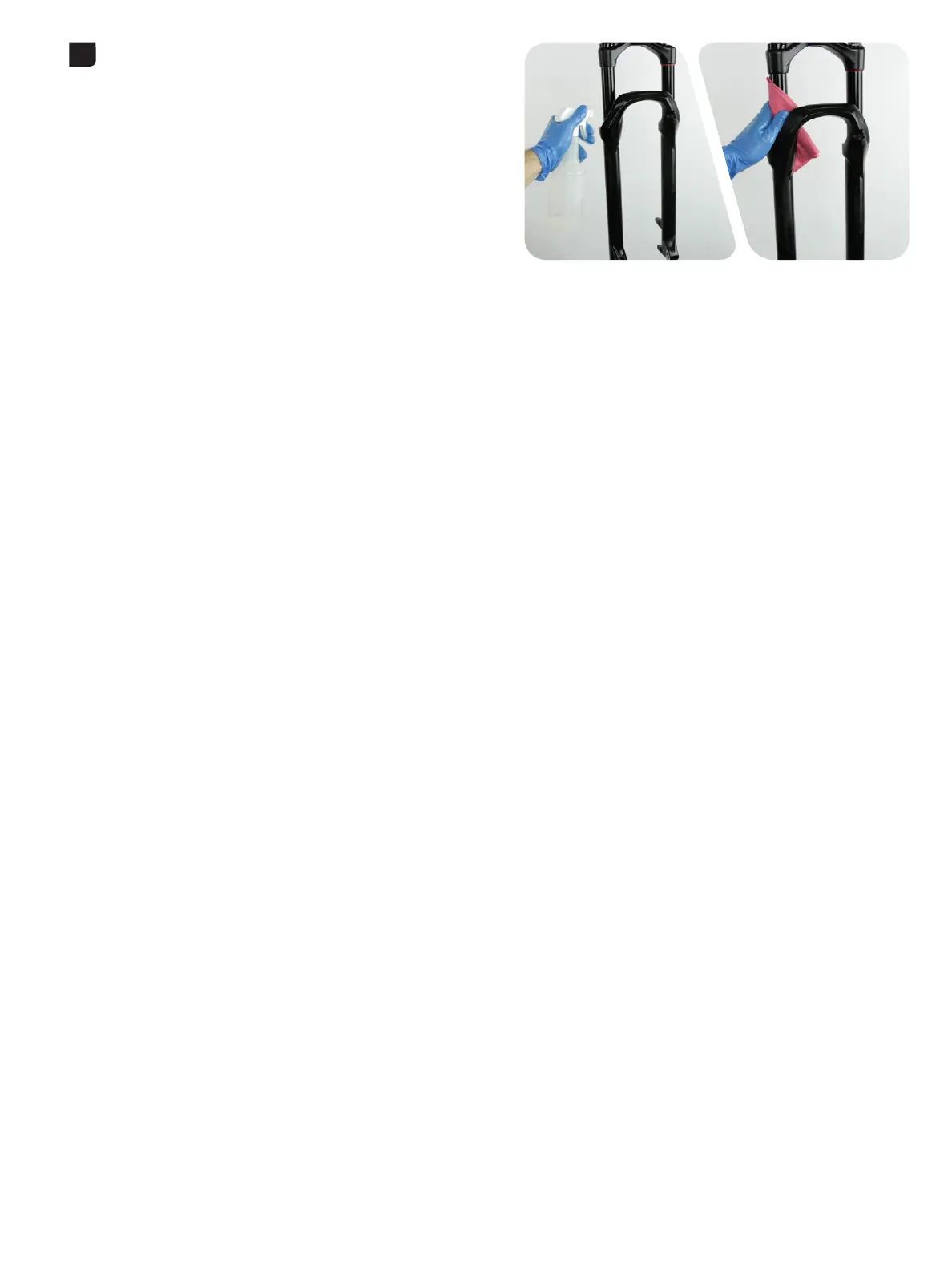

Clean the entire fork.
This concludes the service of your RockSho
x suspension fork.
9
92
94
Table of Contents
Default Chapter
4
Table of Contents
4
Rockshox Service
6
Part Preparation
6
Service Procedures
6
Parts, Tools, and Supplies
7
Recommended Service Intervals
8
Record Your Settings
8
Torque Values
8
Oil Volume and Lubricant - 2018
9
Oil Volume and Lubricant - 2019
10
Oil Volume and Lubricant - 2020
11
Oil Volume and Lubricant - 2021
12
Exploded View - 2018-2021 Judy Gold Rl - solo Air
13
Exploded View - 2018-2021 Judy Silver Tk - solo Air
14
Exploded View - 2021 Judy Tk - Coil
15
Exploded View - 2018-2020 30 Gold Rl / 2021 Judy Gold Rl - solo Air
16
Exploded View - 2018-2020 30 Silver Tk / 2021 Judy Silver Tk - solo Air
17
Exploded View - 2018-2020 30 Silver Tk / 2021 Judy Silver Tk - Coil
18
Exploded View - 2021 Recon Gold Rl - Debonair
19
Exploded View - 2018-2020 Recon Gold Rl - solo Air
20
Exploded View - 2018-2020 Recon Rl / 2021 Recon Silver Rl - solo Air
21
Exploded View - 2020 Recon Rl (Boost) / 2021 Recon Silver Rl (Boost) - solo Air
22
Exploded View - 2018-2020 Recon Tk / 2021 Recon Silver Tk - Coil
23
Exploded View - 2020 Recon Tk (Boost) / 2021 Recon Silver Tk (Boost) - Coil
24
Lower Leg Removal and Service
25
50/200 Hour Service
25
Lower Leg Removal
25
50 Hour Service
26
Lower Leg Service
27
200 Hour Service
29
Lower Leg Seal Service
29
Air Spring Service - Judy Gold, 30 Gold, Recon Gold
32
200 Hour Service
32
Air Spring Removal and Service - Gold
32
All-Travel Spacer Configurations (Optional)
38
All-Travel Spacers - Judy Gold, 30 Gold, Recon Gold - solo Air
38
Air Spring and All-Travel Spacer Configurations - Judy Gold, 30 Gold, Recon Gold - solo Air
39
Bottomless Tokens (Optional) - 2021 Recon Gold
40
All-Travel Spacers and Bottomless Tokens - 2021 Recon Gold - Debonair
40
Air Spring and All-Travel Spacer Configurations - 2021 Recon Gold
40
Bottomless Tokens Installation (Optional) - 2021 Recon Gold - Debonair
41
Air Spring Installation - Gold
42
Air Spring Service - Judy Silver, 30 Silver, Recon Silver Rl
46
Exploded View
46
200 Hour Service
47
Air Spring Removal and Service - Silver
47
All-Travel Spacer Configurations (Optional) - Silver
50
Travel Configurations - Judy Silver, 30 Silver, Recon Silver Rl
51
Air Spring Installation - Silver
52
Coil Spring Service - 30 Silver, Judy Silver, Recon Silver Tk
55
200 Hour Service
55
Coil Spring Removal and Service
55
Coil Spring Installation
57
Damper Service - Judy Gold, 30 Gold, Recon Gold
59
200 Hour Service
59
Damper Removal
59
Damper Service
65
Rebound Damper Installation
68
Compression Damper Installation
69
Damper Service - Judy Silver, 30 Silver, Recon Silver Rl, Recon Silver Tk
74
200 Hour Service
74
Damper Removal
74
Damper Service
80
Rebound Damper Installation
81
Compression Damper Installation
83
Lower Leg Assembly
89
50/200 Hour Service
89
Lower Leg Installation
89
4
