SECURING A CHILD RESTRAIN SYSTEM WITH “ISOFIX” SYSTEM AND “TETHER ANCHORAGE” SYSTEM*
ISOFIX system is a standardised method of fitting child seats that eliminates the need to use the stadard adult seatbelt to
secure the seat in the vehicle.
This enables a much more secure and positive location with the added benefit of easier and qucker installation. An ISOFIX-
seat can only be installed if it has vehicle-specific approval in accordance with the requirements of ECE-R44
Locations of ISOFIX Lower Anchors and Top
Tether
Top Tether

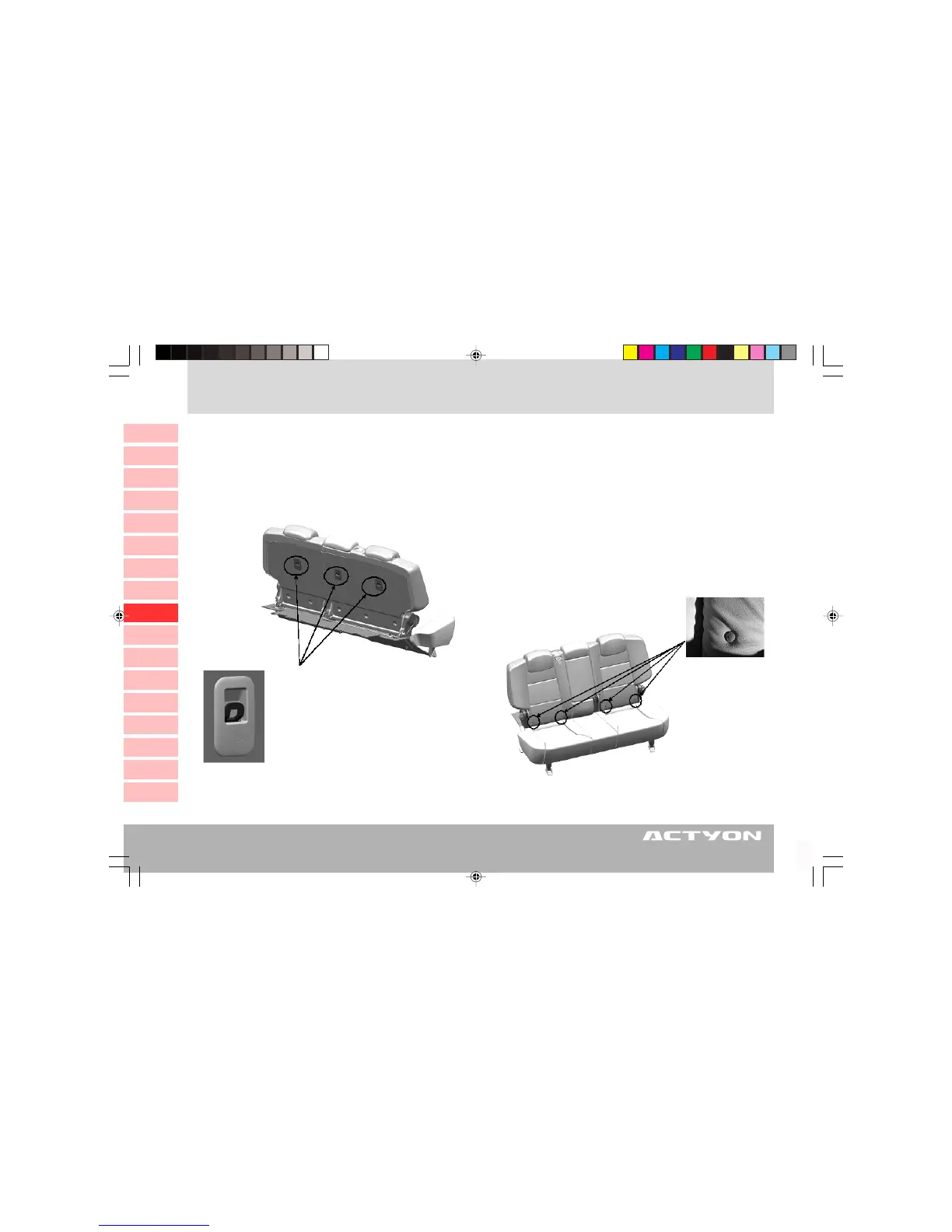

1. Two ISOFIX lower anchors seat are installed at bottom of
seatback at each side seat as shown in the figure.
2. The ISOFIX lower anchors can be identified by the sym-
bol (13 mm of diameter) attached on the top surface.
3. Three ISOFIX top tethers are installed at the upper side
of seatback.
The ISOFIX lower anchor is ex-
posed when you widen the space
between seatback and cushion.
