FUSE AND RELAY BOX
If any of the electrical system components do not operate, check its corresponding fuse. If the fuse is blown, replace it with the
same capacity.

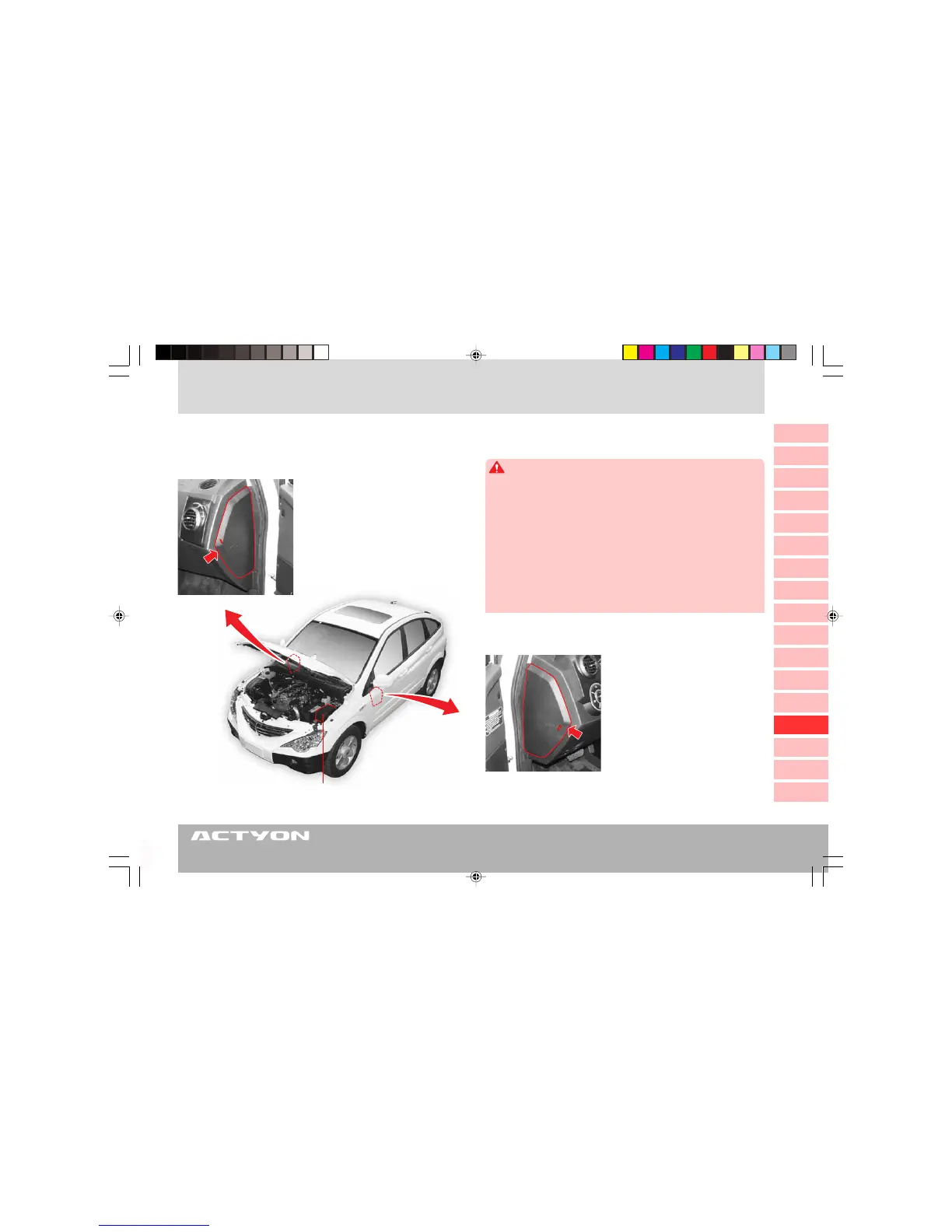

Engine Compartment
Fuse and Relay Box
The fuse box is located at the
right side of the instrument
panel. To access the interior
fuse box, open the passenger’s
door and remove the fuse box
cover with a screwdriver.
The fuse box is located at the
left side of the instrument
panel. To access the interior
fuse box, open the driver’s door
and remove the fuse box cover
with a screwdriver.
Interior Fuse and Relay Box
Interior Fuse and Relay Box
• When an electrical system does not operate, check its fuse first. If
a fuse is blown, check its capacity and replace it with the same
capacity.
• If you remove an electric system’s fuse while the system is
operating, the electrical equipment could be damaged. Always re-
move the ignition key from the ignition switch and turn off all electric
devices.
• Always replace a specified fuse with the same rating.
• If a newly inserted fuse blows again after a short time, have
the electrical system checked and repaired by a Ssangyong
Dealer or Ssangyong Authorized Service Center.
