Air Bag Operation
XX
XX
X The air bag inflates when:
• In response to a severe frontal impact, the driver’s and front
passenger’s air bags deploy at the same time to supple-
ment the seat belts to prevent or reduce any personal injuries.
XX
XX
X The air bag can inflate when:
• Underbody impact from the road surface; impact against
the curb at a very high speed; dropping impact onto the
road surface with a large angle
XX
XX
X The air bag does not inflate when:
• Rollover, side impact or rear impact
• If the severity of impact to the vehicle is not significant.
XX
XX
X The air bag seldom inflates when:
• Oblique impact, rollover
• Weak impact in which the sensor is unable to detect (under
the inflation requirements)
• Impact against narrow objects such as a utility pole or a tree
• The vehicle falls into a drainage or a puddle
• The front of the vehicle crashes into a high impact point
vehicle such as a truck
• Impact on the hood by falling stones
• The air bag warning lamp is on
• Moderate or severe impact to the middle of the vehicle body’s
side structure. In that case, only the side curtain air bags deploy.

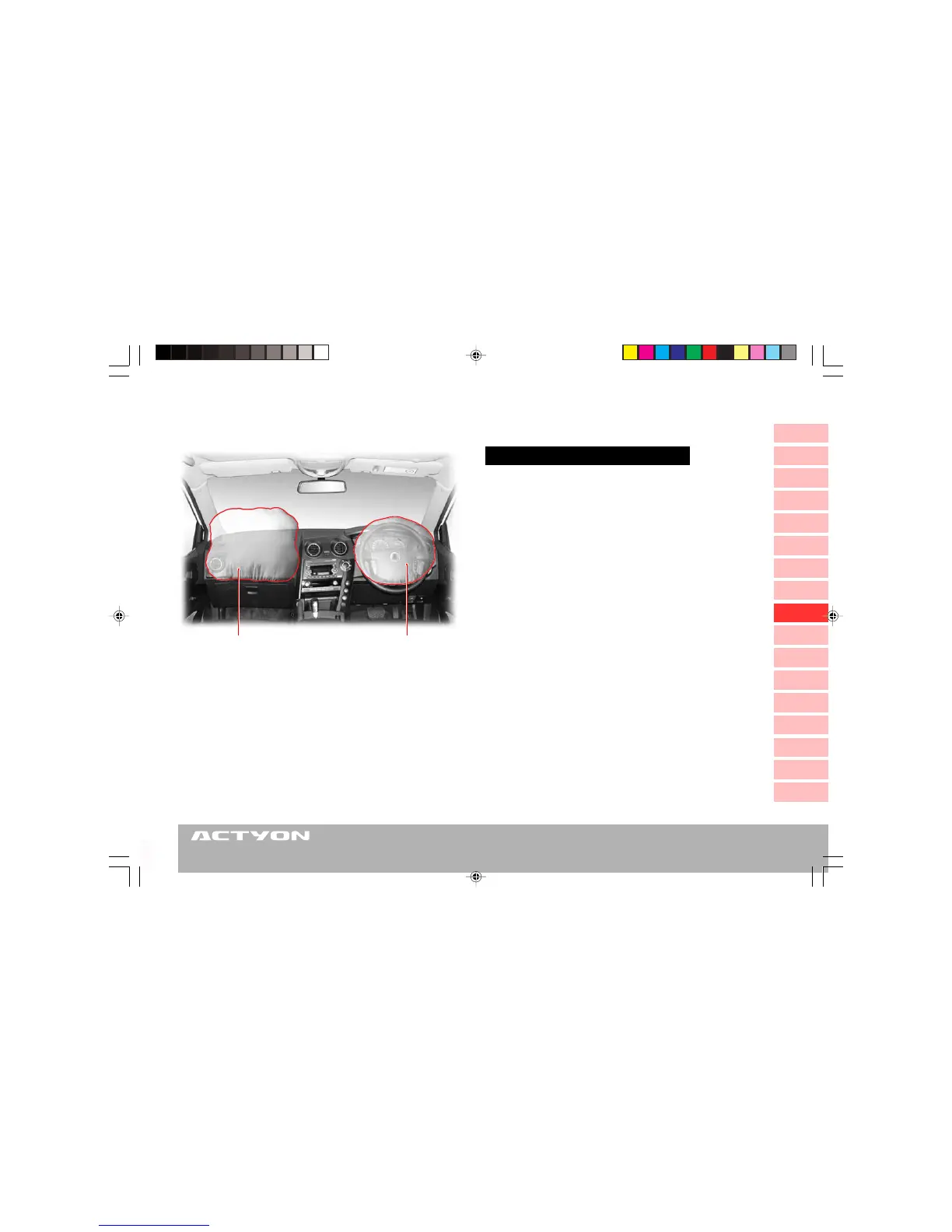

Driver’s Air Bag
The driver’s air bag is lo-
cated at center of the
steering wheel.
Passenger’s Air Bag*
The front passenger’s air bag
is located on the dashboard.
FRONT AIR BAGS
Pretensioner (for Front Seat)*
When front air bags deploy, the seat belt
pretensioners simultaneously work too.
