INSTRUMENT CLUSTER
5-3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
NOTE

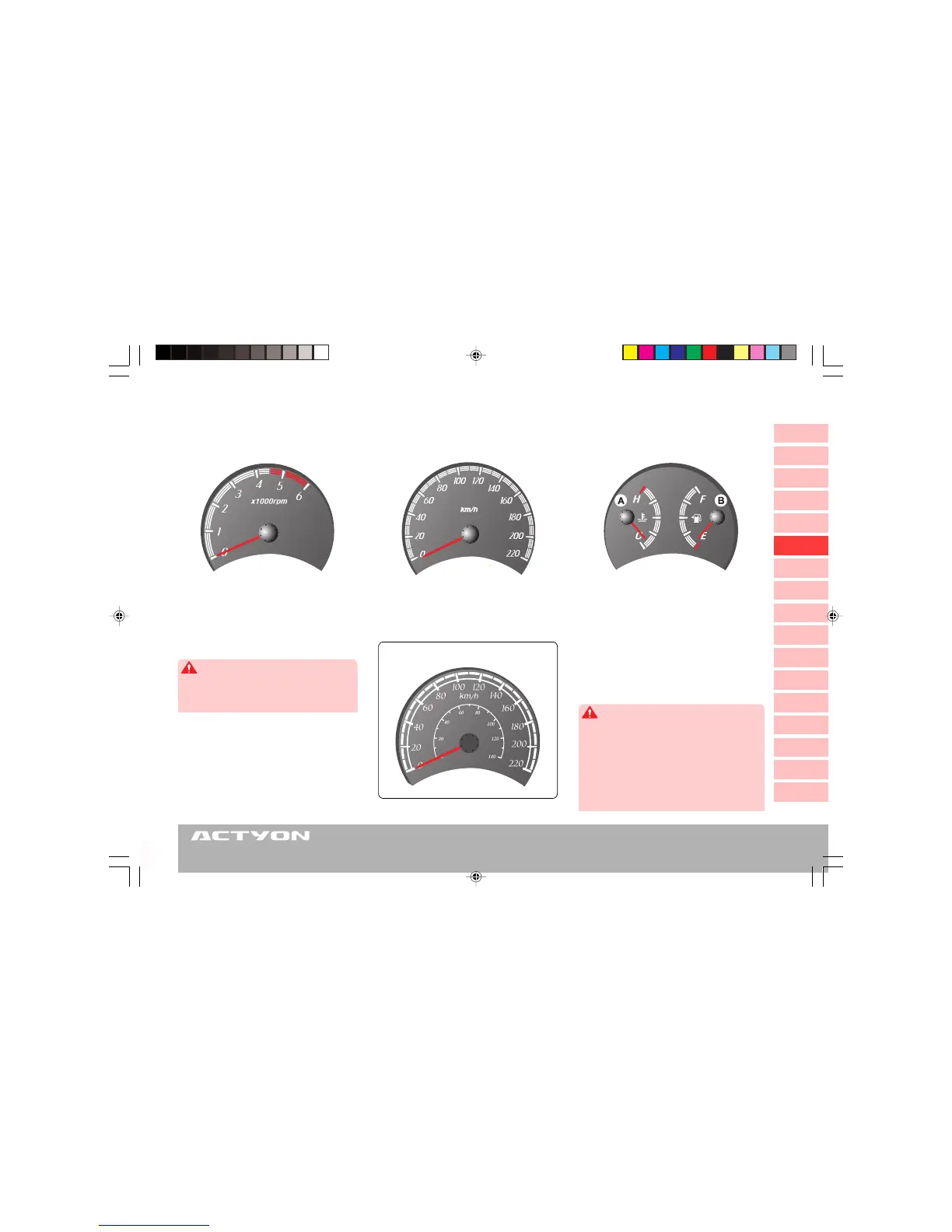

COOLANT TEMPERATURE
GAUGE / FUEL GAUGE
SPEEDOMETERTACHOMETER
Coolant Temperature Gauge (A)
The temperature gauge indicates the
temperature of the engine coolant.
Fuel Gauge (B)
This gauge indicates the level of fuel re-
maining in the fuel tank. Fill up the fuel
tank before the needle reaches
“E”.
The speedometer indicates the vehicle
speed in kilometers per hour (km/h).
The tachometer indicates engine speed
in revolutions per minute. Multiply 1,000
to the current number, then it will be the
current number of engine revolutions.
Specified idle rpm: 780 ± 50 rpm
The engine can overheat.
• If the pointer reaches the red zone, stop
the vehicle.
• Allow engine to cool.
If the engine is overheated, continued op-
eration of the vehicle may seriously dam-
age the engine.
CAUTION
Do not let engine reach excessive speed,
indicated by the pointer being in the red
zone.
WARNING
mile
Diesel
C100_RHD_05-Instrument Panel.p65 2006-05-16, ¿ÀÈÄ 8:293
