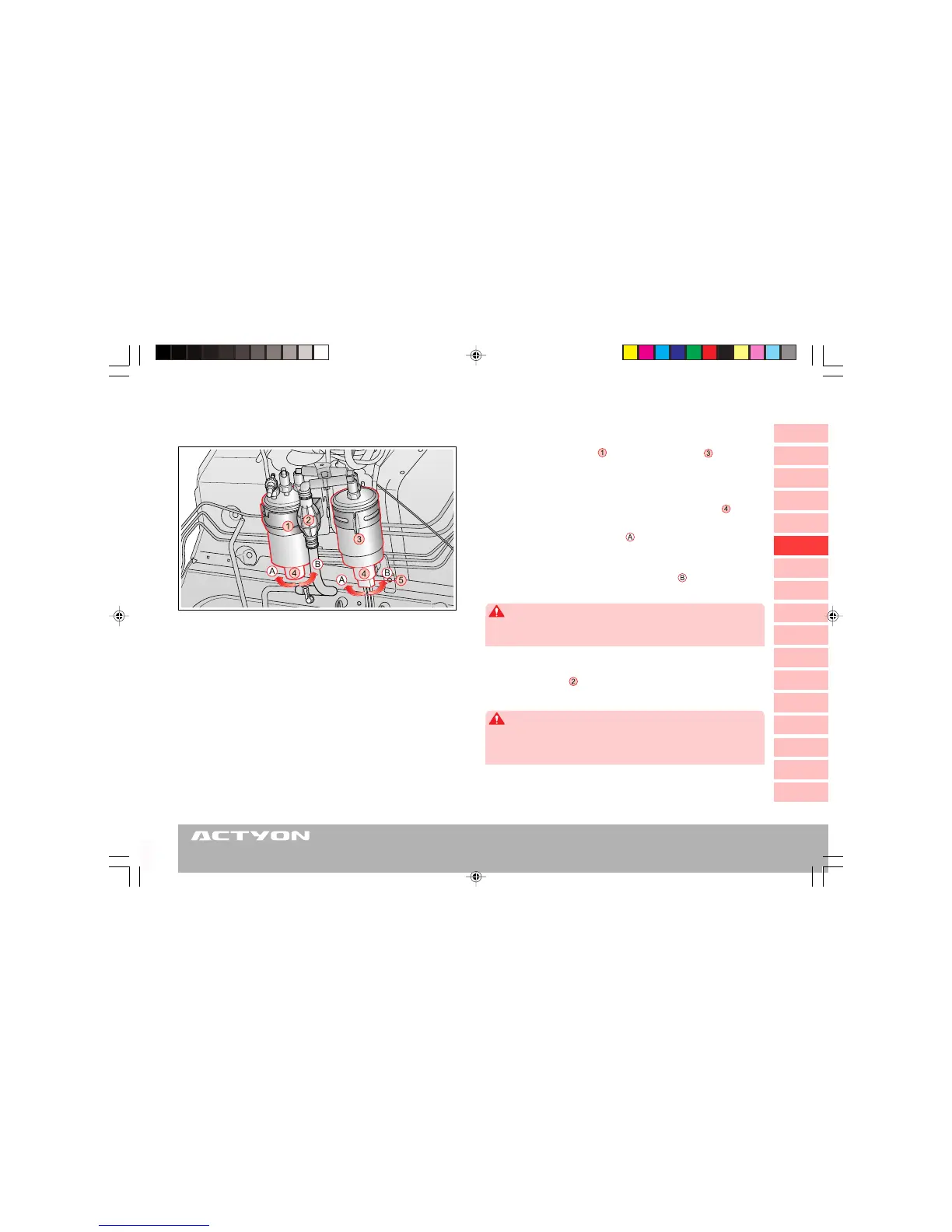

1. Fuel filter
2. Priming pump
3. Water separator
4. Drain plug
5. Connector
A. Opening direction of drain plug
B. Closing direction of drain plug
1. Locate the fuel filter ( ) & water separator ( ) in the en-
gine compartment.
2. Place the water container under the fuel filter & water
separator.
3. Disconnect the connector under the drain plug (
) of the
water separator.
4. Turn two drain plugs to the “
” direction to drain the water.
5. Press the priming pump until all water is drained. After
draining, turn the drain plug until the gasket contact to
the threaded plug hole, then tighten (“ ” direction) it 1/2
turns by hand.
6. Engage the connector under the drain plug and press the
priming pump (
) until it becomes rigid.
7. Close the engine hood and start the engine.
If the priming pump is not properly operated, air may get into the fuel
line. It may cause a starting problem or a fuel system problem. Make
sure to perform the job in step 6.
WARNING
Be careful not to be injured by surrounding equipment during the working
procedures.
CAUTION
