6.6.2 Analog and digital ping

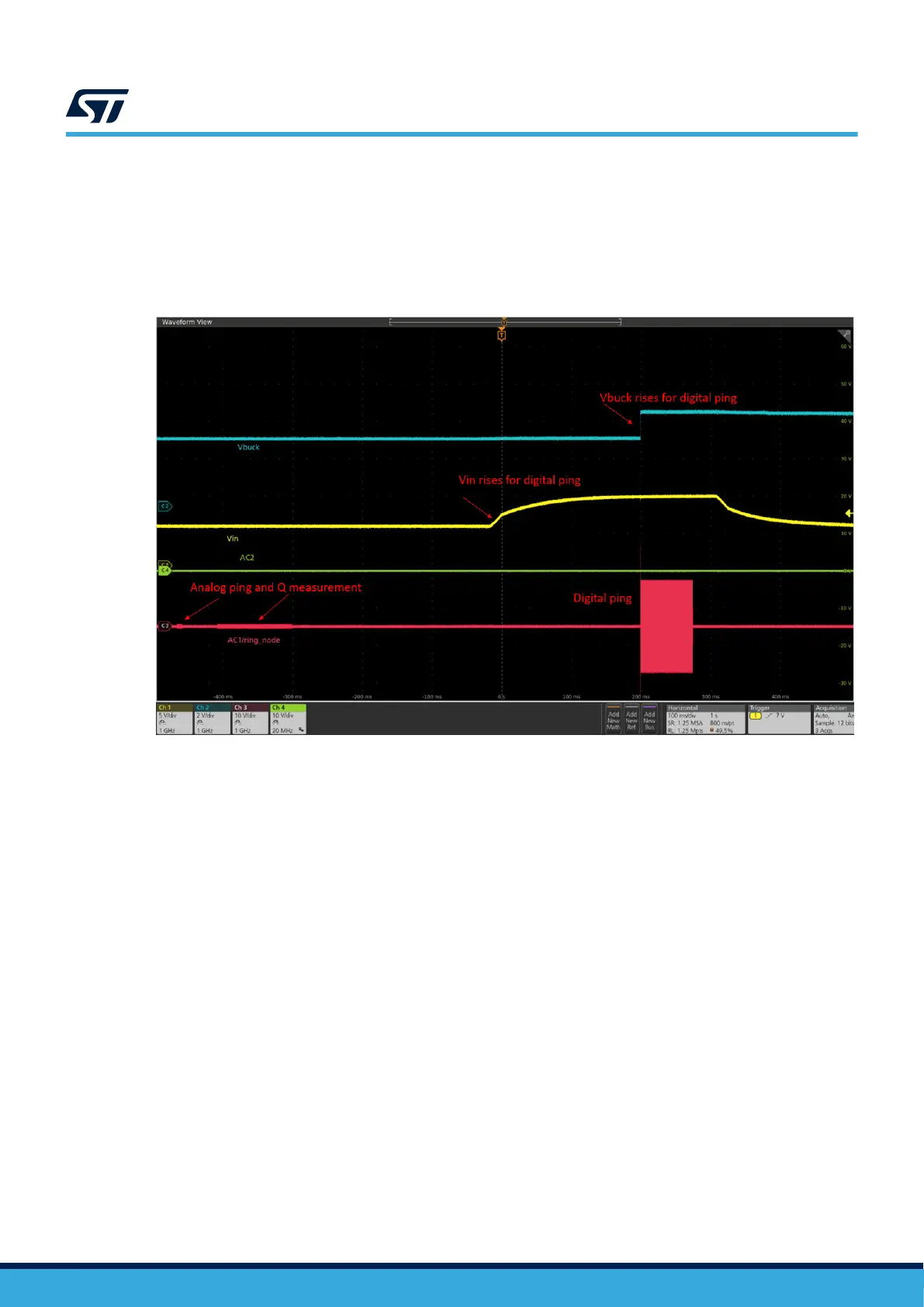

The following figure shows analog ping (presence detection) on AC1. Then a Q factor measurement follows.

After that, the USB PD raises its voltage from 5 V to 9 V, the Vbuck is raised to 5 V and finally a digital ping is

executed.

Note: AC2 is inactive as the ping is performed in half bridge mode.

Figure 41. Analog and digital ping

UM3231

STEVAL-WBC2TX50 description

UM3231 - Rev 1

page 59/84
