6.6.6 Thermal performance

Thermal performance of the board with a 50 W load (20 V/2,5 A on the Rx side) after 5 minutes of continuous

operation. The coils are centered with 3 mm z-distance.

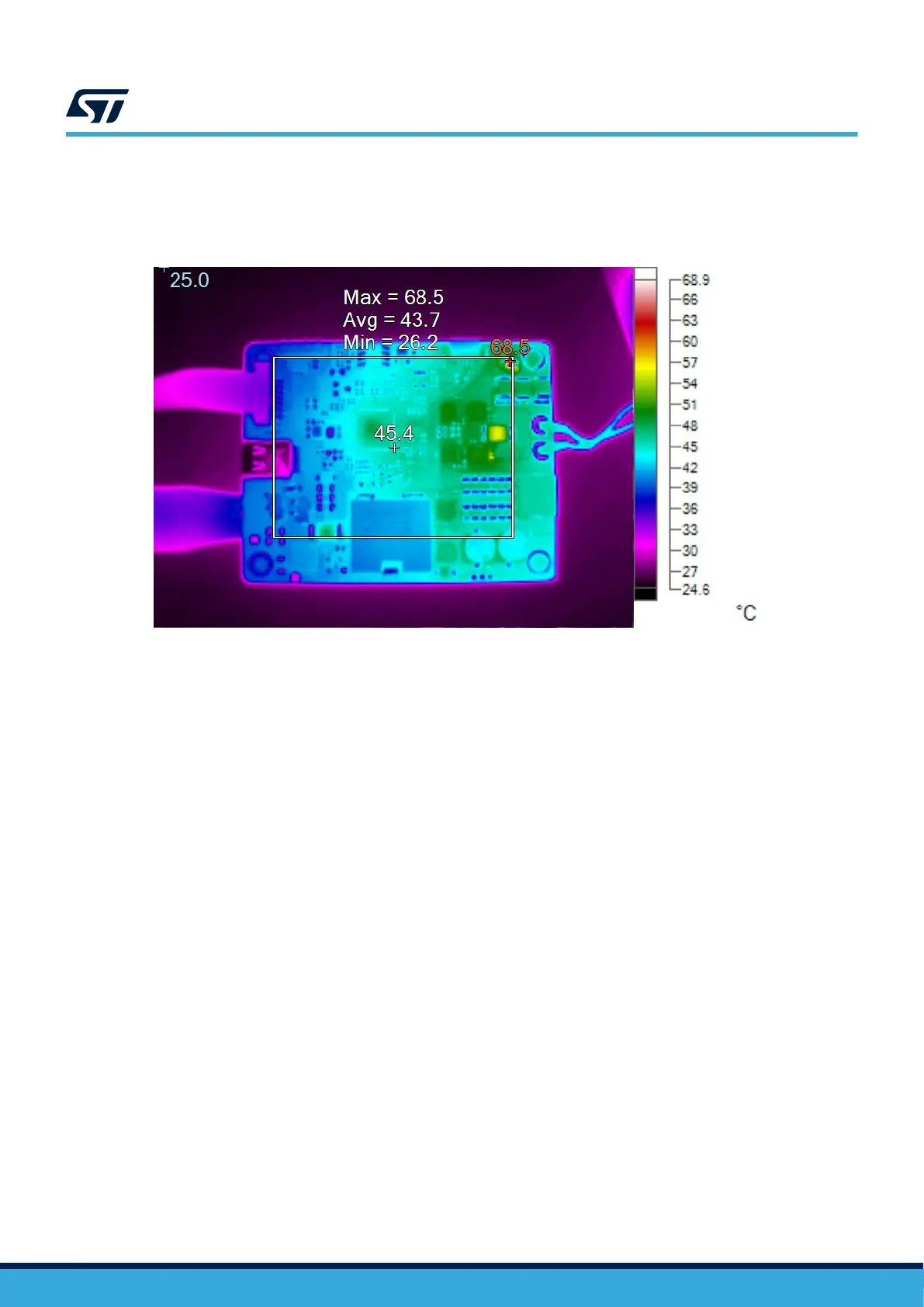

Figure 47. Thermal performance

UM3231

STEVAL-WBC2TX50 description

UM3231 - Rev 1

page 63/84
