7.2.2 Ground plane on Layer 4

The ground plane integrity on layer 4 shall be maximized as much as possible. Therefore, try to limit the number

of tracks routed on this layer.

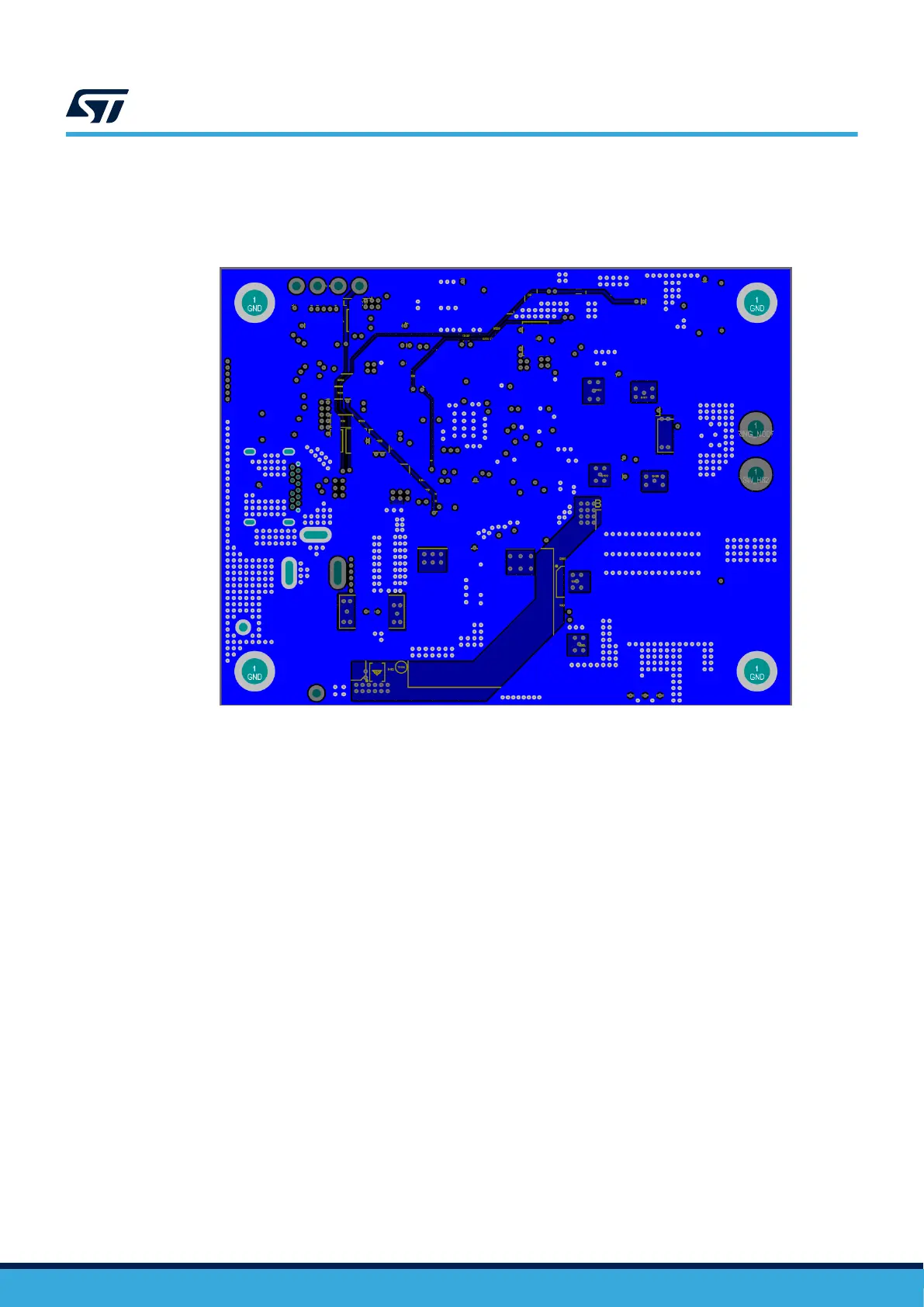

Figure 49. Layer 4 GND

UM3231

Designing a wireless power transmitter based on STEVAL-WBC2TX50 evaluation board

UM3231 - Rev 1

page 65/84
