7.2.3 Board input layout

USB Type-C® and barrel jack connectors are placed closely together. The TVS diodes and the input capacitors

are placed close to the input connectors and the layer 1 ground plane is connected to the other ground planes

through multiple vias.

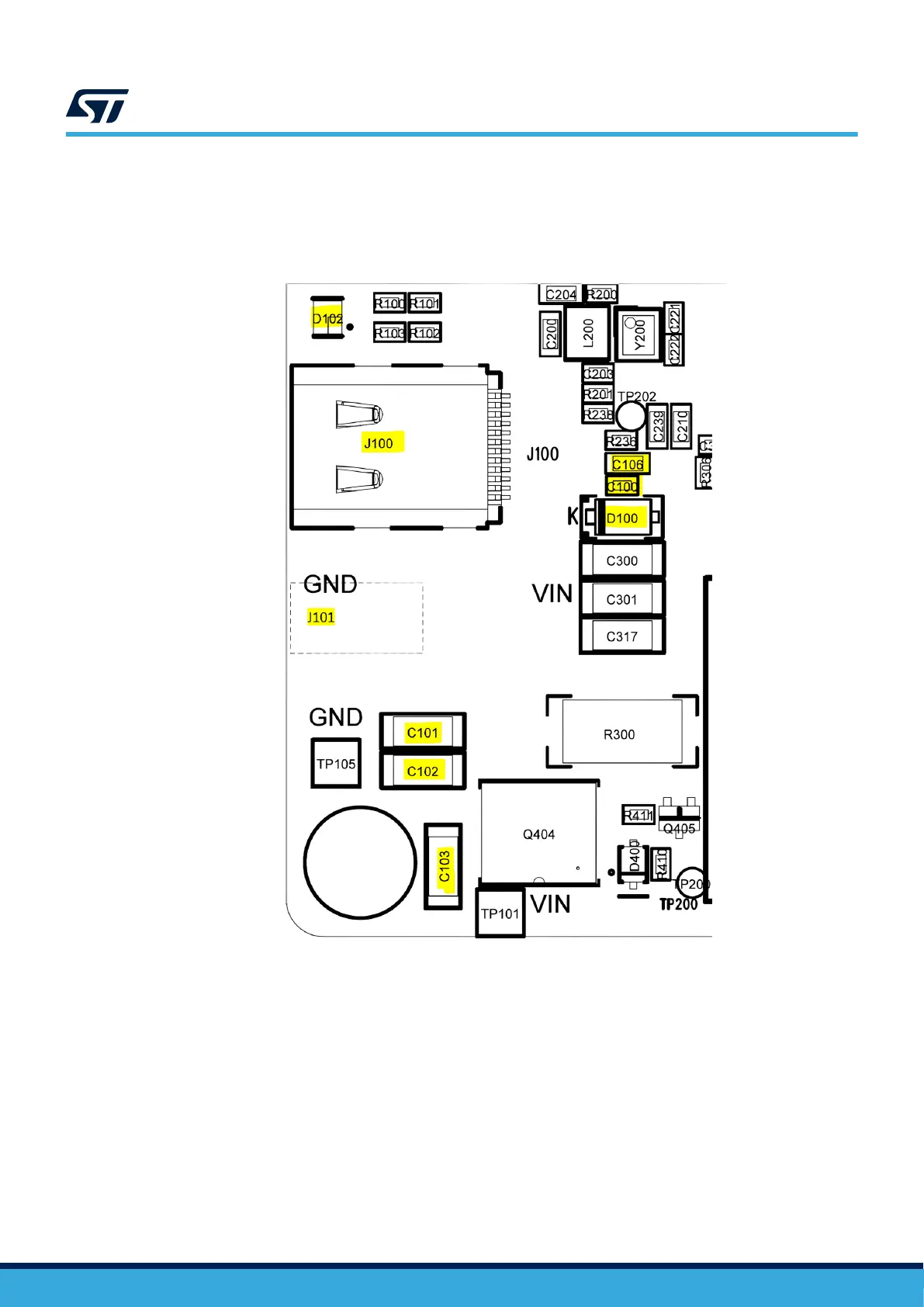

Figure 50. Placement of input connectors, filtering, and protections

Note: Barrel jack connector J101 is placed on the bottom side of the board.

UM3231

Designing a wireless power transmitter based on STEVAL-WBC2TX50 evaluation board

UM3231 - Rev 1

page 66/84
