ST STEVAL-WBC2TX50 - Figure 43. Setup for Offset Test; Figure 44. X-Axis Offset Impact on Efficiency

84 pages

Save Page as PDF

To Next Page

To Previous Page

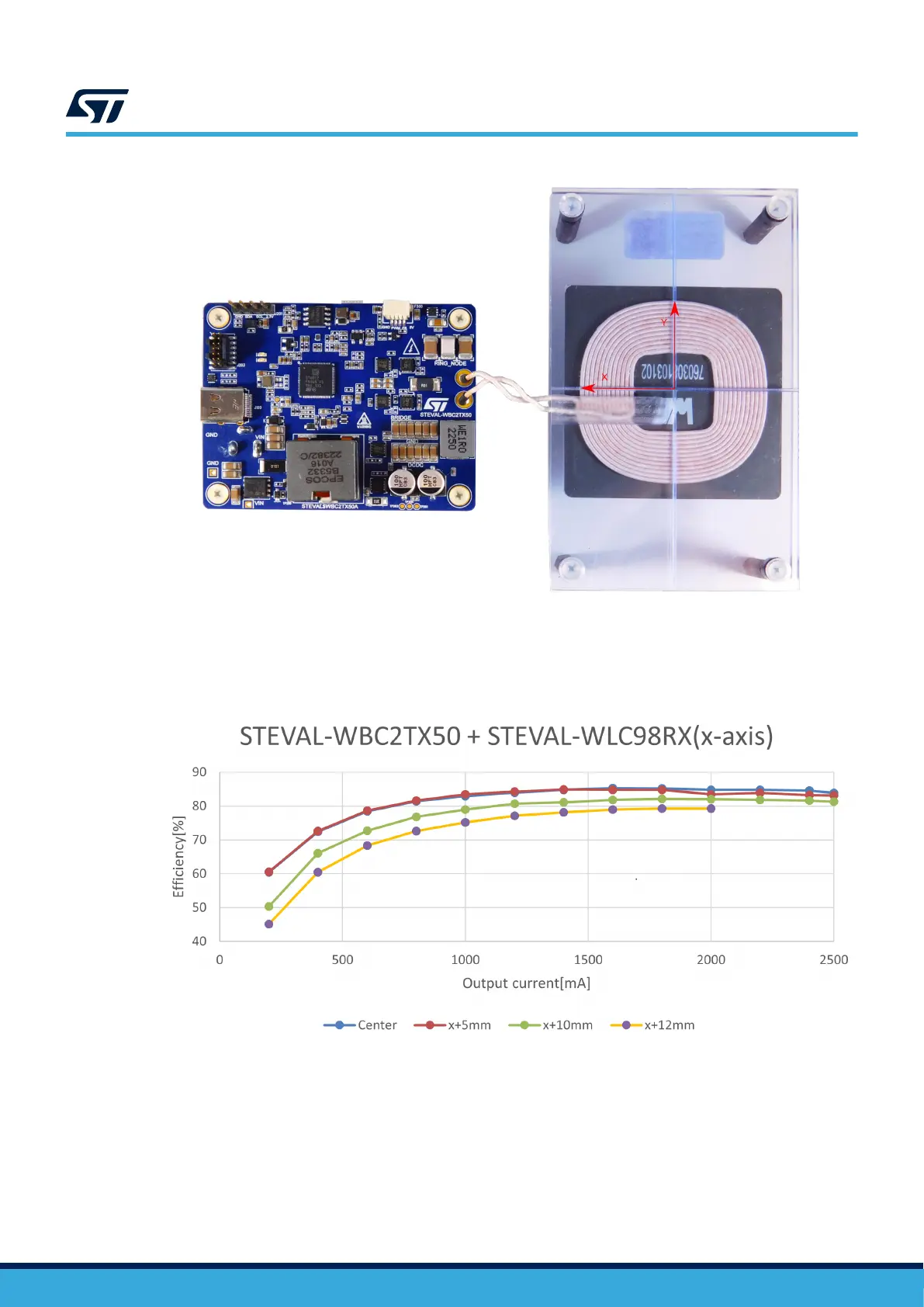

Figure 43. Setup for offset test

The maximum efficiency achieved with this setup was 85.25%.

Efficiency curves for various misalignments in the X and Y axis are shown in the figures below:

Figure 44. X-axis offset impact on efficiency

UM3231

STEVAL-WBC2TX50 description

UM3231 - Rev 1

page 61/84
