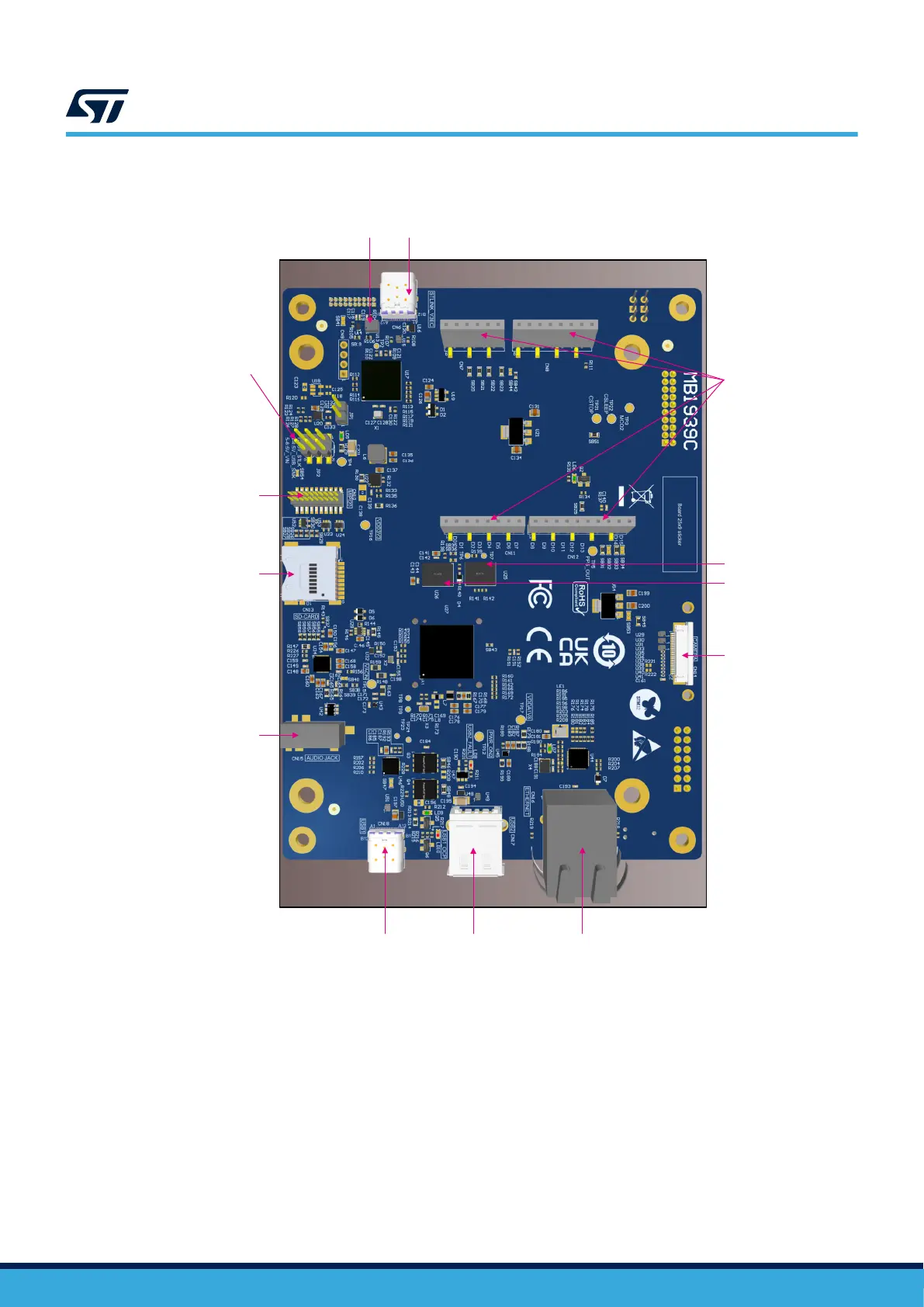

Figure 5. STM32N6570-DK PCB layout bottom view
DT59550V1
USB2
USB Type-A
(CN17)
Ethernet
RJ45
(CN16)
Camera connector
(CN14)
MEMs microphone
(U13)
STLINK-V3EC USB Type-C
®
(CN6)
PSRAM
(U26)
Flash memory
(U25)
ARDUINO
®
connectors
(CN7, CN8, CN11,
and CN12)
USB1
USB Type-C
®
(CN18)
Audio jack
(CN15)
SD card socket
(CN13)
MIPI20
(CN10)
Power supply
select
(JP2)
UM3300
